2D Truss Analysis: Comprehensive Software for Engineering Analysis

Looking to download powerful engineering software for structural analysis? 2D Truss Analysis is an intuitive Windows application designed specifically for engineers who need to perform detailed static or dynamic analysis of plane frames and trusses. This professional tool combines powerful analytical capabilities with a user-friendly interface, making complex structural calculations accessible and efficient.

The software provides a comprehensive solution for engineering professionals who need reliable truss analysis capabilities without overwhelming complexity. Whether you're working on simple beam structures or complex frame systems, this application delivers accurate results in a clean, organized environment.

Key Features and Capabilities

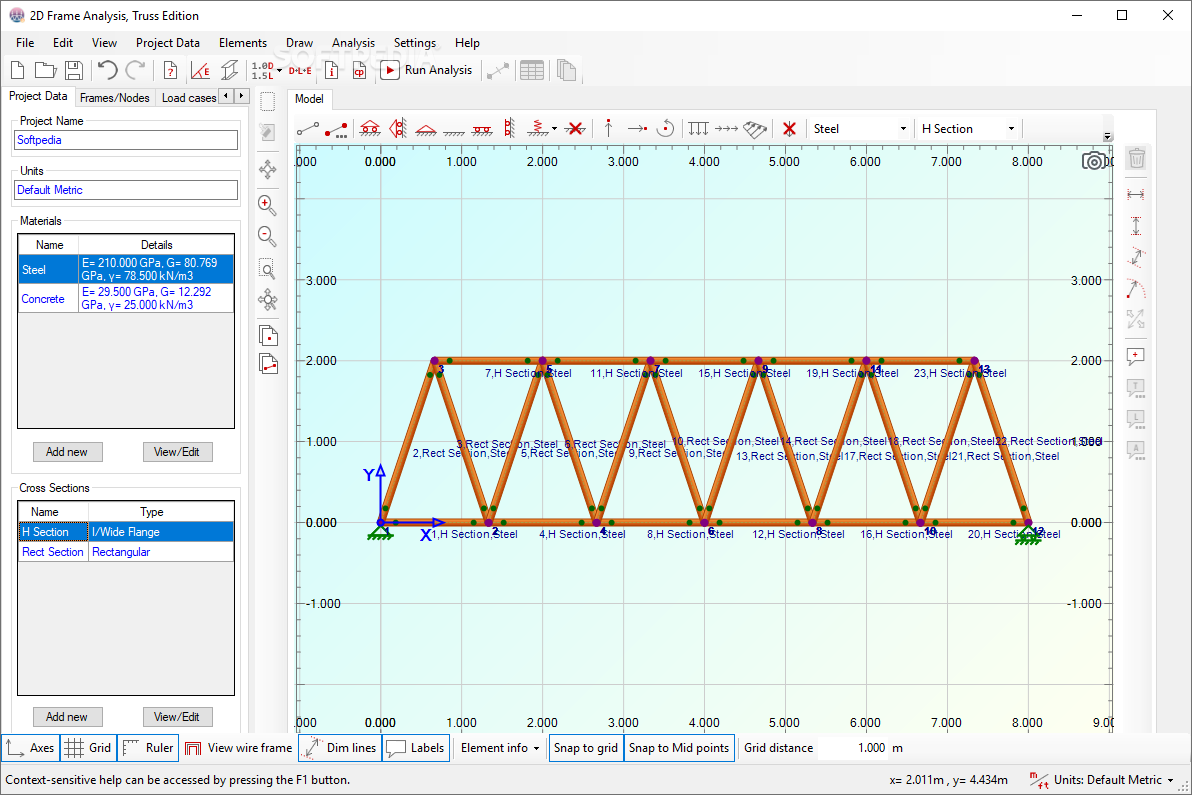

When you download 2D Truss Analysis, you gain access to a versatile engineering tool that offers customization options for material properties, allowing you to specify critical parameters including:

• Material name designation


• Modulus of elasticity values


• Weight specifications


• Thermal coefficient settings


• Material type selection (steel, concrete, wood)

The structural analysis software enables precise section configuration through intuitive input fields. Engineers can define new sections by entering specific values for:

• Cross section area


• Moment of inertia


• Section height


• Custom section naming

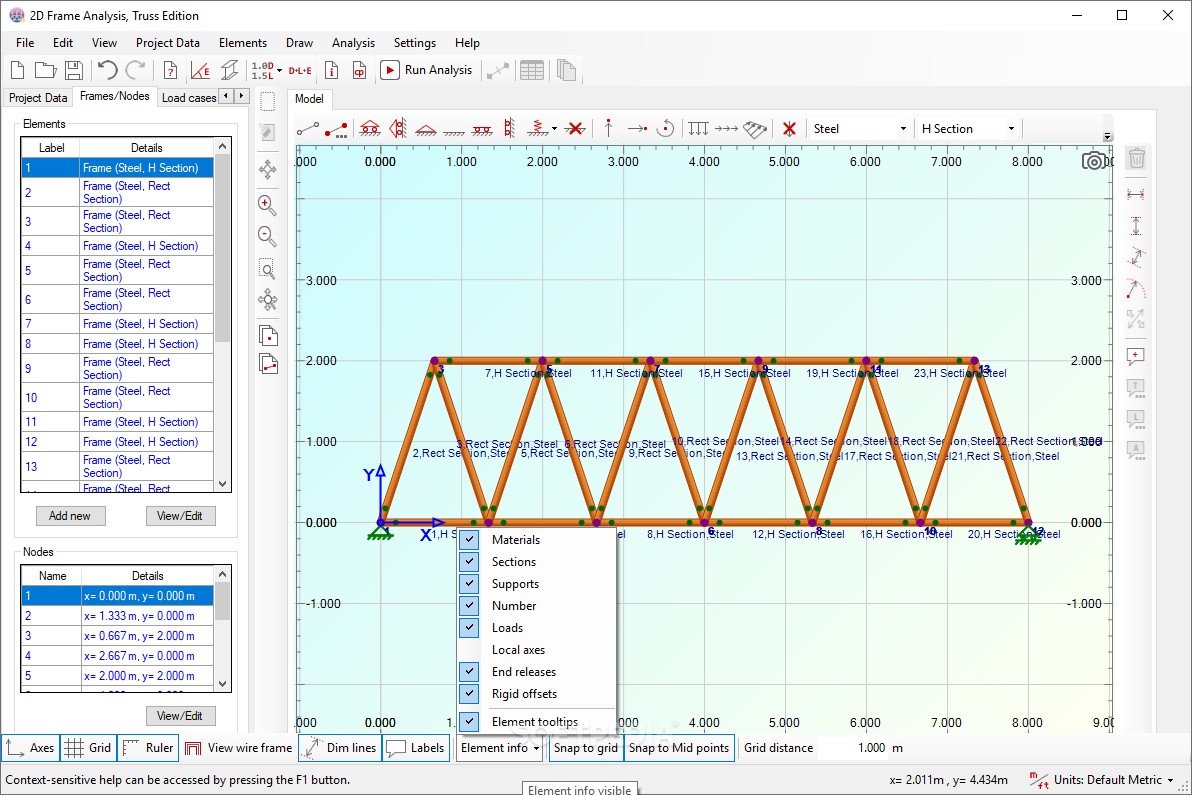

Geometry and Node Management

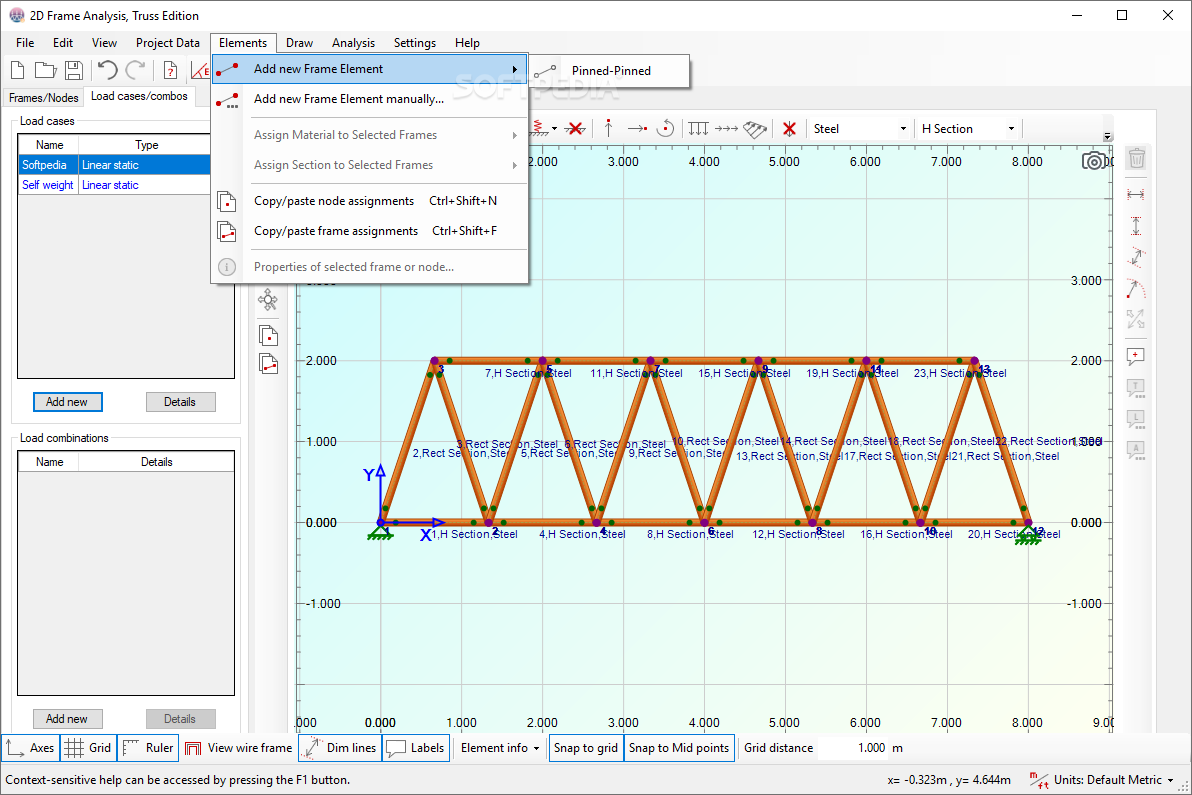

2D Truss Analysis excels in its approach to frame and node management. The application allows for detailed geometry definition for both starting and ending nodes, streamlining the process of structural modeling. After creating frames, the software automatically generates corresponding nodes, saving valuable time during project setup.

The truss analysis tool provides complete control over node parameters, including:

• Precise coordinate selection


• Initial displacement configuration


• Velocity settings for dynamic analysis


• Support condition specifications

Customization and Visualization Options

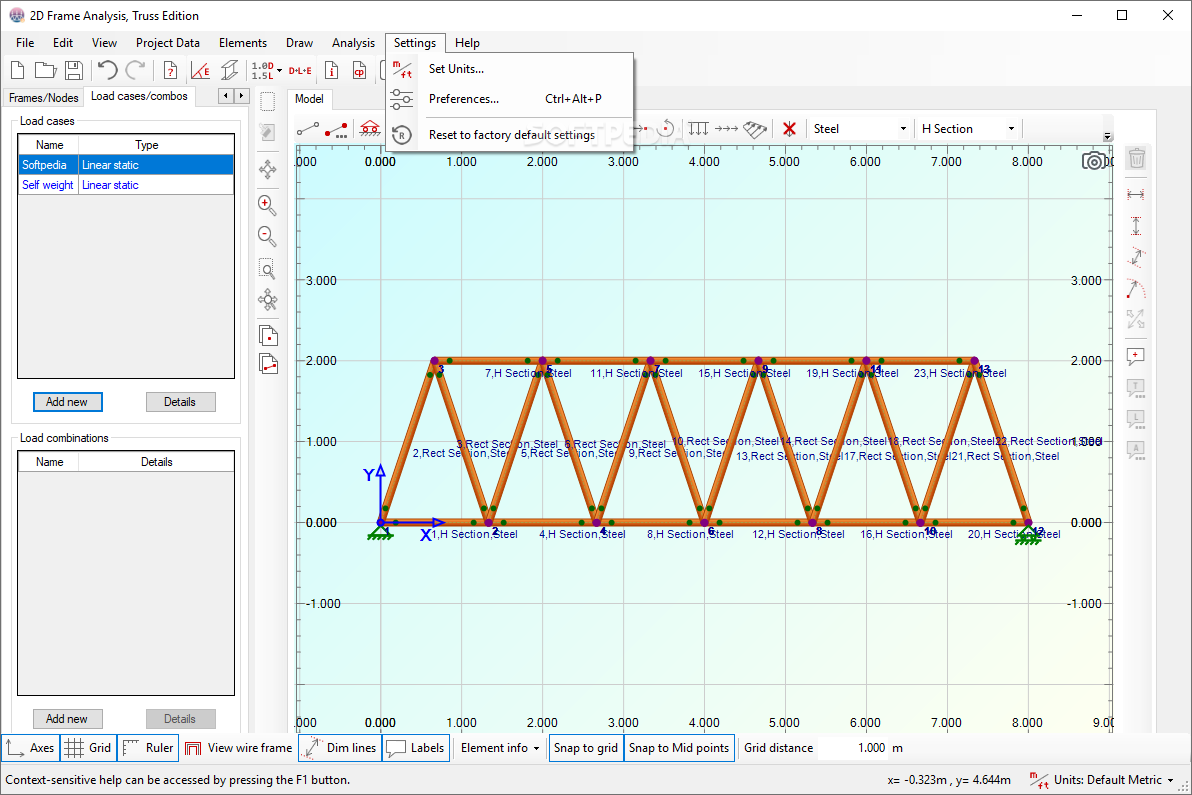

When you download and install this engineering software, you'll appreciate the extensive customization options that enhance the analysis experience. Users can:

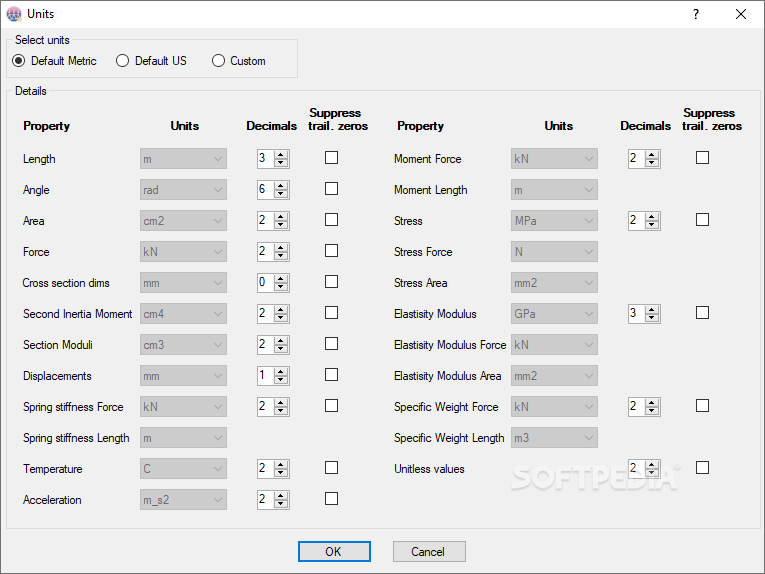

• Select preferred measurement units (meters, feet, yards)

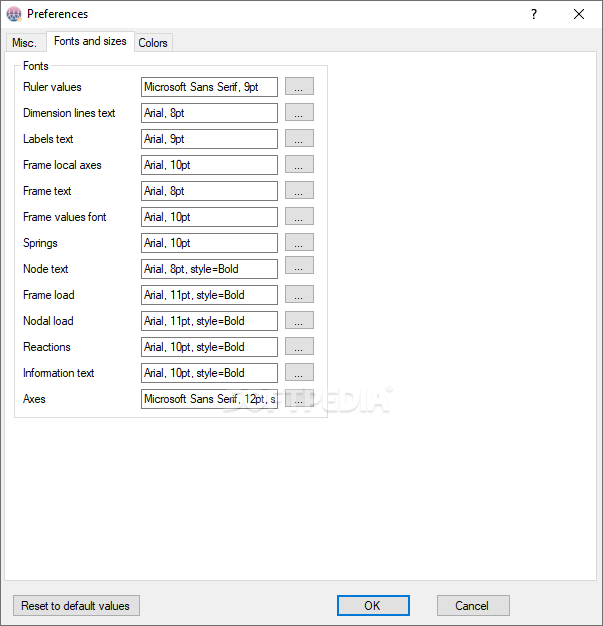

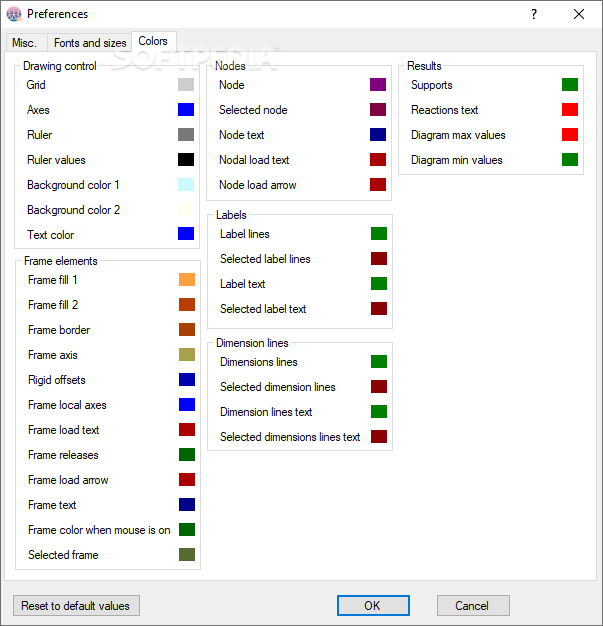

• Customize visual elements through color coding for background, grid, node labels, supports, reactions, and nodal loads


• Define time step numbers and periods for temporal analysis


• Configure dynamic analysis parameters (damping coefficient ksi, mode number selection, eigenvalue precision, and iteration limits)

Comprehensive Analysis Representation

The truss analysis software excels in data visualization, representing critical information through clear and informative:

• Axial force diagrams


• Shear force diagrams


• Moment diagrams

Results are presented in a structured format, providing comprehensive data on nodal analysis including displacement values, rotation measurements, and reaction forces. The frame element analysis component delivers detailed information about edge node displacements and internal forces acting on node edges.

Dynamic Analysis Capabilities

For engineers requiring dynamic structural analysis, the software offers automatic graph generation capabilities. These graphs can be customized to display:

• Nodal displacements over time


• Reaction force variations


• Element internal force changes


• Frequency response patterns

User-Friendly Interface and Export Options

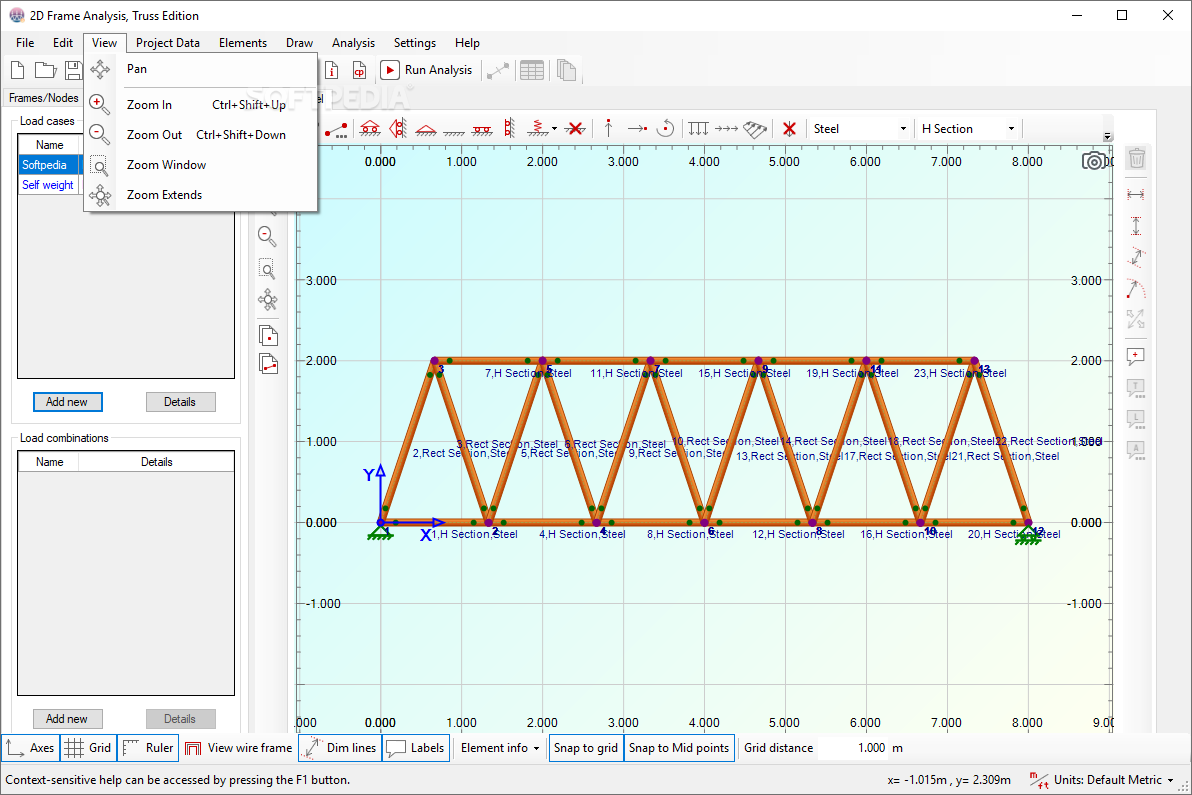

Navigating complex structural models is made simple with intuitive zoom functionality that allows users to focus on specific areas of interest within the working environment. The engineering analysis software supports professional documentation through export capabilities to industry-standard formats:

• RTF (Rich Text Format) for text-heavy reports


• XLS spreadsheet format for data-intensive analysis

Technical Specifications

• Platform: Windows operating systems


• Analysis Types: Static and dynamic analysis


• Structure Types: 2D plane frames and trusses


• Material Library: Steel, concrete, wood with customization options


• Visualization: Diagram generation for forces and moments


• Export Formats: RTF, XLS


• Interface: Grid-based with customizable visual elements

Conclusion

2D Truss Analysis stands as a reliable and efficient tool for engineering professionals who need accurate structural analysis capabilities. The software combines powerful analytical features with an accessible interface, making it suitable for both educational purposes and professional engineering applications.

Download 2D Truss Analysis today to enhance your structural engineering workflow with precise calculations, clear visualizations, and comprehensive reporting capabilities. This dependable application will help you perform both static and dynamic truss analysis with confidence and efficiency.
