BAP - Beam Analysis Program

BAP - Beam Analysis Program is a super helpful tool for construction engineers and mechanics. If you’re looking to calculate and analyze indeterminate beams, this software makes it easy!

Simple Interface for Quick Results

The user interface of BAP is simple but effective. It’s designed to help you get the results you need without any fuss. You’ll find everything laid out nicely so you can focus on your work.

Designing Your Beam

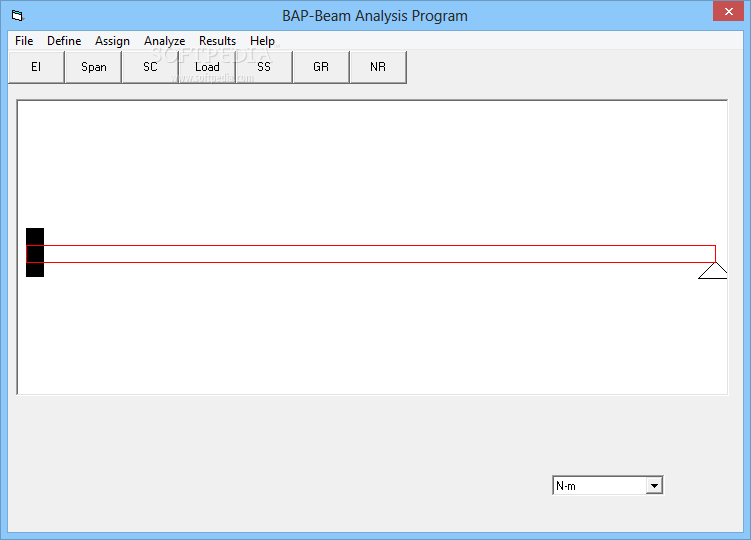

When you open BAP, the main window shows a sketch of the beam you're working on. You can choose your measurement unit from a handy drop-down menu right there!

Inputting Your Data

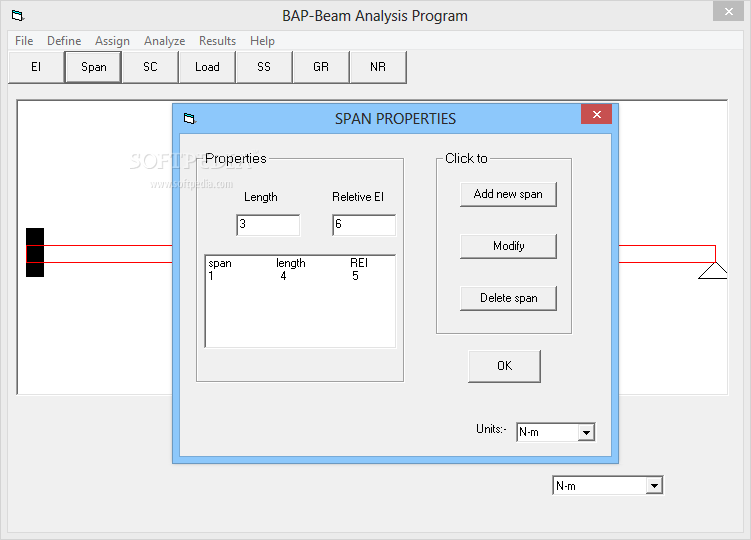

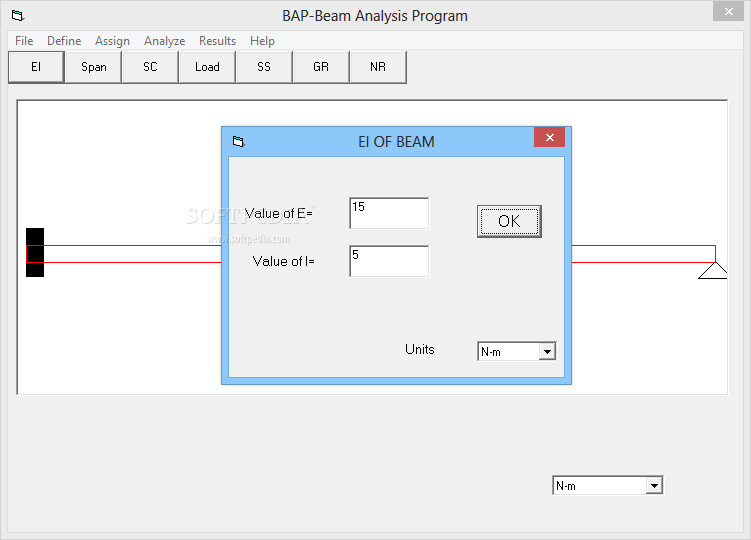

Before diving in, you'll need to enter some details about your beam. Start with the elastic modulus and area moment of inertia, then move on to the span, length, and relative bending stiffness.

Selecting Support Conditions

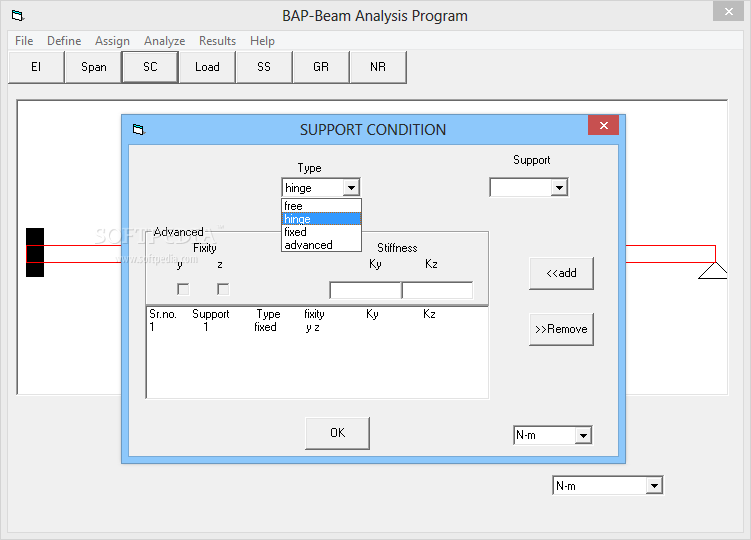

Next up is configuring the support condition. You can pick from options like ‘Free’, ‘Hinged’, ‘Fixed’, or even ‘Advanced’. Depending on what you choose, you can have either one or two support elements.

Loading Information

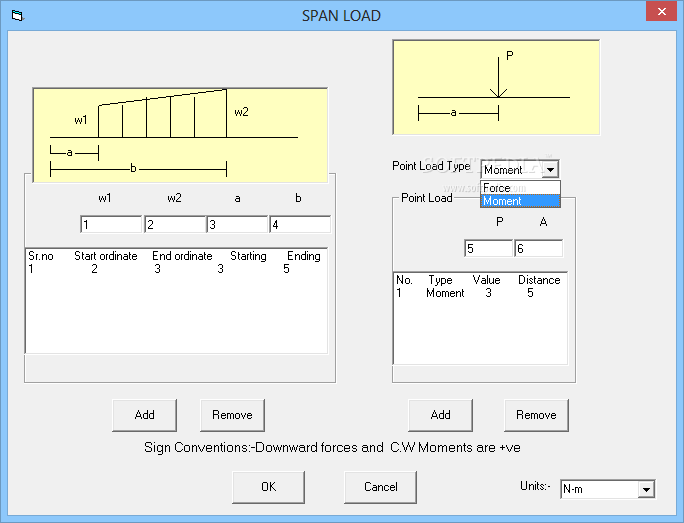

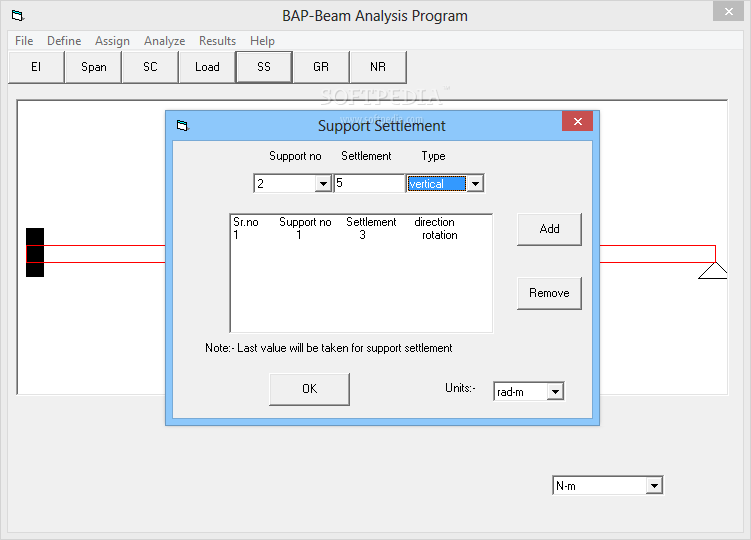

Now it's time to enter the load value along with the type of point load you're using. Don’t forget about support settlement; you can choose between vertical or rotation here too!

Analyzing Your Beam

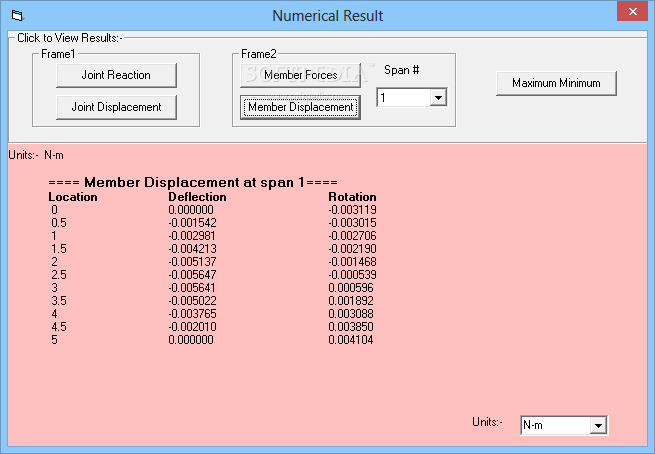

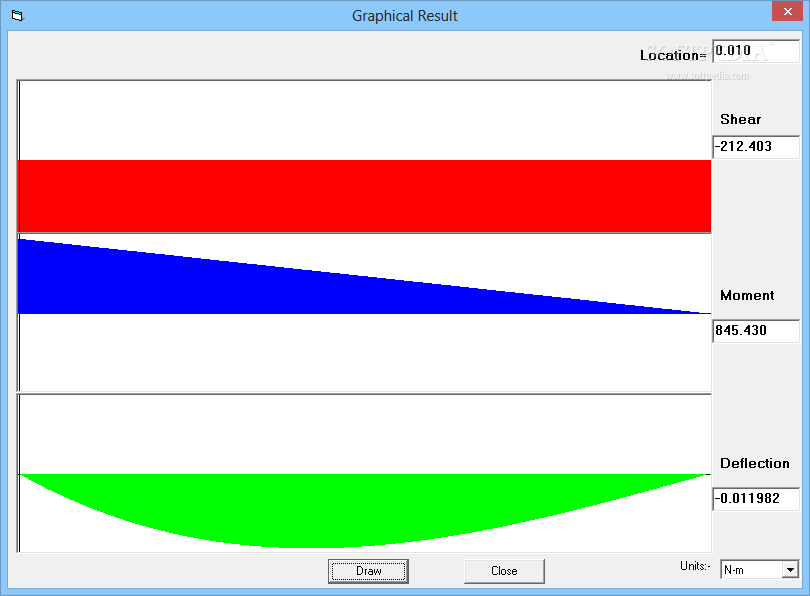

Once you've filled in all that information about your beam, just hit that big ‘Analyze’ button! You'll get both a ‘Graphical Result’ and a ‘Numerical Result’. These include key details like ‘Joint Reaction’, ‘Joint Displacement’, ‘Member Forces’, and ‘Member Displacement’. Plus, it gives you minimal and maximal values for important things like 'Shear Force', 'Bending Moment', and 'Deflection'.

Your Go-To Tool for Construction Projects

In short, BAP - Beam Analysis Program is an awesome tool that provides a straightforward way to get essential values for beams. It’s perfect for anyone working in construction! For more info or to download, check out this link!
