CableCalc

CableCalc is a super handy app that helps you crunch numbers related to the cable and wiring world. Whether you're a manufacturer, a worker, or just someone at home trying to figure things out, this tool has got your back! It includes all sorts of formulas to help you calculate areas, weights, resistivity, and more.

Easy-to-Use Interface

The best part? Its multiple-tabbed interface makes it easy for everyone to find what they need quickly. This means whether you're just starting or you've been around the block a few times, you'll feel right at home using it.

Wire Types and Measurements

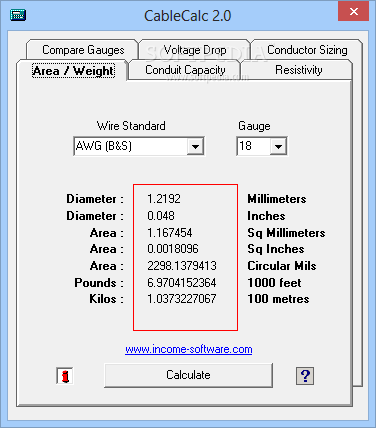

CableCalc can do some pretty cool stuff. It calculates the diameter ratio (in millimeters and inches), the area, and even the weight (in pounds and kilograms) for different wire types like American Wire Gauge (AWG), Birmingham Wire Gauge (BWG), or British Standard Wire Gauge (SWG). Pretty neat, right?

Conduit Capacity Calculator

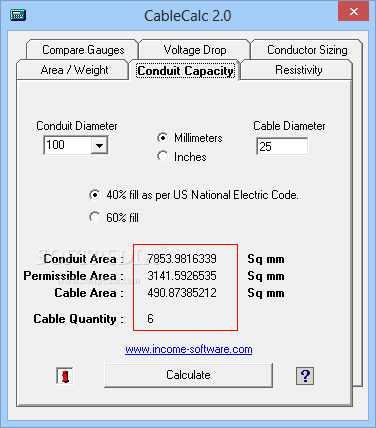

This application also features a built-in conduit capacity calculator based on National Electric Code Standards. It helps you figure out how many electrical wires can fit into a conduit based on their diameters. Very useful if you're working on projects!

Determine Cable Resistivity

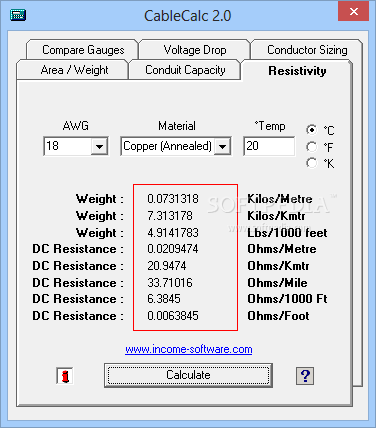

You can even determine cable resistivity (DC resistance in Ohms per meter) with CableCalc! It supports many materials too—like copper, aluminum, gold, iron, platinum, mercury, Ni-Chrome and more. So whatever you're working with, there's a good chance it’s covered.

Gauge Comparisons & Voltage Drops

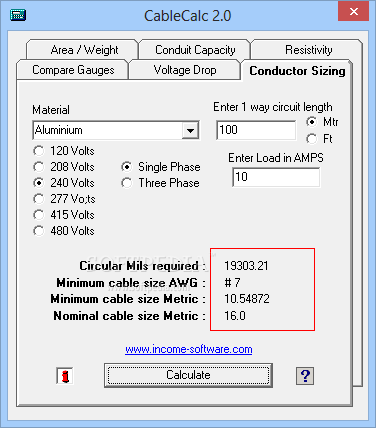

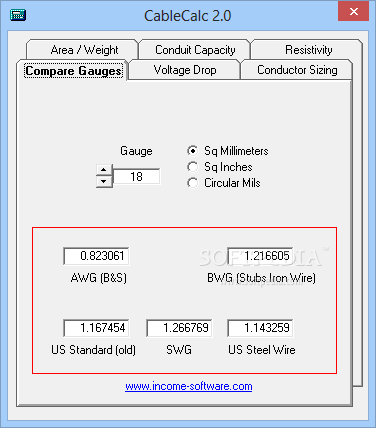

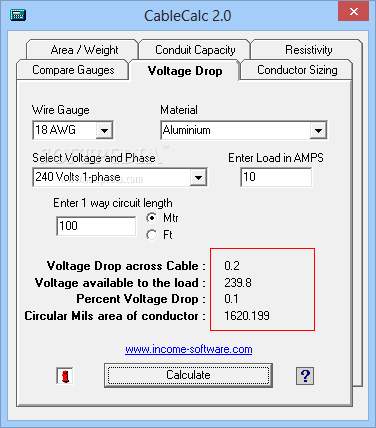

This program is also great for comparing gauges. You can calculate the right conductor size and find out how much voltage drops over different wire gauges. This depends on several factors: wire material, voltage level, circuit length in one direction, and wire load. Once you fill in those details, CableCalc gives you the voltage drop along with the conductor area!

A Must-Have Tool

CableCalc comes packed with loads of formulas for calculating different wiring parameters making it an essential tool for anyone in engineering or electrical work. Just remember to double-check your results against official standards before putting them into practice!

If you're ready to dive into all these calculations with ease,download CableCalc here!
