CADbro

CADbro is an awesome software designed just for the engineering world. It helps you view, annotate, and analyze all the data related to tools and components that will come together in a larger assembly. Pretty handy, right?

Quick Setup for CADbro

The setup process is super easy! It might take a couple of minutes, but you just have to follow a few simple steps. First things first, you'll need to register. Don't worry; this part only takes a few seconds depending on how fast you type.

User-Friendly Interface

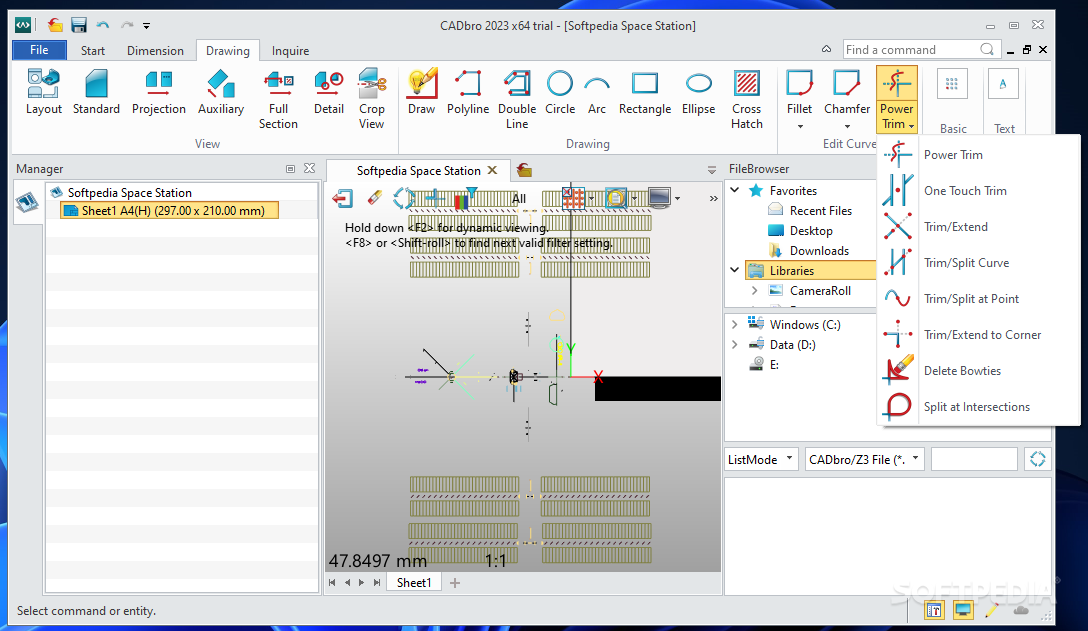

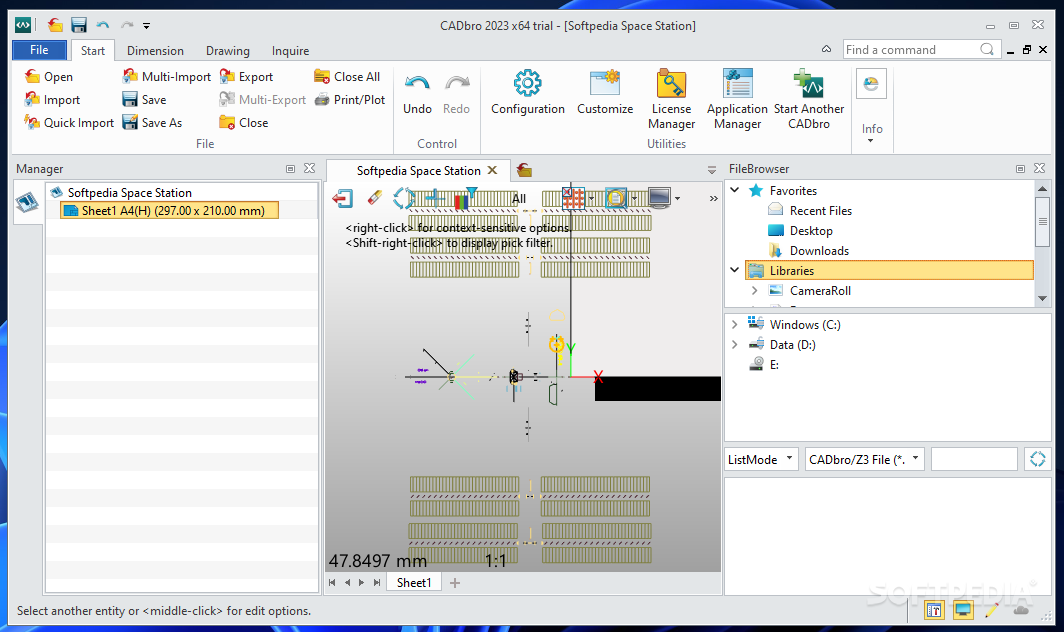

Once you're in, you'll love the fresh and appealing interface. It's neatly organized with multiple ribbons that make it easy to access everything you need. The main layout includes two panels: one where you can preview your work and another where you can adjust settings as needed.

Advanced Analysis Tools

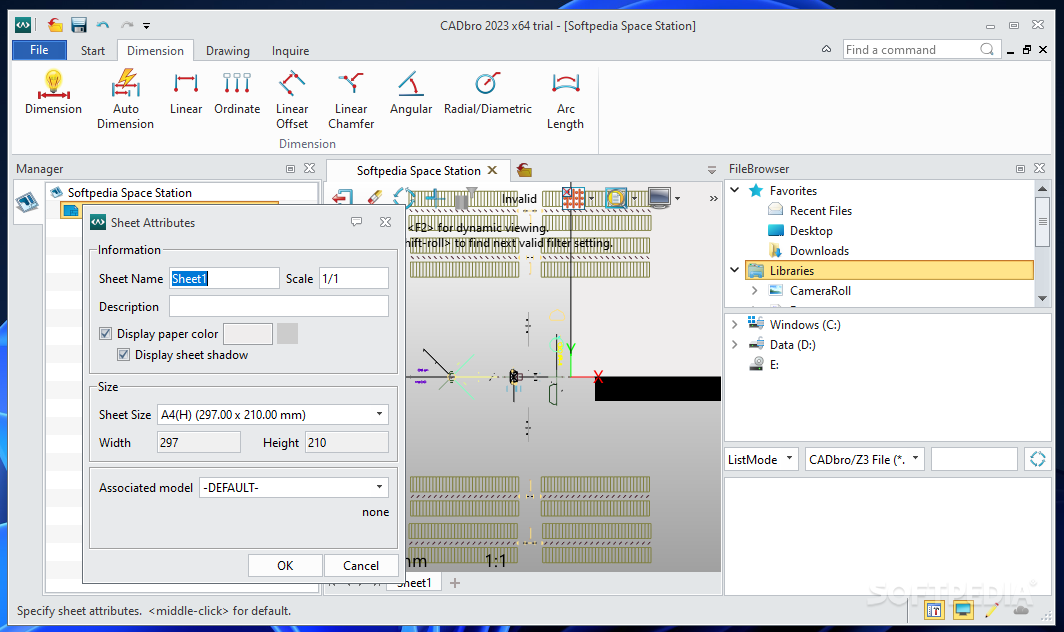

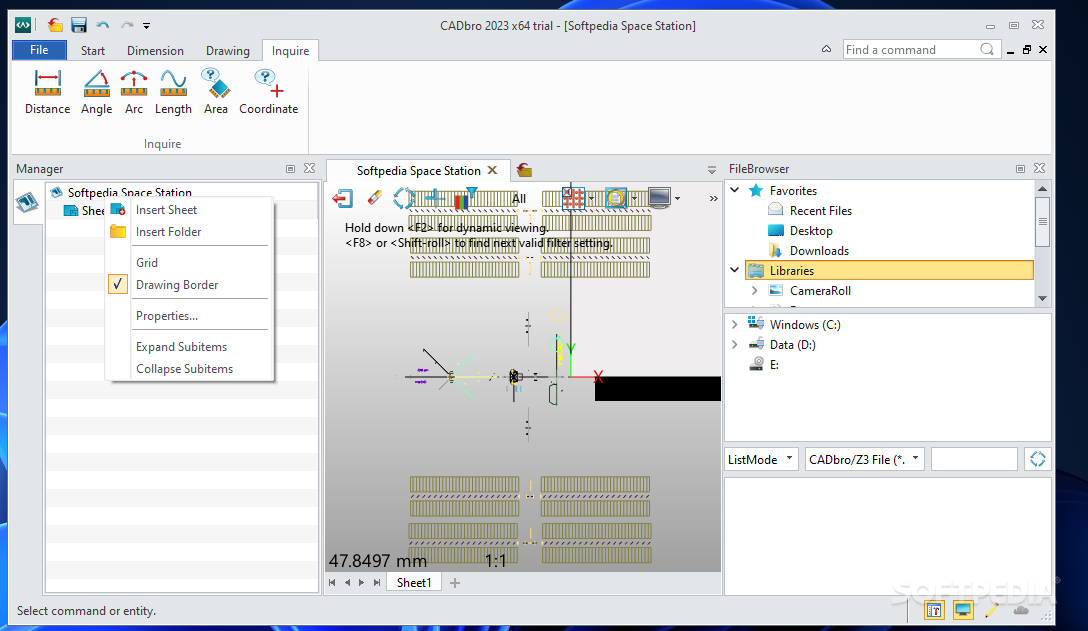

The best part about CADbro is all the tools it gives you for detailed analysis and 3D annotations. You can easily add or edit dimensions like distance, radius, coordinates, text, and symbols related to different features and surfaces. It's super useful!

Check Product Consistency

A standout feature of this software is its ability to verify how well the product's structure and assembly hold up. You can run simulations to check properties like mass, area, volume, thickness of walls, dynamic sections, draft angles—you name it! This way, you can spot potential errors early on and save money during manufacturing down the line.

Compatibility with CAD File Formats

CADbro works with most CAD file formats too! Whether it’s Parasolid, IGES, STL, 3DXML, Catia V4 & V5, VRML, SolidEdge or SolidWorks—you’re covered! So if you're diving into construction engineering and want to make sure every component fits perfectly in your assembly to avoid future mechanical issues or other problems—give CADbro a try!
