Condenser Design

Condenser Design is a handy software that helps you tackle complex thermal analysis for shell and tube condensers. It's pretty much what it sounds like!

What Can You Do with Condenser Design?

With Condenser Design, you can easily design various types of condensers, including reflux, horizontal shell side, horizontal tube side, vertical shell side, and vertical tube side condensers. It covers all the bases!

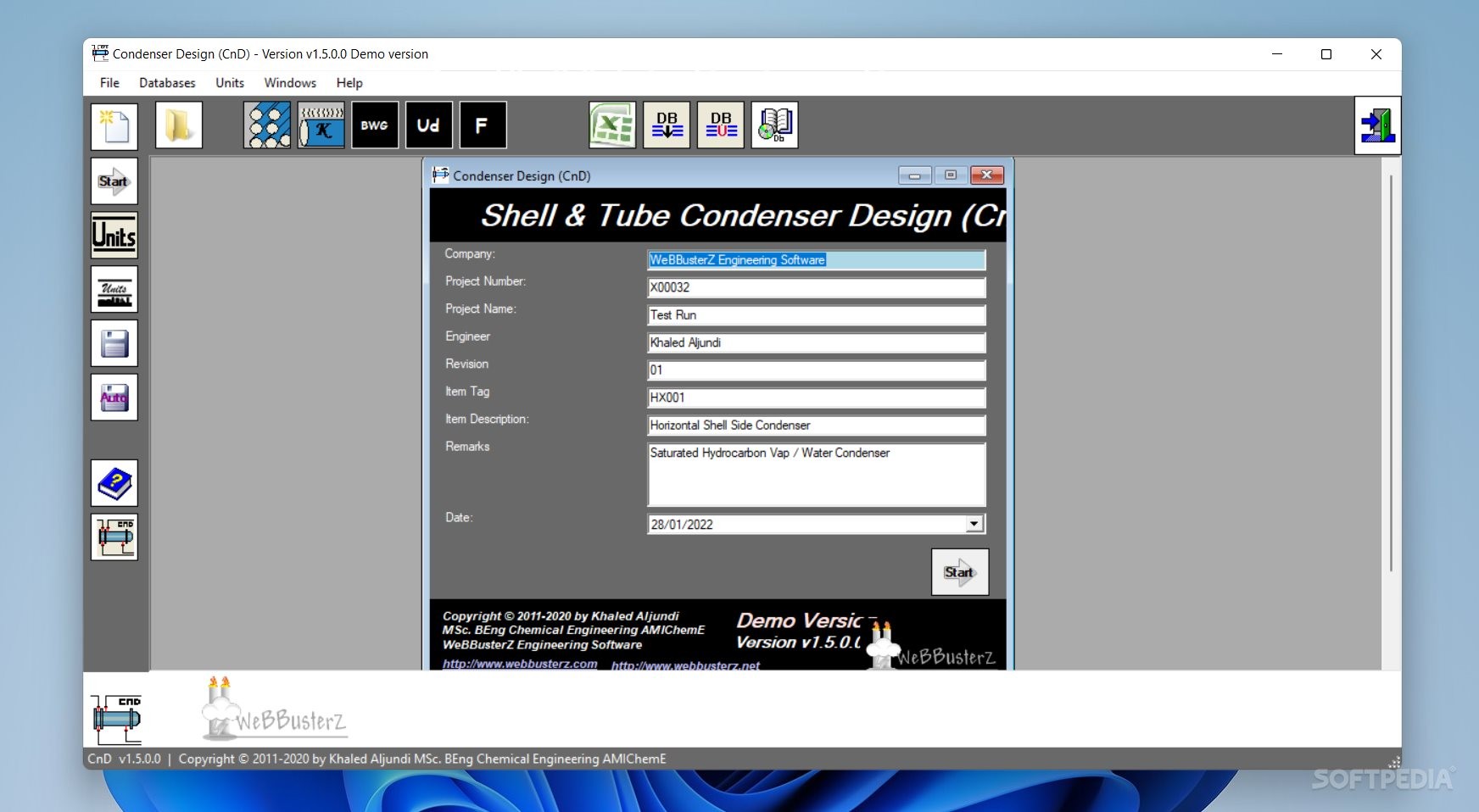

User-Friendly Layout

The look of Condenser Design isn't flashy—it's pretty straightforward, just like you'd expect from this type of software. The main window is organized well and gives you quick access to the main features through its useful toolbar.

A Bit of Thermodynamics Knowledge Needed

Now, here’s a heads-up: even though the app is easy to use, having a basic understanding of thermodynamics will make your life easier when working with it. It’s not rocket science, but some background knowledge helps!

Starting Your Project

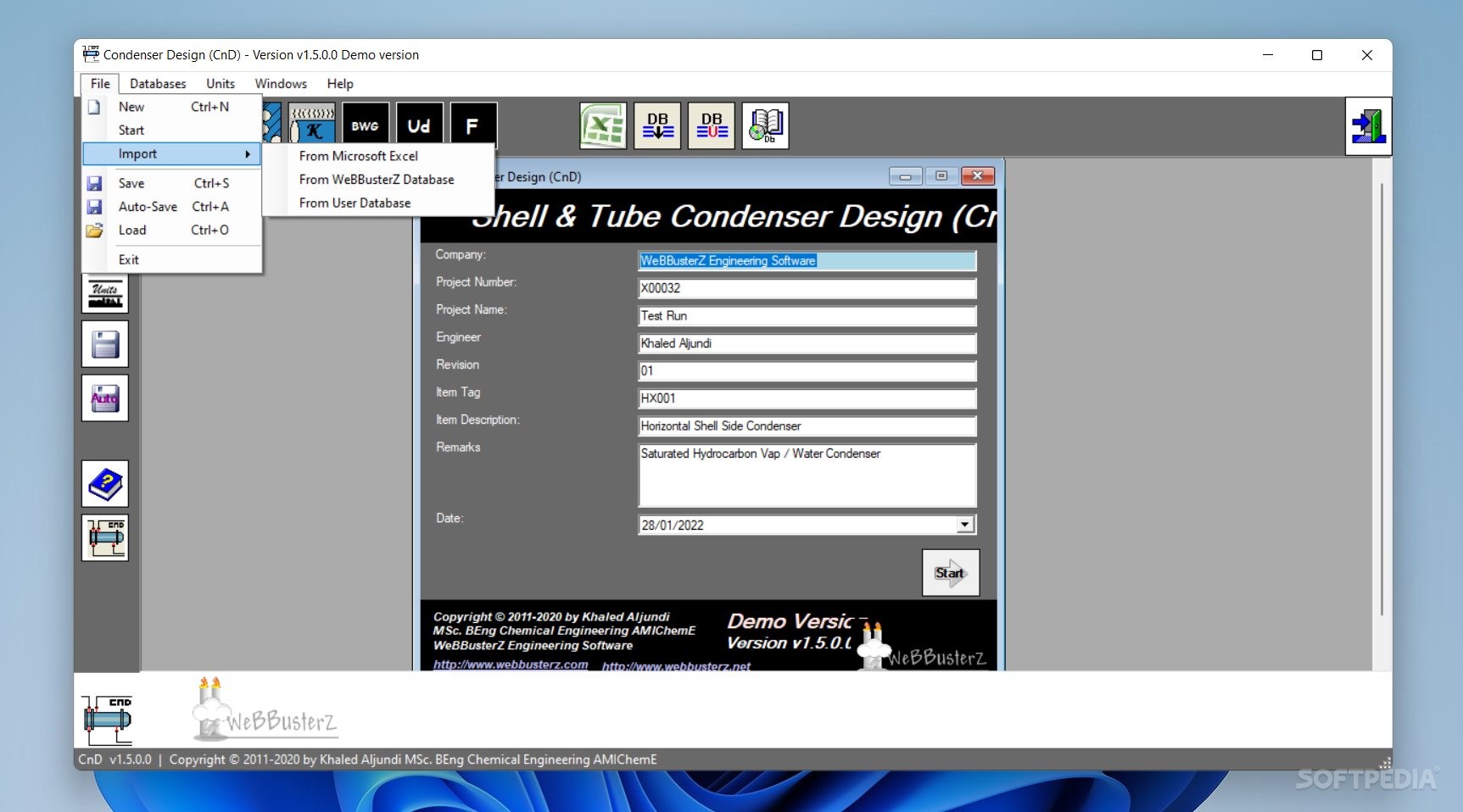

You can kick things off by building a project from scratch or importing data from Excel or WeBBusterZ databases. It’s super flexible that way!

A Powerful Toolkit

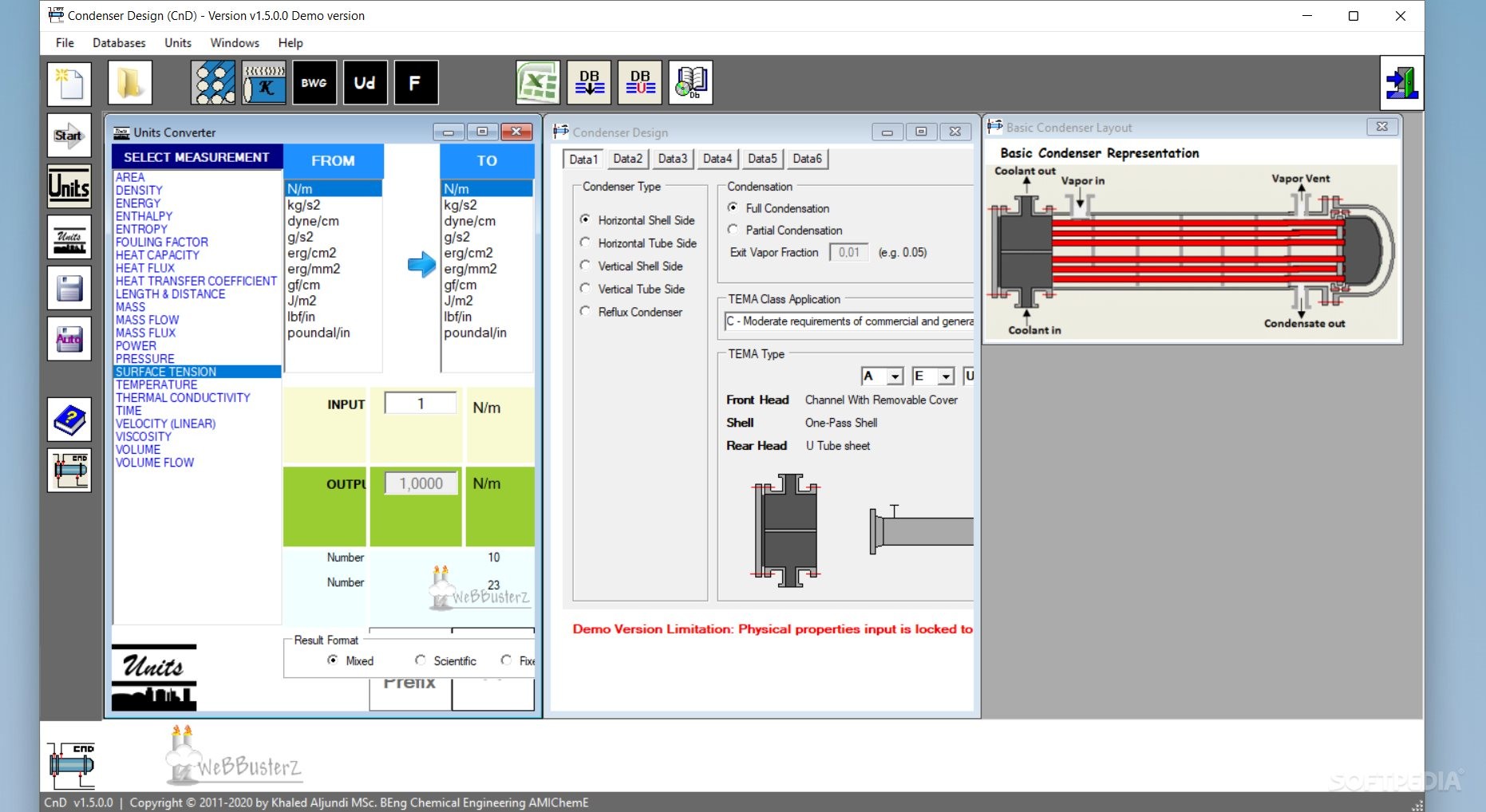

The power behind Condenser Design really shines when you start using it. You’ll notice how many simulation parameters it supports right off the bat! From full and partial condensation simulations to single-phase vapor condensation and TEMA designations—this software has got your back.

Diving Into Calculations

You can dive into detailed calculations involving various variables like Reynolds numbers, duty, area, flooding velocity for reflux condensers, number of baffles, scale resistance, and overall heat coefficient. There’s a lot under the hood!

A Tool for Professionals

This software might not have eye-catching visuals or fancy gimmicks—but let me tell you: in the hands of professionals in the energy industry or educators, it becomes an incredibly capable tool. If you're looking for something solid to help with thermal analysis tasks, definitely check out Condenser Design.
