Disc Spring Solver

Disc Spring Solver is a handy app for anyone in mechanics or working with springs. It helps you check how well spring assemblies work and lets you tweak the settings to see what happens. Though the app isn’t being supported anymore, you can still grab it from Softpas, but keep in mind there are some limits on its use.

Easy-to-Use Interface

This application comes with a user-friendly interface that has multiple fields for entering details about your spring projects. The layout is organized into different sections, making it super easy to find the parameters you need quickly.

Add Specs Effortlessly

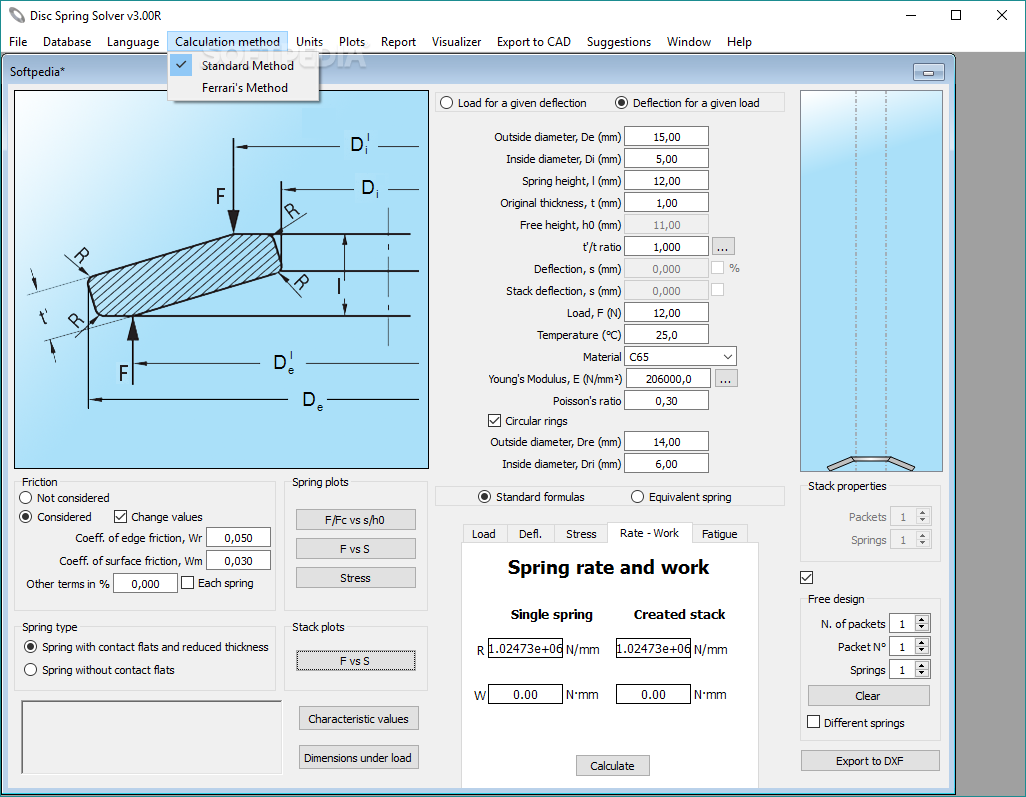

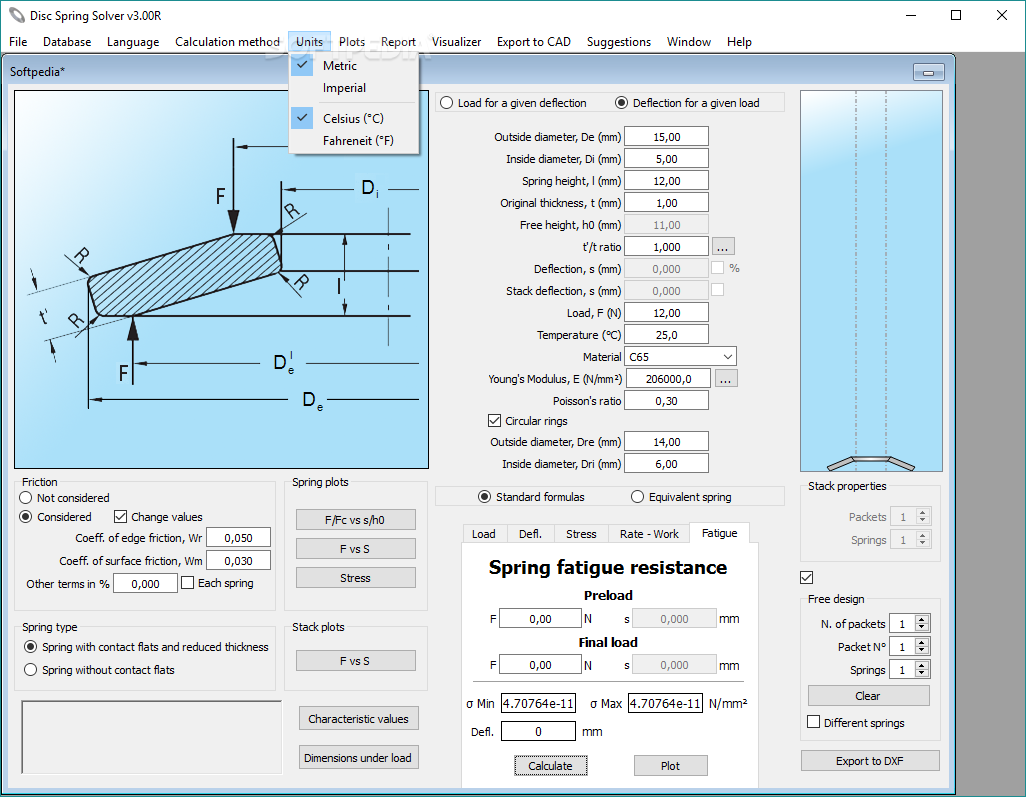

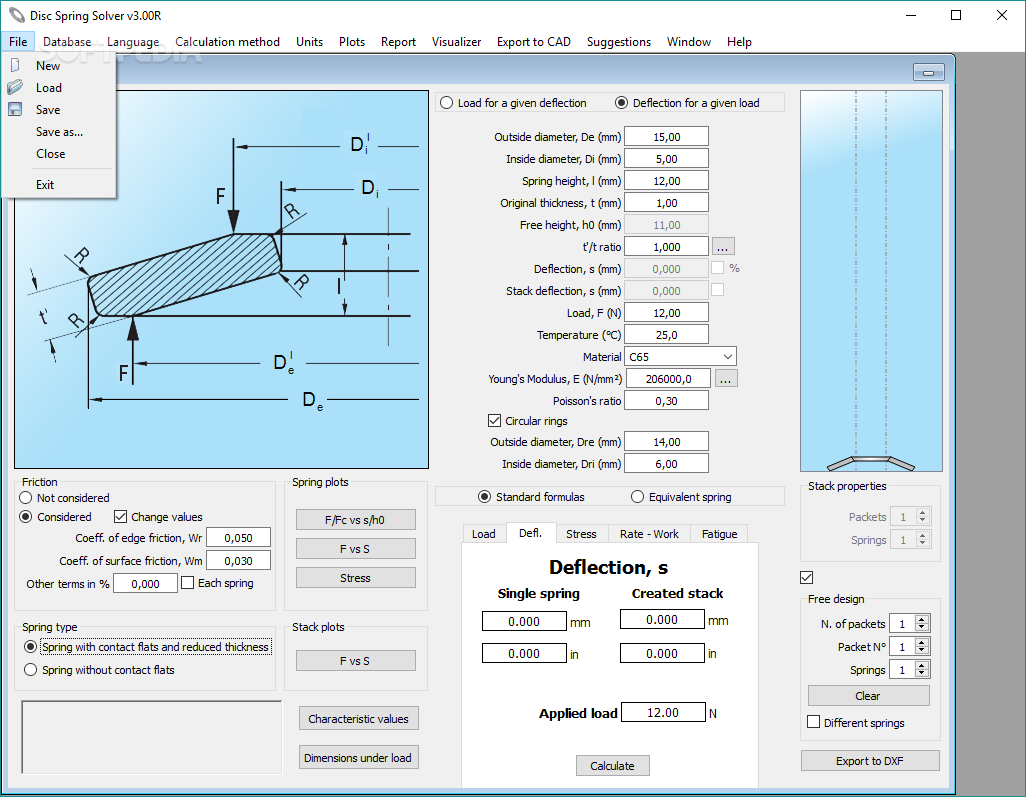

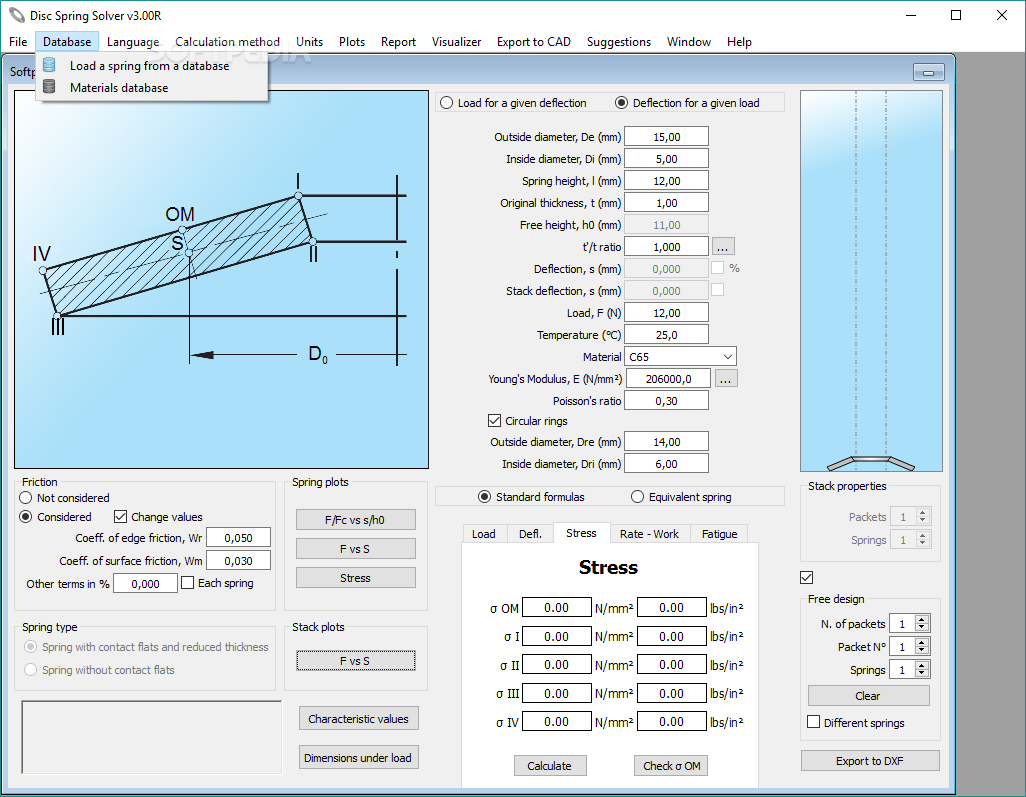

You can easily enter specs for friction, spring plots, deflection load, or stack properties right from the main screen. There’s even a special section where you can add more info. You’ll find tabs for inputting data on load, deflection, stress, rate-work, and fatigue.

Visualize Your Springs

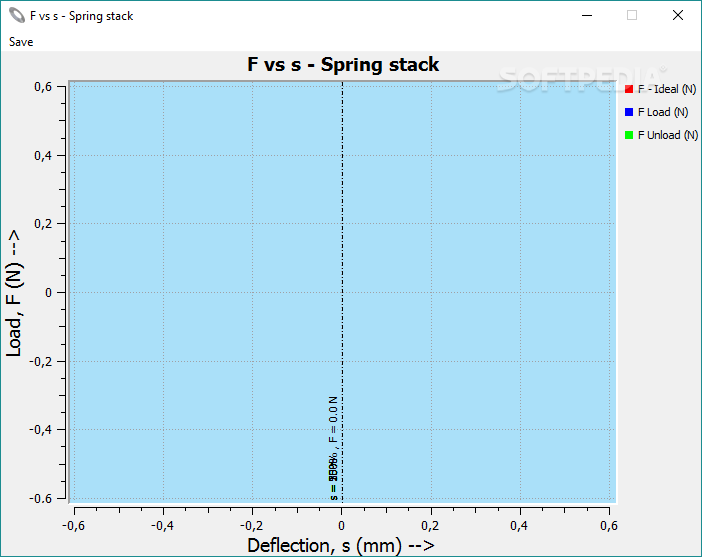

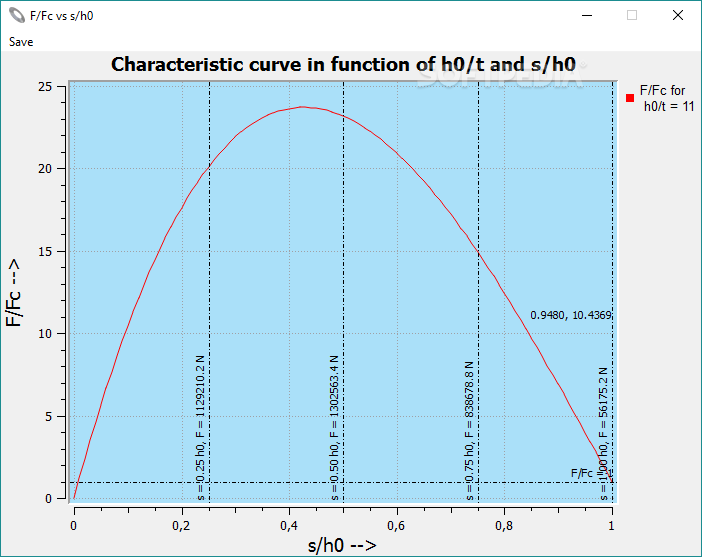

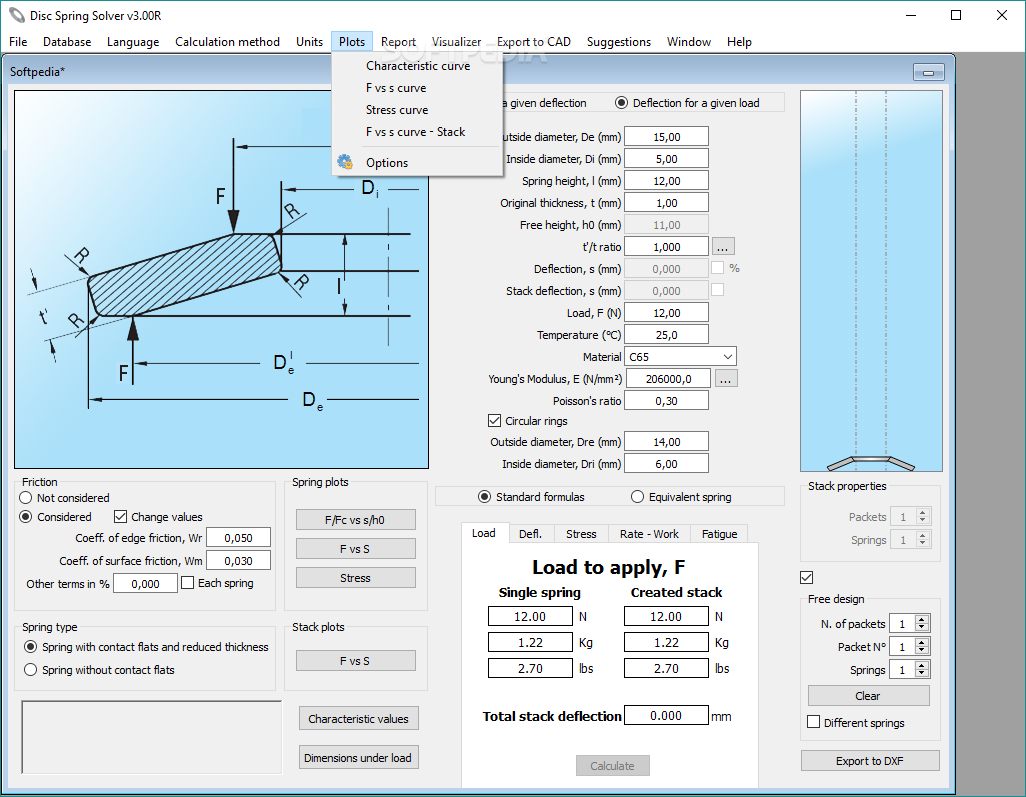

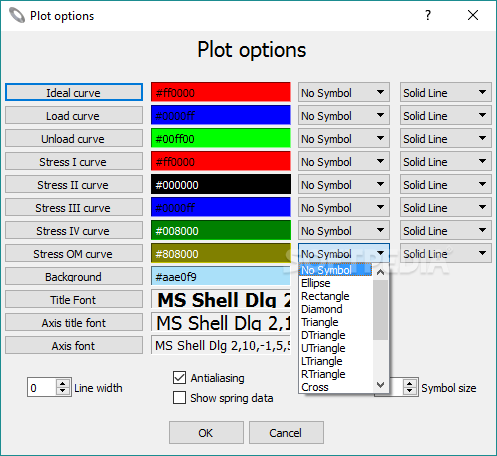

One cool feature is that you can see how your loaded spring assemblies look! The app has basic plotting tools that let you toggle graphs for load and characteristic curves without any hassle. Plus, it’s simple to navigate using just your mouse!

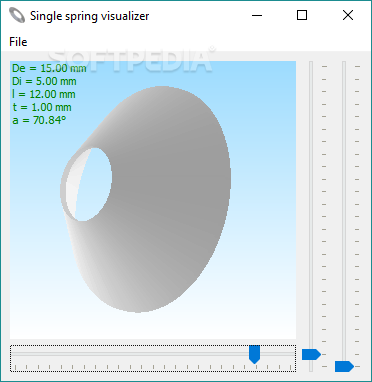

3D Visualization Tool

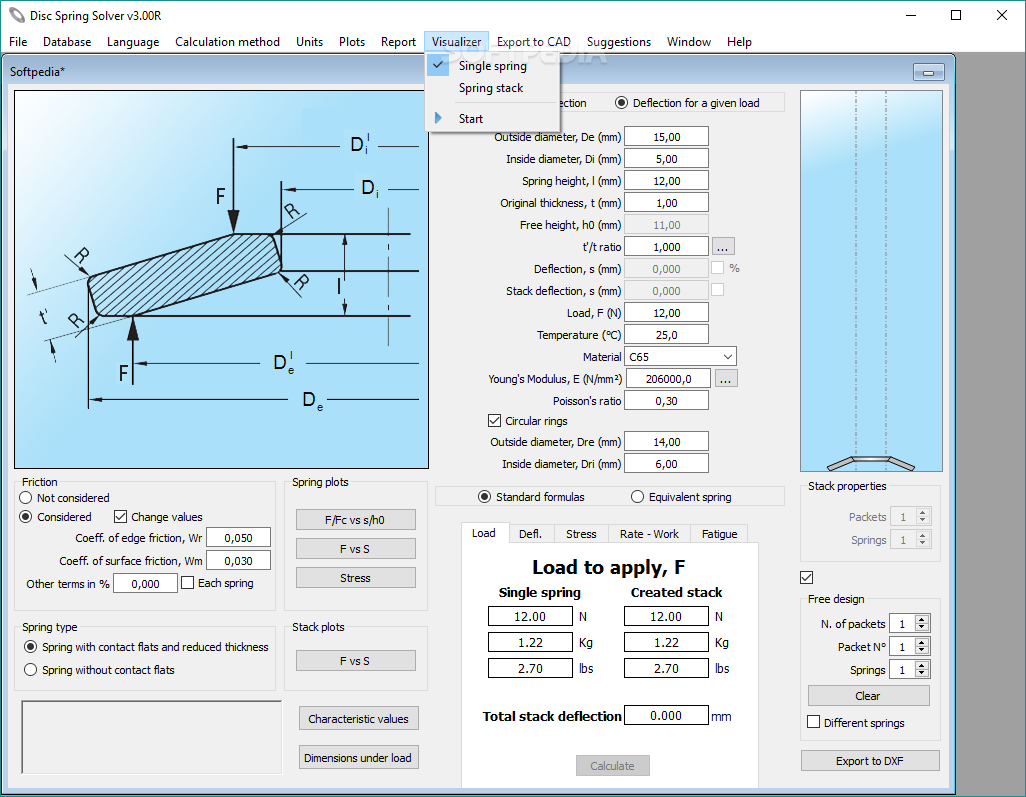

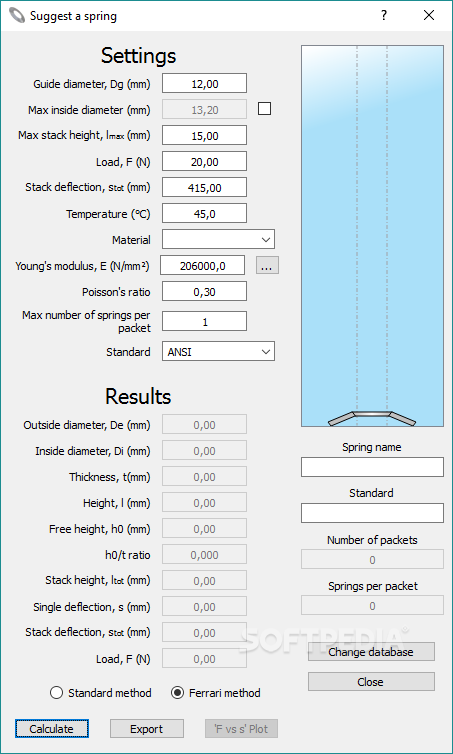

The 3D visualizer is a neat addition that allows you to preview your spring assembly in detail. You can rotate it and check out all its dimensions easily! You can even create springs from scratch by filling in data like guide diameter, maximum inside diameter, stack height, load, temperature, material, and more.

Your Go-To Tool for Springs

If you're looking for a reliable way to test various springs and their assemblies, this application is perfect for you! It offers comprehensive tools to define many characteristics of springs along with cool plotting features to visualize everything you've inputted.
