EAGLE

EAGLE is a handy utility for Windows that helps you design printed circuit boards. It’s built just for this purpose, making it super useful if you're into electronics!

Easy-to-Use Interface

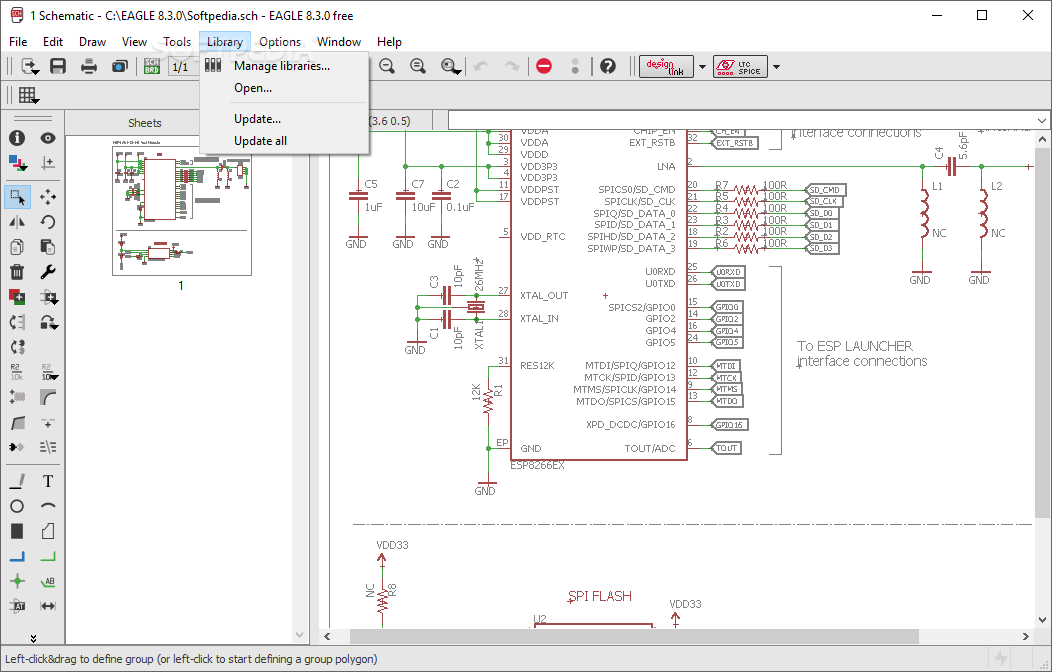

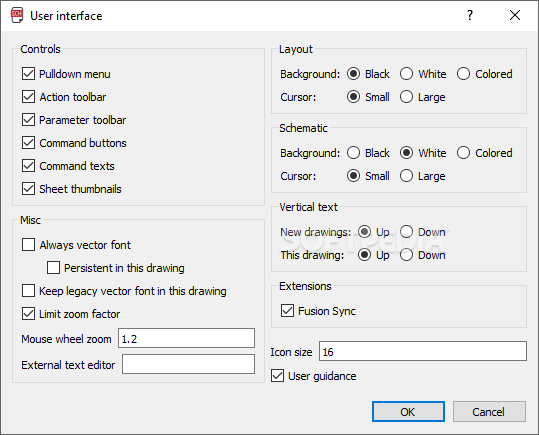

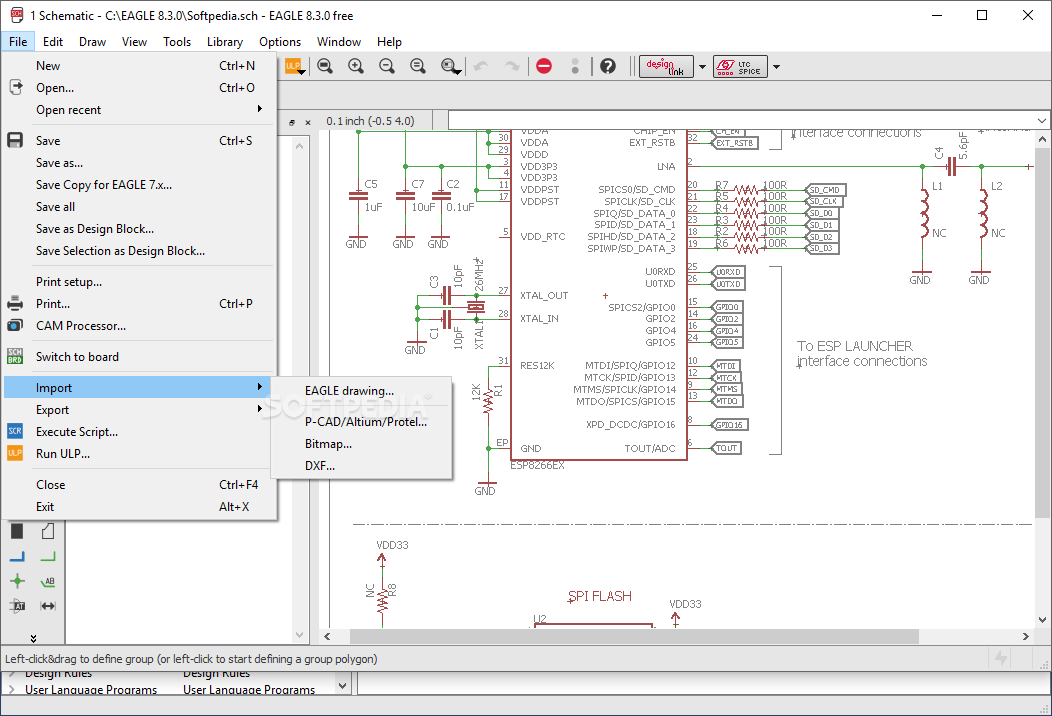

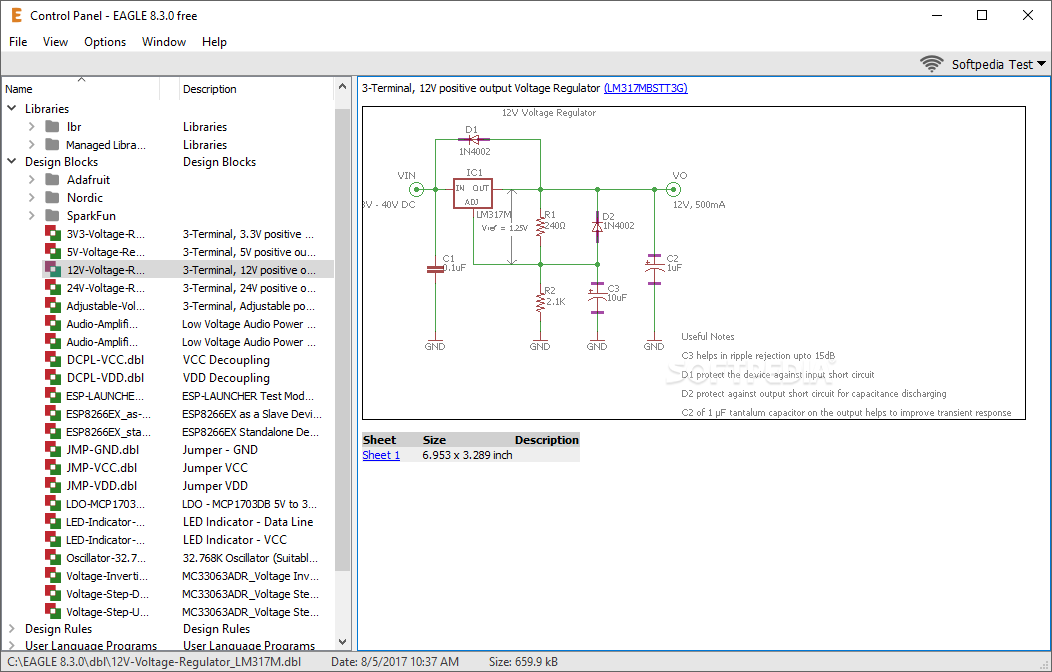

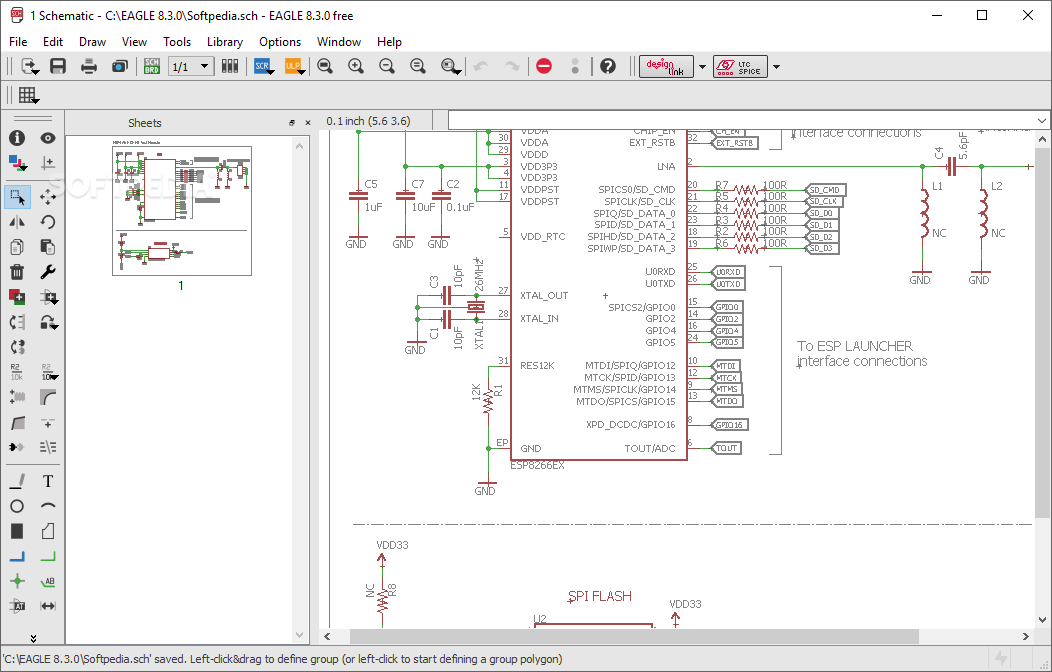

The interface is pretty straightforward. You can kick off a new project using the library, schematic, board, or even a text editor. No need to be an expert to get started!

Powerful Board Editor Tools

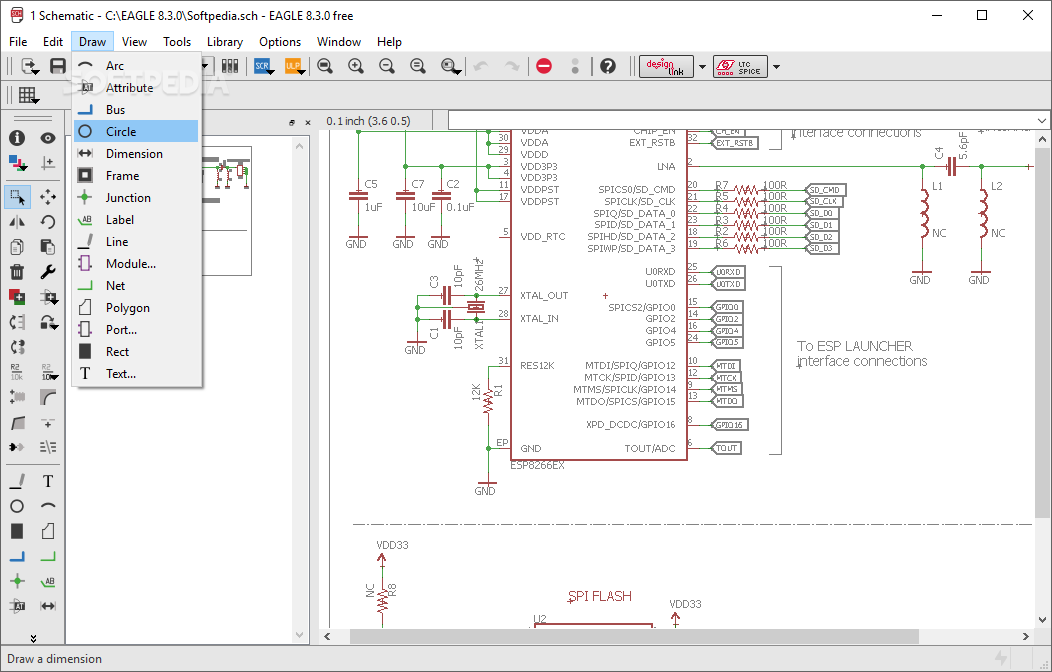

The board editor comes loaded with tools designed for creating your designs. You can draw arcs, circles, polygons, and rectangles with ease. Plus, inserting wires and embedding text messages is a breeze!

Manage Your Designs Smoothly

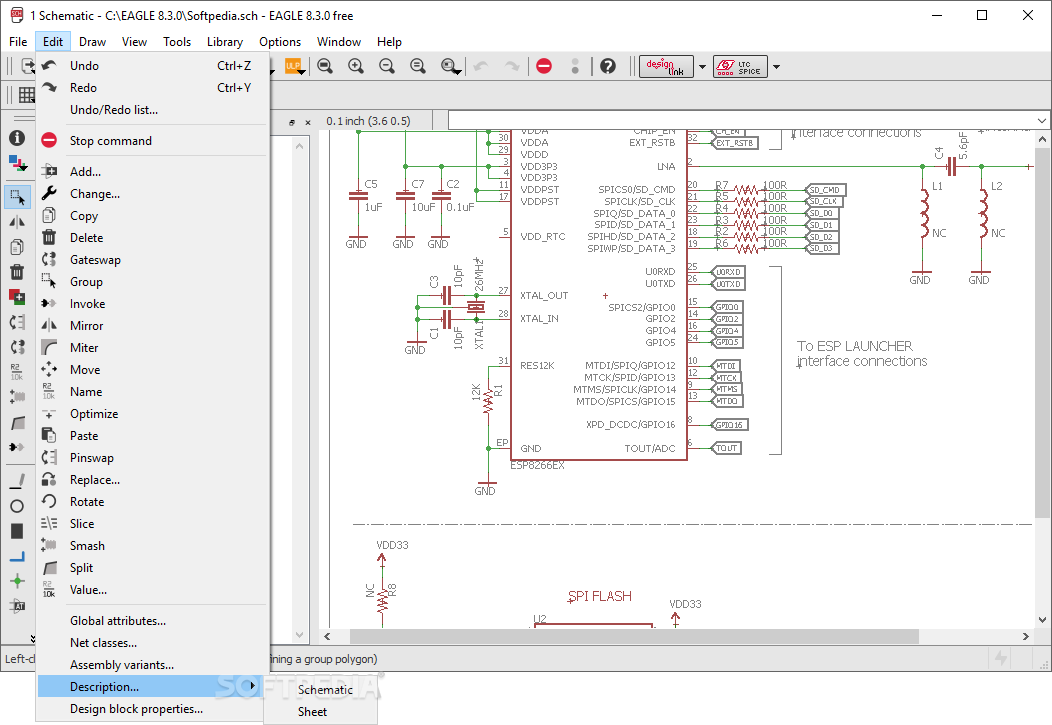

EAGLE makes it easy to manage your projects. You can move, copy, or delete objects without any hassle. Want to paste something from your clipboard? No problem! The route function also helps convert connections into routed wires effortlessly.

Customization Options Galore

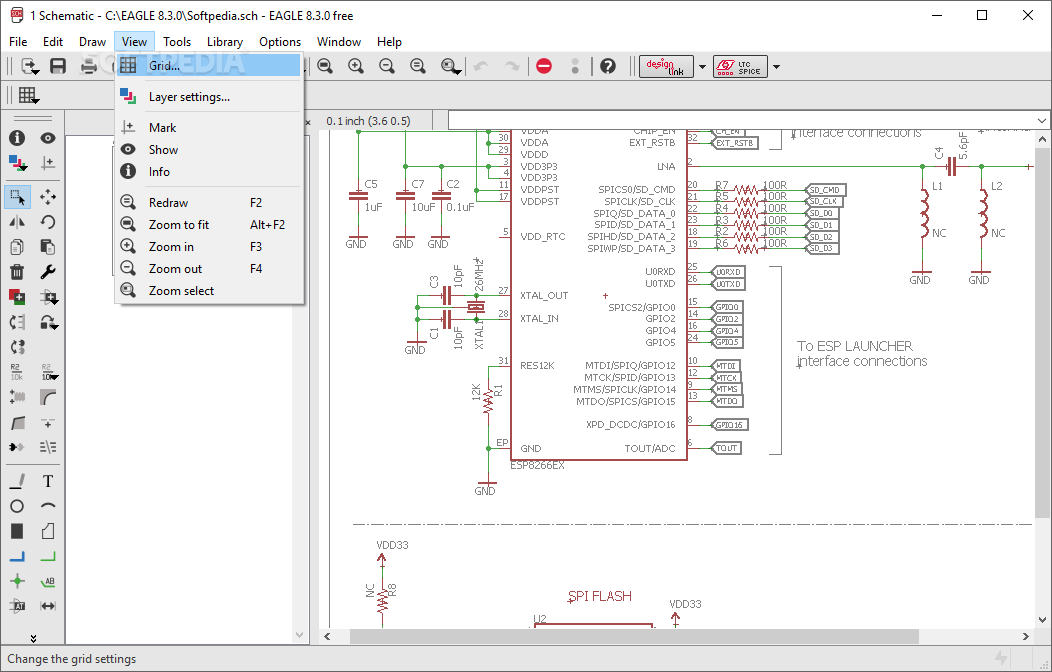

You can join wire segments together and bend lines however you like. Rotating objects is simple too! Zoom in or out to get that perfect view and lock the position of components as needed. Plus, you can tweak all sorts of object properties—like size, class, shape, font style, diameter, alignment, and more.

Error Tracking & Printing Made Easy

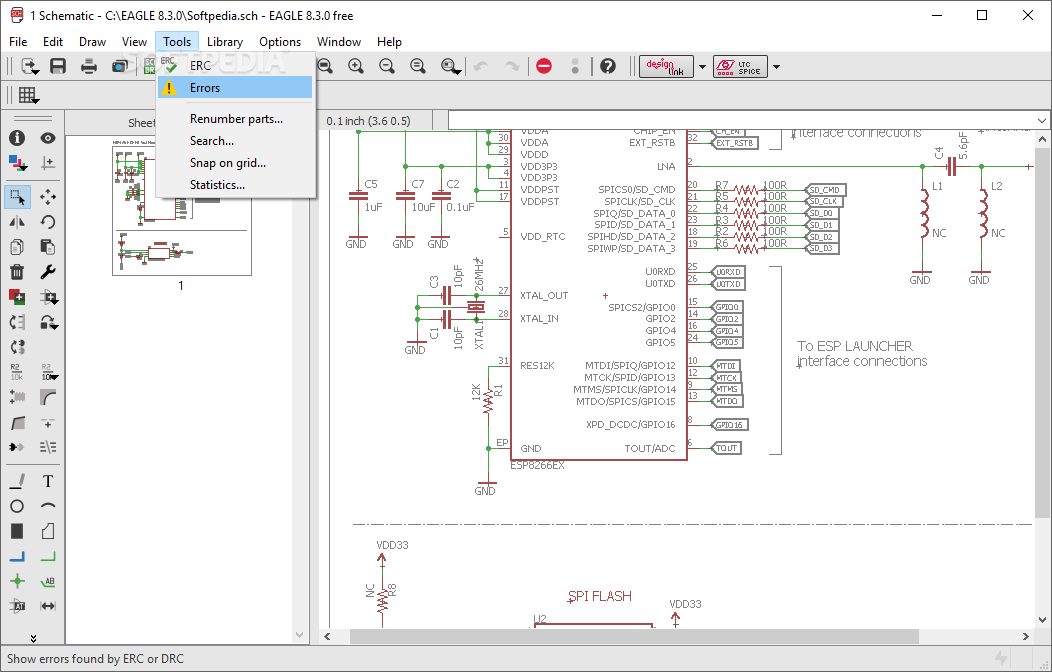

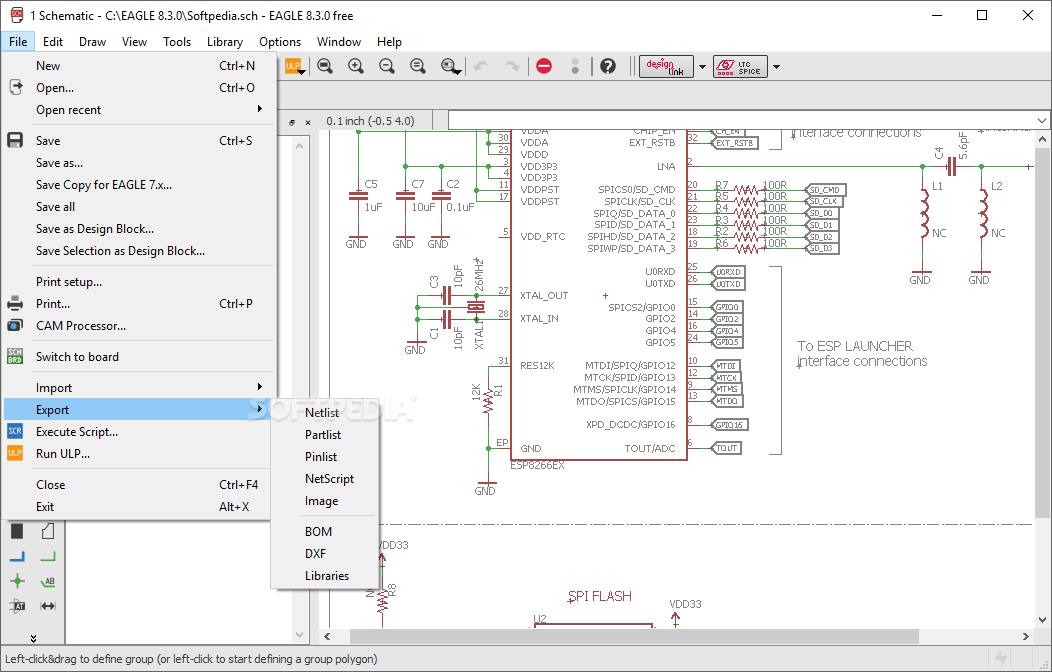

EAGLE keeps track of errors it detects so you know what to fix next. And when you're ready to show off your work? You can print the generated circuit boards easily!

Advanced Features for Professionals

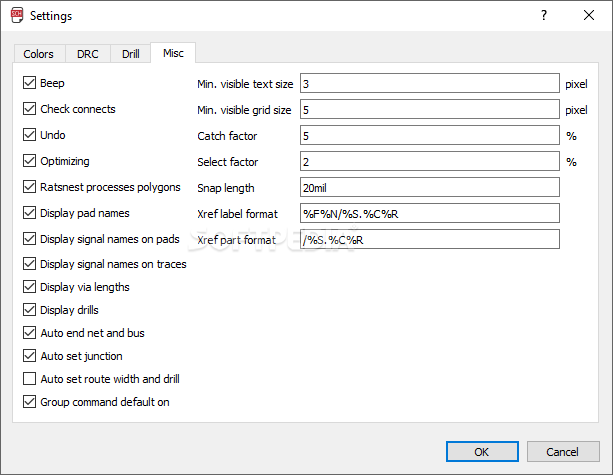

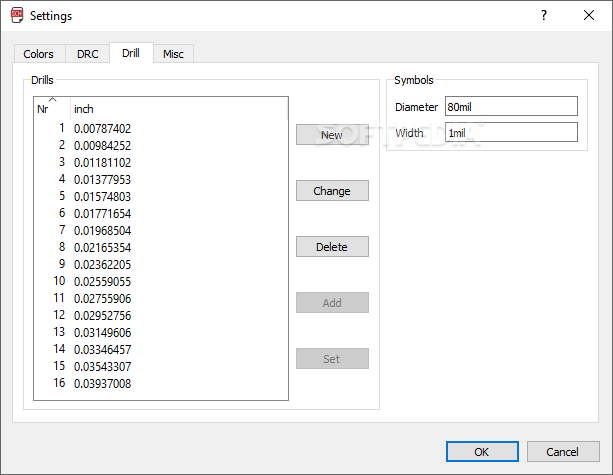

This software also supports command-line operations and script files which is great for tech-savvy users. It includes automatic backup options too! Configure layer parameters and set distances between objects just the way you want.

If you’re serious about circuit board design, EAGLE has everything you need! It’s packed with features suited for professionals who require advanced tools for their projects.
