Expert MININEC Classic

Expert MININEC Classic is a handy software tool made to help you analyze wire antennas. It's been around for a while, so just a heads-up: it hasn't seen updates in quite some time. But don't worry! It still runs well on newer Windows versions.

Easy Setup Process

The setup is super easy and shouldn't give you any headaches. Once you're done, you'll see a large window with a classic layout that shows off the Expert MININEC Classic interface.

Starting Your Project

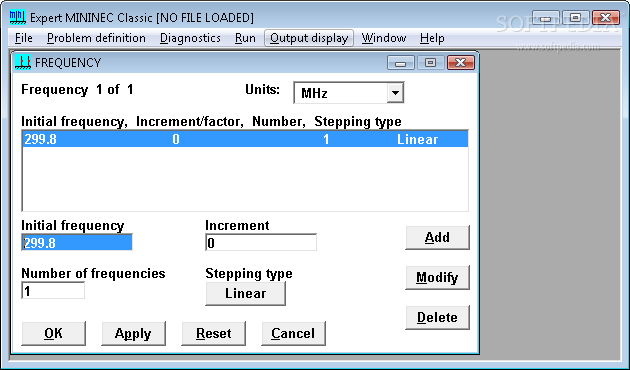

You can kick things off by creating a new project. All you need to do is enter the initial frequency, how much you want to increment it, the number of frequencies, and the stepping type. The best part? You can change or remove these settings anytime!

Geometry Features

When it comes to geometry, you've got options! You can choose geometry points, straight wires, and dimensions along with your coordinates and environment settings. Editing the problem description is also a breeze.

Measurements and Environment Settings

You can pick your measurement units and set up your coordinates mode too! Whether you're dealing with perfect ground, free space, or Fresnel ground, there's flexibility here. You can even run redundancy checks and load text from external files.

Diving into Electrical Info

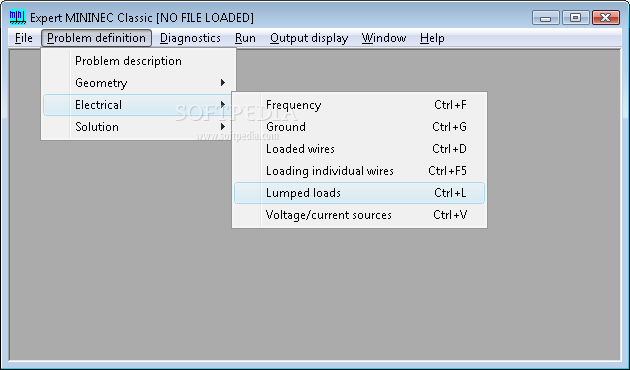

This software lets you play around with electrical details related to frequency, ground conditions, loading wires, individual wires, lumped loads, as well as voltage or current sources.

Error Checking Made Easy

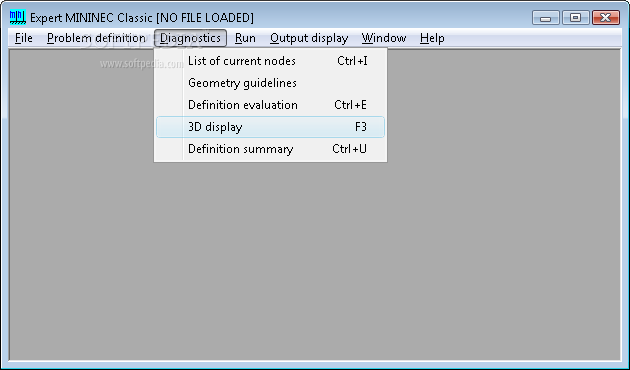

Expert MININEC Classic helps you keep track of current nodes and warns you about any geometrical issues like radius or segment length problems. You also get a neat 3D display option!

Smooth Performance

The software performed well in our tests; no crashes or annoying error messages! It responded quickly and didn't hog system resources since it uses a low amount of CPU and RAM.

A Few Downsides

The one downside is that Expert MININEC Classic's interface feels dated since it hasn't been updated for ages. Plus, it's not super intuitive right off the bat. But hey! Why not give it a spin yourself? You might just like it!
