Description
GC-PrevuePlus
GC-PrevuePlus is a handy tool that makes working with PCB design files super easy. At the core of many gadgets we use today, these files include all the tiny details about circuit boards. This means everything from copper layers to solder masks and even the labels on the board itself.
Load and Convert Your Designs

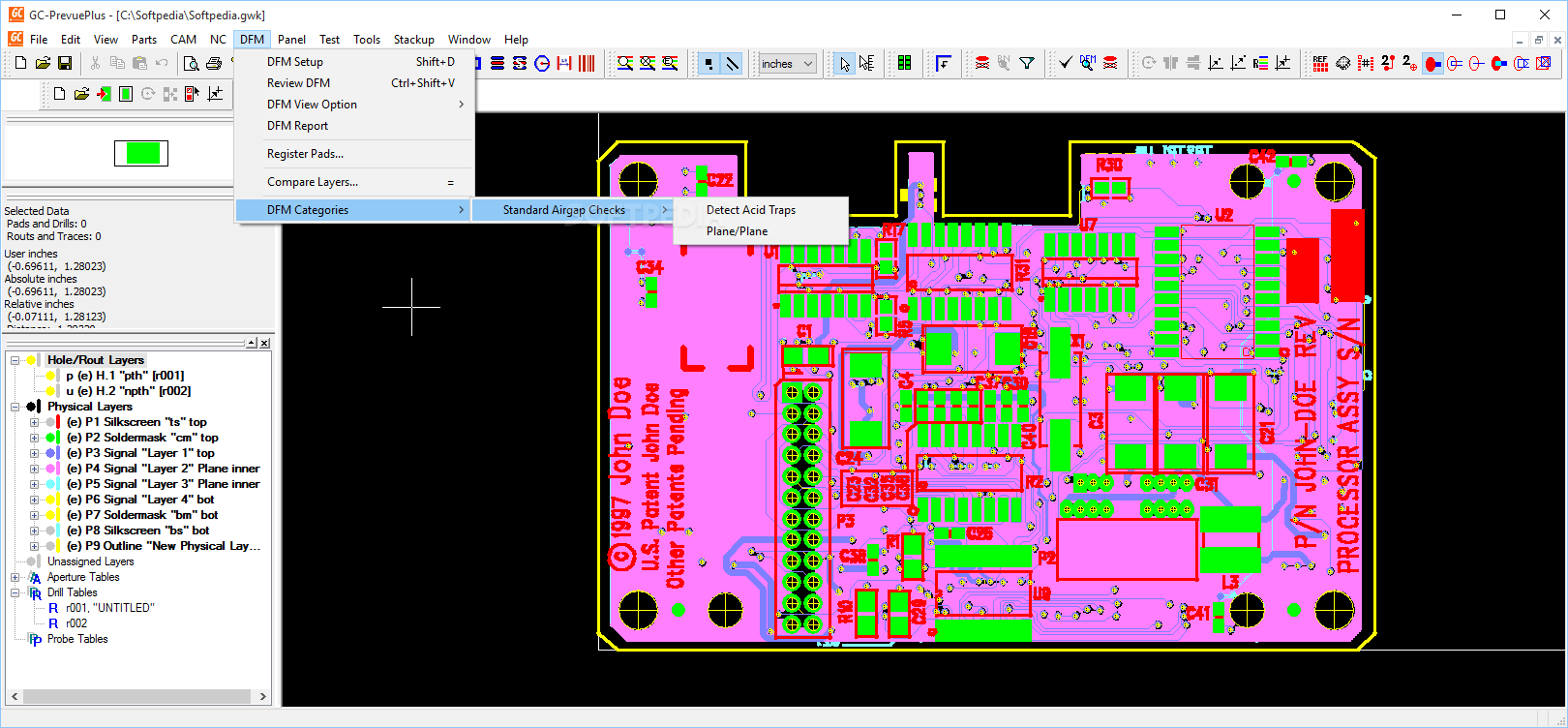

If you've ever wanted to open these tricky documents, GC-PrevuePlus is here for you! It can load and convert most printed circuit board blueprints without any hassle. The app supports several formats like Gerber (both standard and extended), AutoCAD, DPF, and HPGL. Plus, it shows you not just the design but also important metadata.
Edit with Ease
One cool thing about this software is that it lets you edit stored data. You can add notes right on your PCB designs too! Need to convert Gerber files to DXFs? No problem! You can also measure distances between different elements on your design easily.
All Kinds of Editing Tools

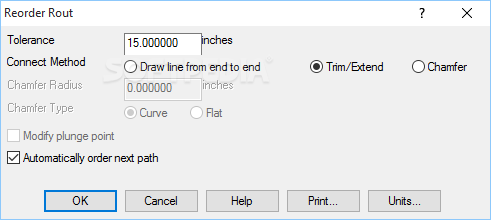

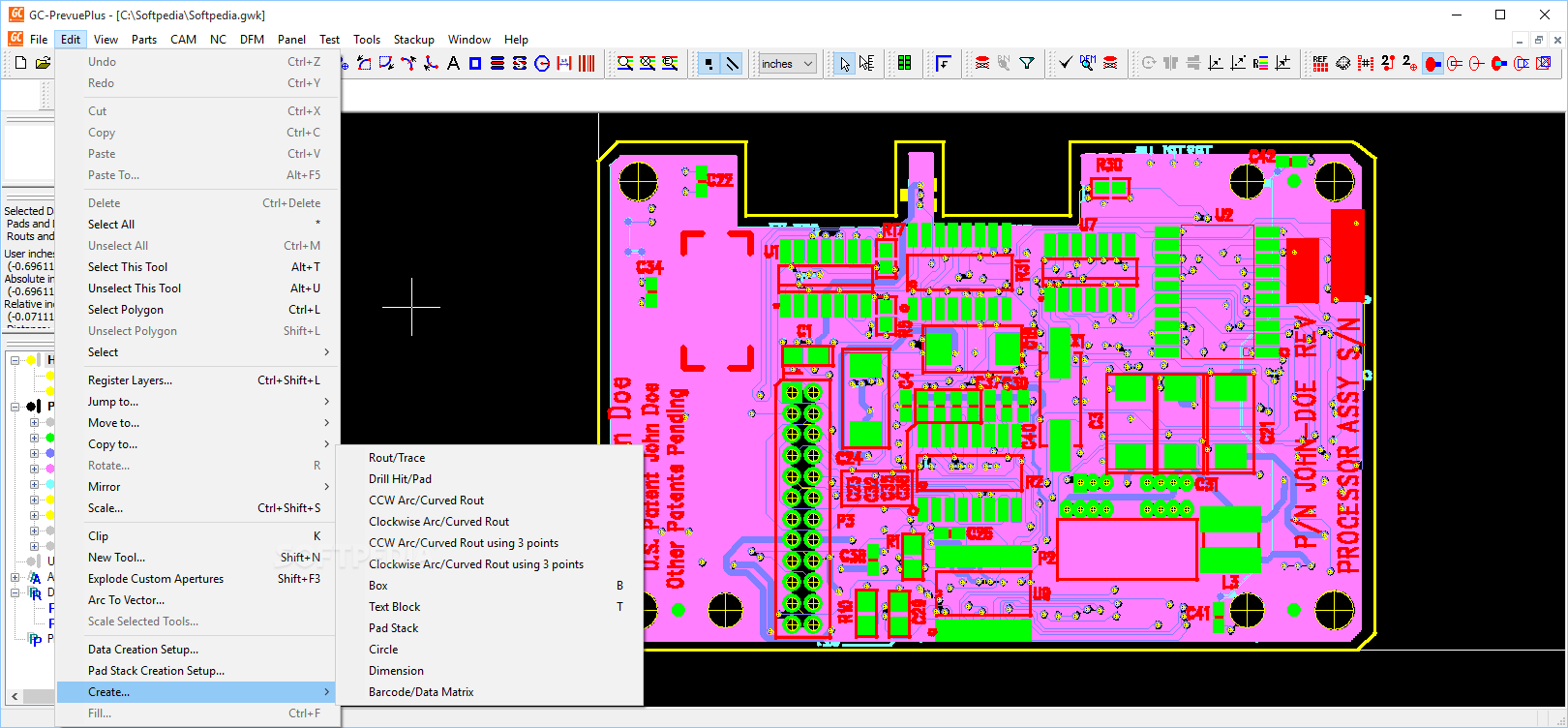

The utility comes loaded with editing features like clipping objects, mirroring, rotating, or scaling them. You can even add new shapes like circles or text blocks effortlessly. There are extra tools available too for things like polygon reordering and repairing any issues in your designs. Plus, there's a handy crosshair feature that helps you pinpoint objects accurately while viewing at different magnifications.
Export Your Projects

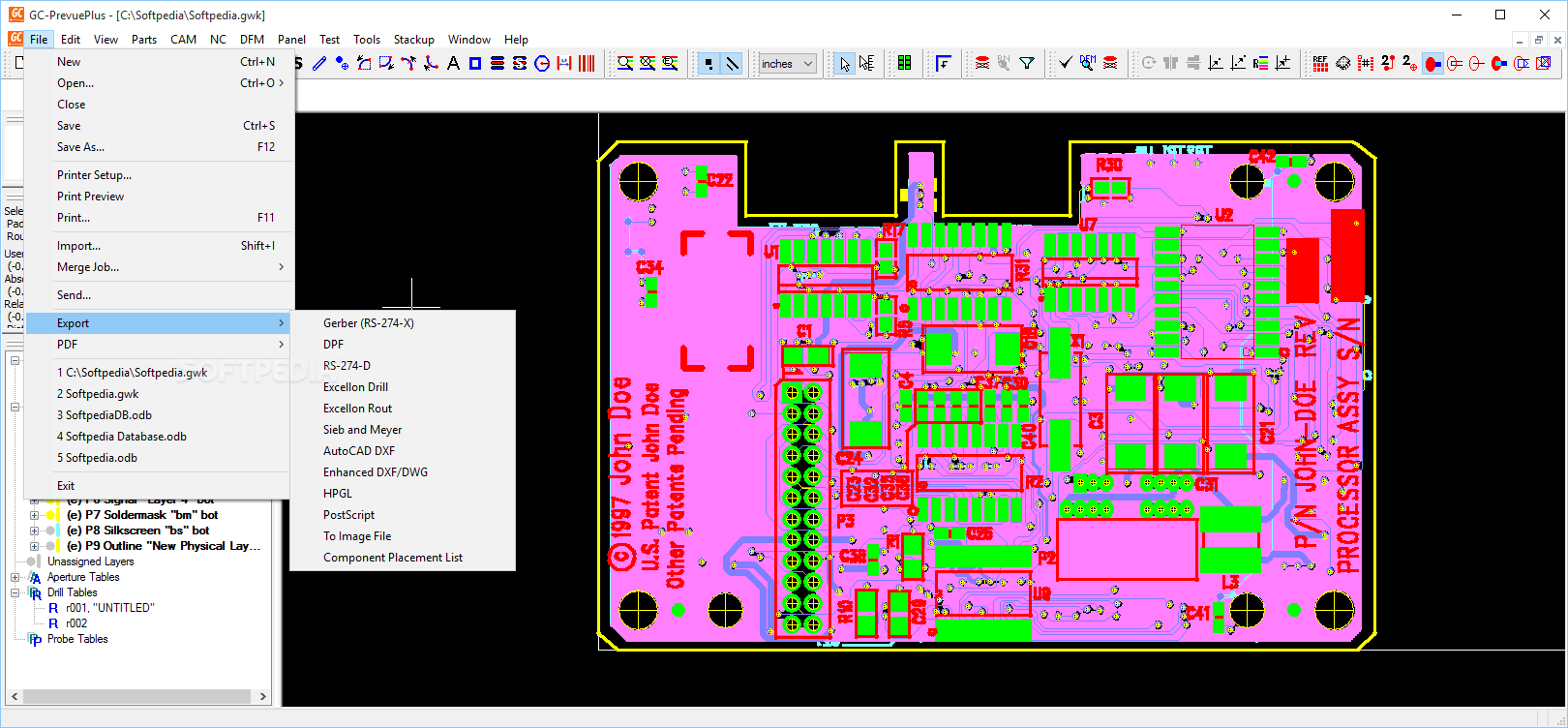

Once you're happy with your changes, you can export your projects in various formats! Whether it's multi-page Gerber RS-274-X or DPF files or even HPGL and DXF documents – it's all possible! You can also create simple BMPs or save plot data as PDFs.
Your Go-To Solution for PCB Designs
In short, GC-PrevuePlus is a complete package for anyone who regularly works with PCB designs. It allows you to view documents easily while making both basic and advanced adjustments as needed. And yes, converting files into various formats like extended Gerber RS-274X or older RS-274-D formats is totally doable!
