IEC 870-5-101 Simulator

IEC 870-5-101 Simulator is a handy software tool that helps you simulate master and slave stations easily. If you’re looking to test those protocols, this is a great pick!

Easy Setup Process

Setting it up is pretty straightforward. After a quick installation, you’ll see a simple window layout that’s easy to navigate.

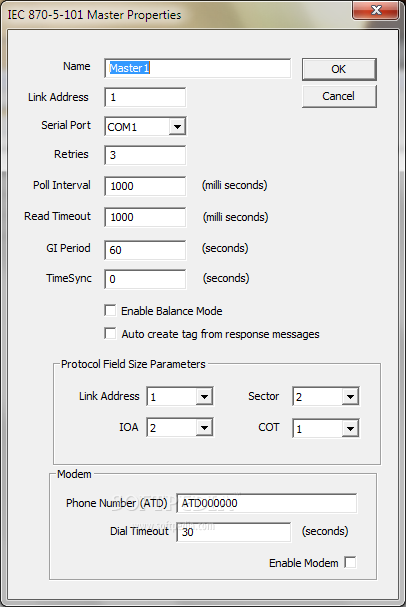

Add Devices to Master List

You can quickly add new devices to the master list. Just fill out some details like the name, link address, serial port, total retries, poll interval, read timeout, GI period, time sync settings, and test functions.

Configure Slave List

For the slave list, it's just as easy! You’ll set up a name and link address along with serial port info and protocol field size. This keeps everything organized.

Monitoring Made Simple

The simulator also lets you monitor easily. You can specify names for your devices and set first and second ports along with protocol field size details.

Start Simulation with One Click

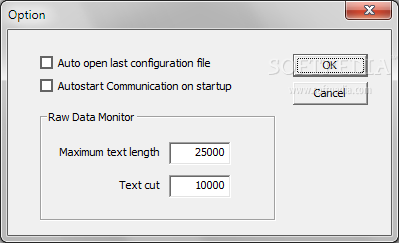

Once you’ve got all your devices ready, just click once to start the simulation! Plus, you can save your configuration for future use or edit existing serial ports as needed.

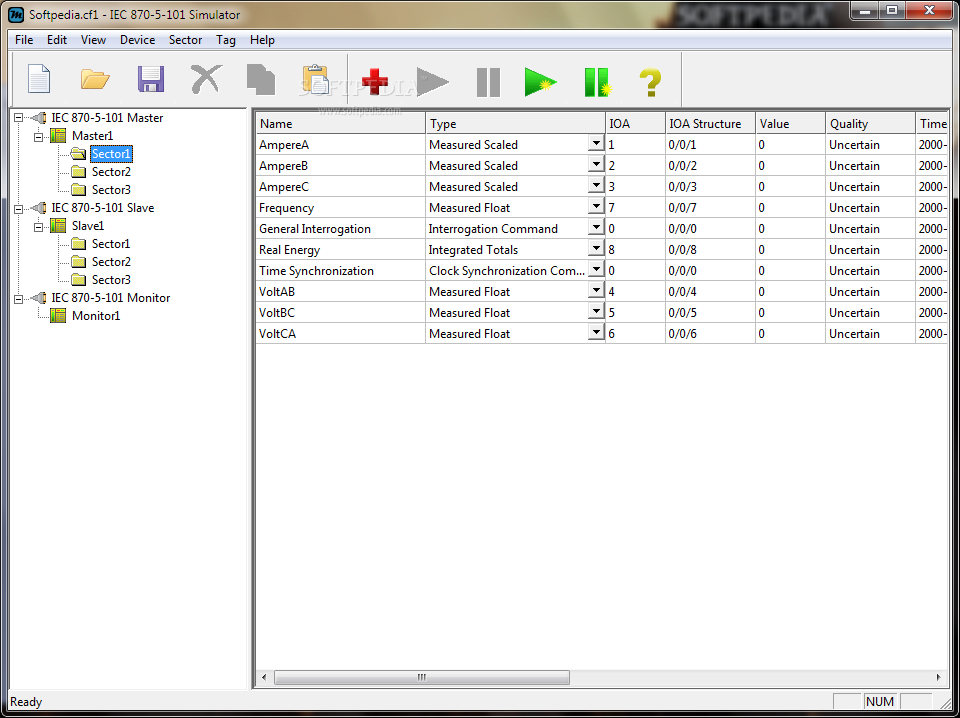

Edit Device Parameters Easily

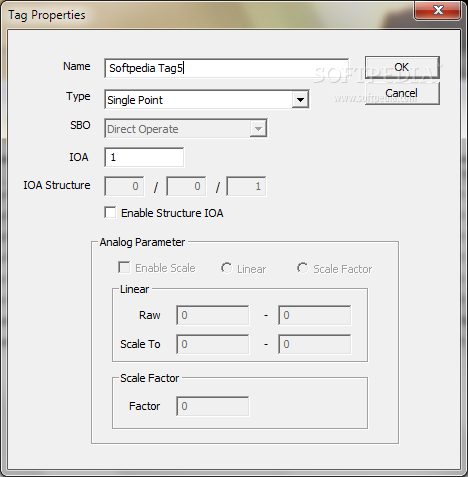

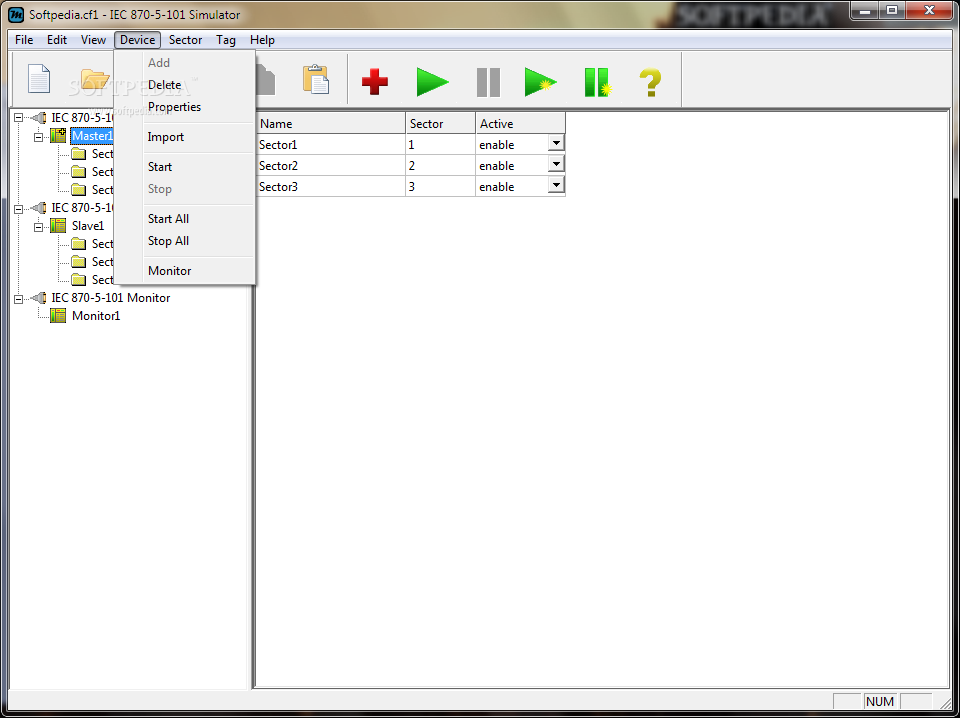

You have full control here—you can check out and edit device parameters. Starting or stopping all devices at once is super simple too! You can even create new sectors and write tags easily.

No Performance Issues

This tool has minimal impact on your computer's performance during tests. It runs smoothly without hogging CPU or RAM resources. No crashes or annoying error messages either!

Get Your IEC 870-5-101 Simulator Now!

If you're looking for an efficient way to test master and slave protocols without hassle—this software has got you covered!
