MagCAD is a super handy tool for anyone diving into the world of magnetic fields and interactions. Whether you're in construction, research, or just curious, this software helps you understand complex calculations with ease. It’s one of those first steps you’ll want to take for any ambitious project, even if you're just starting out in school!

Getting Started with MagCAD

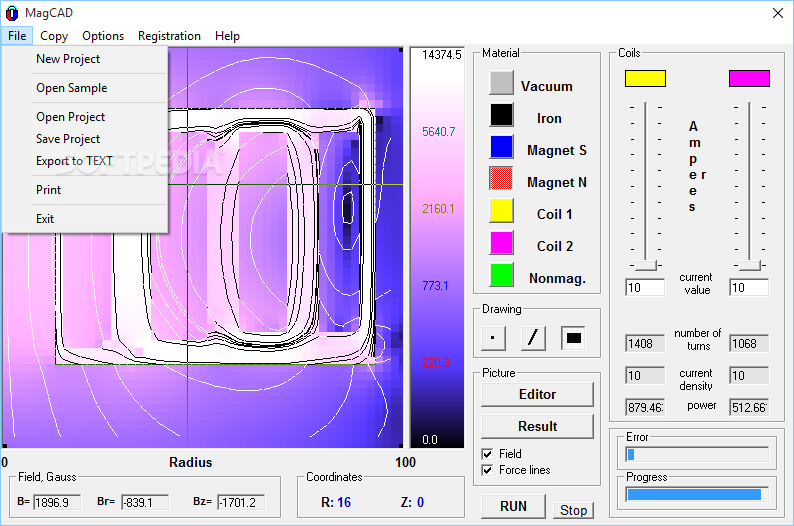

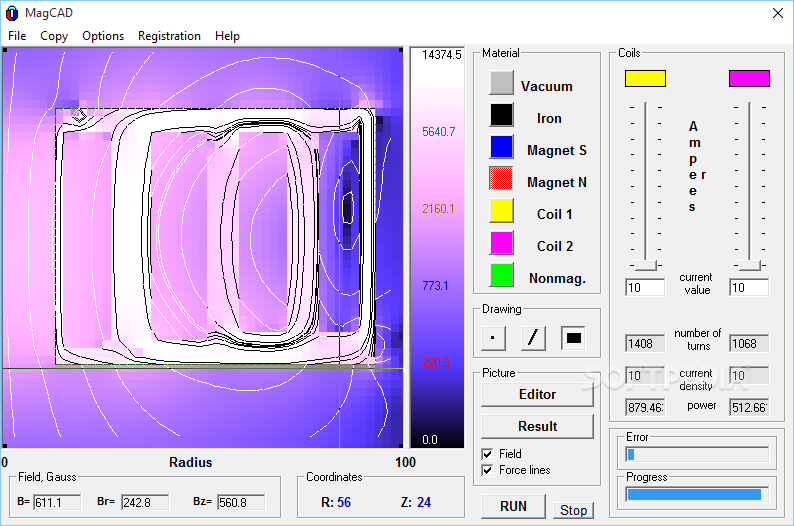

Setting up MagCAD is a breeze! Once you launch it, the main window pops up showing all the cool elements you'll be working with. You’ve got a nice canvas to place your elements on, and a side panel that gives you access to values and tools without any fuss.

Using Presets for Easy Learning

If you’re feeling a bit lost at first, don’t worry! MagCAD lets you load various presets so you can hit the ground running. You can also tweak values step by step to see how each change affects your results—great for experimenting!

Selecting Your Magnets

This application is designed to handle different types of magnets. First, you'll need to select the material you want to use. Options include vacuum, iron, magnet S, magnet N, Coil 1, Coil 2, or Not magnetic. Plus, there are three brushes to choose from that make placing magnets fun!

Tweaking Values Easily

You don’t have to mess with every single value if you don’t want to! The coil intensity can be easily changed using two sliders. There are also two options available for viewing force lines and magnetic fields clearly. When you're ready to see what you've created, just hit Run! This will process all your values and show the results right away.

Analyzing Results Like a Pro

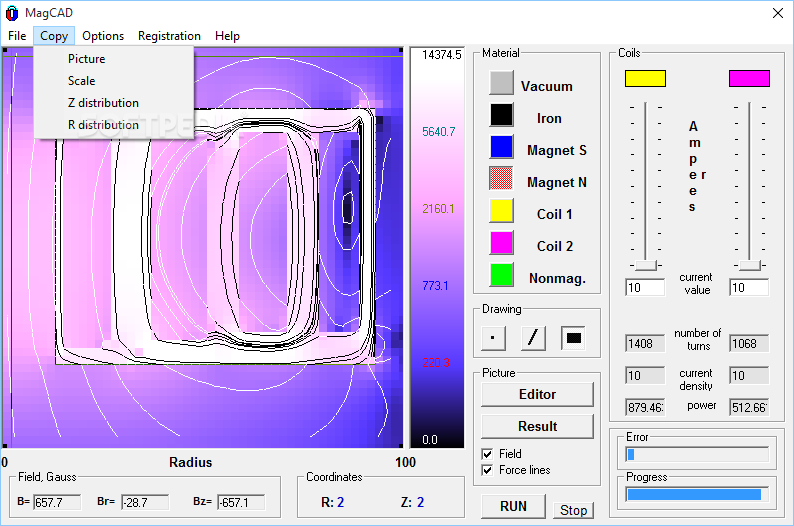

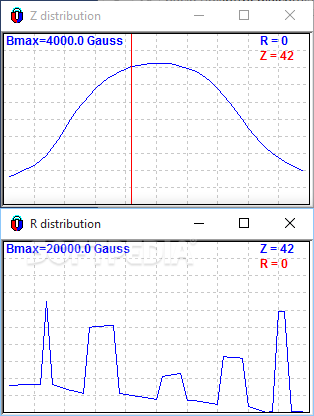

After running your design, two extra windows pop up that help analyze intensities for Z and R coordinates. The canvas even gets colored differently so it's easy to spot variations in intensity! If you need your results saved for later or shared with others, exporting them as a TXT file or copying elements directly to your clipboard is super easy.

A Great Tool for Beginners

MagCAD is perfect for beginners wanting to explore magnetic fields without getting overwhelmed by complicated interfaces. Sure, its main window might look like it came from another era—but don't let that fool you! The way everything is laid out makes it simple for anyone to start drawing their own magnets and conducting endless experiments.Download MagCAD now!
