MININEC Pro

MININEC Pro is a handy Windows app that helps you analyze all kinds of antennas. This tool can calculate the feedpoint impedance for different frequencies and even tell you about the theoretical efficiency. Plus, it can generate and print plots of radiation patterns, which is super useful!

Easy-to-Use Interface

The interface has a multi-tabbed layout that makes it easy to access the main features of the program. While it looks organized, some users might find the settings a bit tricky at first.

No Help Manual?

One thing to note is that there's no help manual included with the software. So, you might need to play around with the built-in features to figure things out.

Customize Your Environment

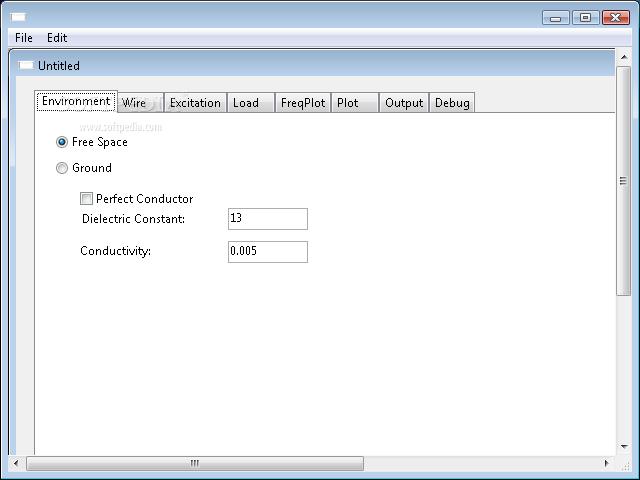

With MININEC Pro, you can set up your environment by choosing between free space or ground options. You can also enter details about dielectric constants and conductivity to get accurate results.

Add New Elements Easily

If you want to add something new to your database, just input info like number of pulses, length, position, radius, and height. You have options to save your data in ANT file format or print it out too!

User-Defined Frequency Details

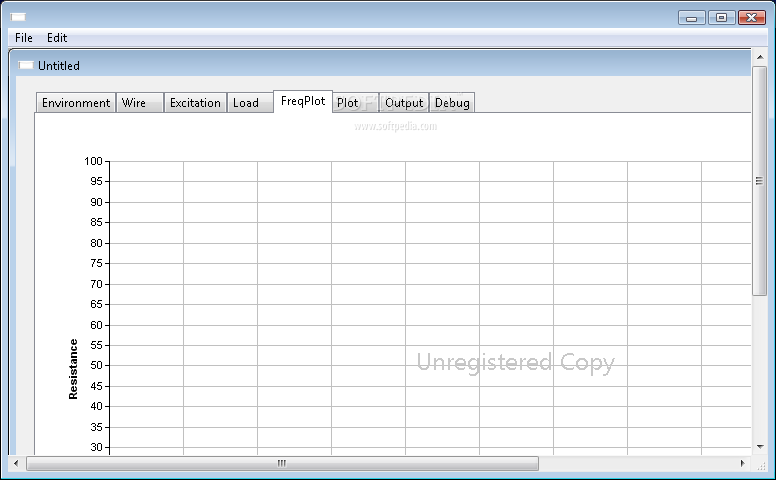

This app lets you generate details about impedance, pulse, voltage, phase, and power based on whatever frequency you choose. And yes—impedance for any frequency can be plotted as well!

Plotting Radiation Patterns

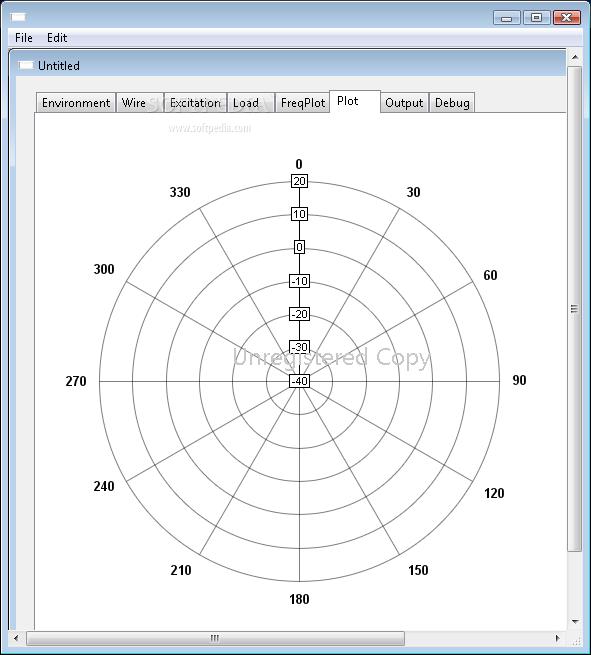

You can plot radiation patterns in either horizontal or vertical far field types. Choose from Azimuth or elevation types along with elevation angles for detailed outputs. It creates a nice output list with everything from pulse details to x, y, z coordinates, and radius info.

Powerful Features for Professionals

MININEC Pro has some powerful features under its hood! The specific parameters are great for professionals or anyone who knows their way around antenna setups.

If you're ready to dive into antenna analysis with MININEC Pro, check it out today!
