Oscilloscope - Advanced Sound Signal Visualization Tool

Oscilloscope is a powerful yet lightweight audio analysis application that transforms your computer into a professional-grade sound visualization tool. This versatile software allows you to visualize audio input waveforms in real-time by utilizing your existing sound card, effectively emulating a standard oscilloscope for comprehensive sound signal analysis without specialized hardware.

Whether you're an audio engineer, electronics enthusiast, or sound technician, Oscilloscope provides the essential functionality you need to monitor and analyze audio signals with precision. Ready to download Oscilloscope and enhance your audio analysis capabilities? This portable application delivers professional-grade features in a compact package.

Key Features and Functionality

Oscilloscope transforms your PC into a professional sound analysis station, providing real-time visualization of audio waveforms. The application's intuitive interface displays detailed graphical representations of sound signals, allowing you to configure multiple parameters including gain, delay, and sweep for precise analysis.

The software supports various graph types for comprehensive study of real-time spectra, making it an invaluable tool for sound engineers and audio professionals. When you download Oscilloscope, you gain access to functionality that typically requires expensive dedicated hardware, all through a streamlined software solution.

Spectrum Analysis Capabilities

Beyond basic waveform visualization, Oscilloscope includes a sophisticated spectrum analyzer that displays the amplitude spectrum for sound received through all available channels. This functionality enables detailed frequency domain analysis, providing insights not visible through time-domain visualization alone.

The dual trace mode further enhances the application's capabilities, incorporating phase adjustment features that allow users to fine-tune data before conducting phase shift measurements. These advanced features make Oscilloscope an essential download for anyone involved in detailed audio signal analysis.

Data Capture and Export Options

Oscilloscope offers comprehensive data management capabilities, allowing users to save captured waveforms to DAT files for later reference or comparison. This feature enables detailed analysis across different signals or varied intervals for the same sound input, facilitating thorough comparative studies.

Additionally, the software allows seamless copying of waveform data to the clipboard, enabling integration with other analysis programs and reporting tools. This interoperability makes Oscilloscope a versatile component in any audio analysis workflow.

Technical Specifications

• System Requirements: Windows 7/8/10/11


• Sound Card Compatibility: Works with all standard sound cards


• Input Sources: Microphone, line-in, or any audio input device


• Visualization Modes: Single trace, dual trace, XY plot


• Analysis Tools: Spectrum analyzer, phase measurement


• Data Export: DAT file format, clipboard text data


• Installation: Portable application (no installation required)


• Size: Under 5MB

Setup and Usage Instructions

Using Oscilloscope is straightforward - simply connect your sound measurement equipment to your computer's sound card. The application works with basic microphones or more sophisticated devices that produce the sound signals you wish to analyze.

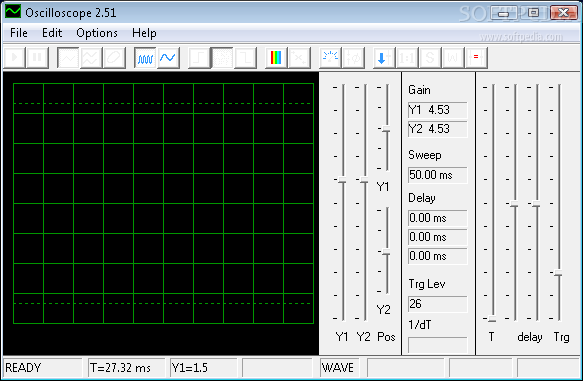

After downloading Oscilloscope, you can run it directly without installation. The main window displays a graphical representation of the sound signal and provides access to all necessary controls for configuring visualization parameters to suit your specific analysis needs.

User Interface and Controls

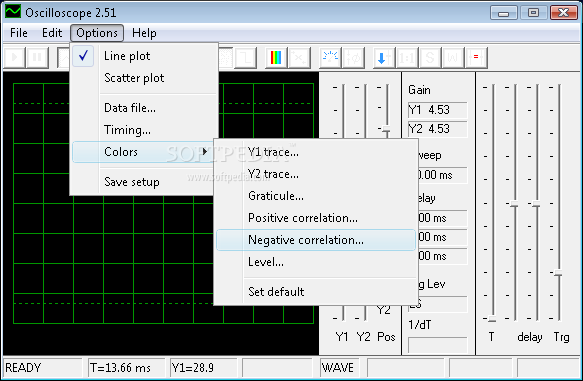

While Oscilloscope features a clean, uncluttered interface with accessible controls, it's primarily designed for users with prior experience in sound signal and spectra analysis. The layout prioritizes functionality, providing immediate access to critical parameters like sampling frequency, trigger settings, and display options.

For those looking to understand specific controls in greater depth, the included documentation offers comprehensive descriptions of each feature. This resource helps users maximize the application's capabilities and ensures proper configuration for various analysis scenarios.

Portability and Convenience

One of Oscilloscope's standout advantages is its portable nature. The application requires no installation process, allowing users to run it directly from removable devices like USB drives. This portability makes Oscilloscope an ideal tool for field technicians and professionals who need to perform sound analysis across multiple locations.

The no-installation design also ensures that Oscilloscope leaves no footprint on host systems, making it perfect for temporary use on shared or restricted-access computers. When you download Oscilloscope, you gain a versatile audio analysis tool that can be carried in your pocket and deployed instantly whenever needed.

Applications and Use Cases

Oscilloscope serves diverse professional needs across multiple fields, including:

• Audio equipment testing and calibration


• Sound system frequency response analysis


• Educational demonstrations of sound wave properties


• Acoustic research and development


• Audio troubleshooting and diagnostics


• Music and sound effect production

Ready to elevate your audio analysis capabilities? Download Oscilloscope today and transform your computer into a professional-grade sound visualization system. Experience the precision and convenience of this powerful yet compact application for all your sound signal analysis needs.
