Download OsciViewer: Free Open-Source Oscilloscope Data Processing Software

OsciViewer is a powerful, free and open-source utility developed in Java that enables engineers and technicians to efficiently acquire and process data from LeCroy9400A, Advantest TR4131, and PM3311 oscilloscopes. This lightweight application allows users to download and analyze oscilloscope data in various modes with multiple customization options, making it an essential tool for electronics professionals and hobbyists alike.

The OsciViewer download provides a comprehensive solution for oscilloscope data processing needs while maintaining a small footprint on your system. With its intuitive interface and robust functionality, this oscilloscope software streamlines the process of data acquisition, analysis, and visualization without overwhelming system resources.

System Requirements and Installation

Before you download OsciViewer, ensure your system meets the following requirements:

• Java Runtime Environment (JRE) installed


• Compatible with Windows operating systems


• Drivers available for both 32-bit and 64-bit Windows


• Minimal disk space required


• Connection to supported oscilloscope models

The installation process is straightforward and quick. During setup, you'll have the option to select the appropriate drivers for your system architecture (32-bit or 64-bit). Once installed, the oscilloscope processing software is immediately ready for use with compatible devices.

User-Friendly Interface

OsciViewer features a clean, standard window interface with a logically organized layout. The design prioritizes functionality while maintaining accessibility for users of all experience levels. Navigate through various options and settings with ease, allowing you to focus on data analysis rather than complex software operation.

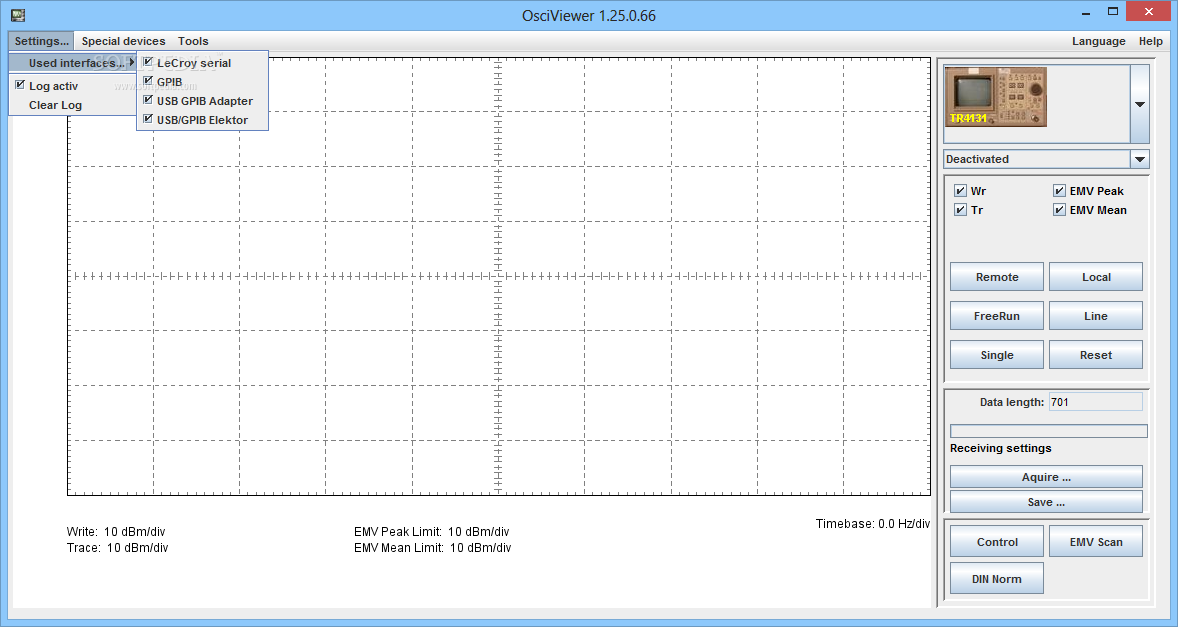

Getting started is as simple as selecting your interface type from the "Settings" menu, where you can choose from:

• LeCroy serial connection


• GPIB (PCI, USB) from National Instruments or compatible devices


• USB-GPIB proprietary adapter


• USB/GPIB Elektor connection

Data Acquisition and Visualization

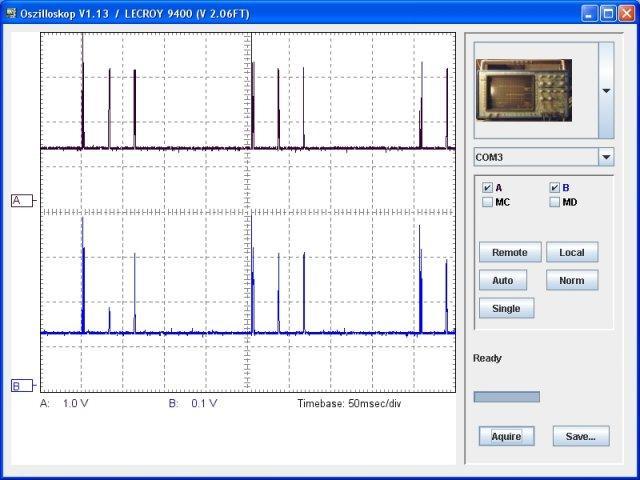

Once connected to your oscilloscope, OsciViewer efficiently processes incoming data and generates precise graphical projections. These visual representations make complex waveform data easier to interpret and analyze. The oscilloscope data software renders graphs swiftly, allowing for real-time analysis in many applications.

Users can download captured data for later review or export it to other formats for further processing. This flexibility makes OsciViewer an excellent companion tool for documentation and reporting purposes in laboratory or educational settings.

Analysis Modes and Functionality

OsciViewer offers multiple analysis modes to suit different measurement scenarios:

• Remote mode - control and acquire data from a connected device


• Local mode - work with previously saved data


• Normal mode - continuous data acquisition


• Single mode - capture one-time events


• Auto mode - automated acquisition with defined parameters

The software allows for one-click reset of settings, making it easy to start fresh configurations when switching between different measurement tasks. This streamlined approach saves time and reduces the likelihood of configuration errors.

Advanced HP8620 Controls

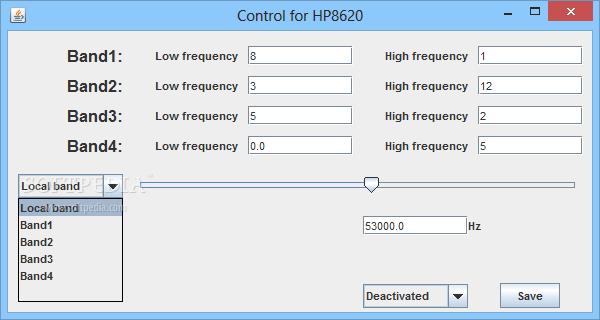

For users working with HP8620 equipment, OsciViewer provides specialized controls for:

• Band selection


• Low frequency configuration


• High frequency settings


• Sweep parameters (start, stop, time)

EMV Board Scan Analysis

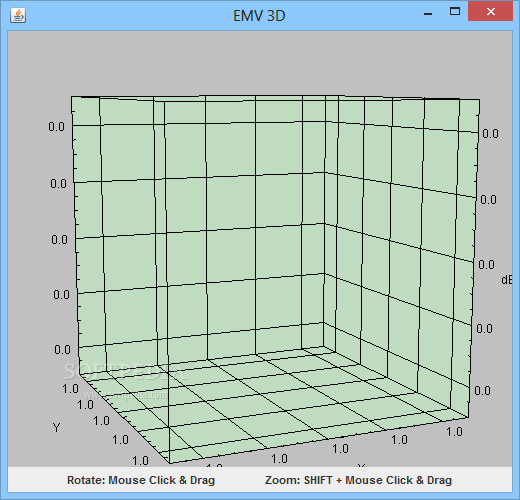

One of OsciViewer's standout features is its EMV board scan analyzer. This sophisticated tool can display and save three-dimensional graphical representations of board scans, providing insights that might be difficult to perceive in traditional two-dimensional views. This functionality is particularly valuable for electromagnetic compatibility testing and troubleshooting.

Performance and Compatibility

During extensive testing, OsciViewer demonstrated excellent compatibility with the latest Java versions and Windows operating systems. The oscilloscope software download installs quickly and runs efficiently, maintaining minimal impact on system resources even during intensive data processing tasks.

The application's ability to scan data and render complex graphs with minimal latency makes it suitable for both educational purposes and professional environments where time-sensitive measurements are critical.

Open-Source Advantages

As an open-source solution, OsciViewer offers several distinct advantages:

• Free to download, use, and modify


• Transparent code base for security verification


• Potential for community improvements and extensions


• No licensing restrictions for commercial or educational use

The open-source nature of this oscilloscope data software ensures longevity and adaptability as technology evolves, making it a sustainable choice for long-term implementation in various technical environments.

Conclusion

OsciViewer offers a simple yet powerful solution for processing and analyzing data from LeCroy9400A, Advantest TR4131, and PM3311 oscilloscopes. Its lightweight design, combined with robust functionality, makes it an excellent choice for electronics professionals, educators, and hobbyists who need reliable oscilloscope data processing capabilities without complex software overhead.

Download OsciViewer today to experience a free, open-source tool that simplifies oscilloscope data acquisition and analysis while providing the advanced features needed for professional-grade measurements and visualization.
