Pipe Flow Wizard

Pipe Flow Wizard is a software tool that might seem a bit tricky at first, but trust me, it’s pretty straightforward to use! It lets you simulate different scenarios for a network of pipes by doing multiple flow and pressure drop calculations all at once.

Easy Installation Process

Installing this program is quick and easy. You shouldn’t run into any problems during the setup. However, the interface can feel a bit cluttered since it shows all available options through various dialog boxes and buttons.

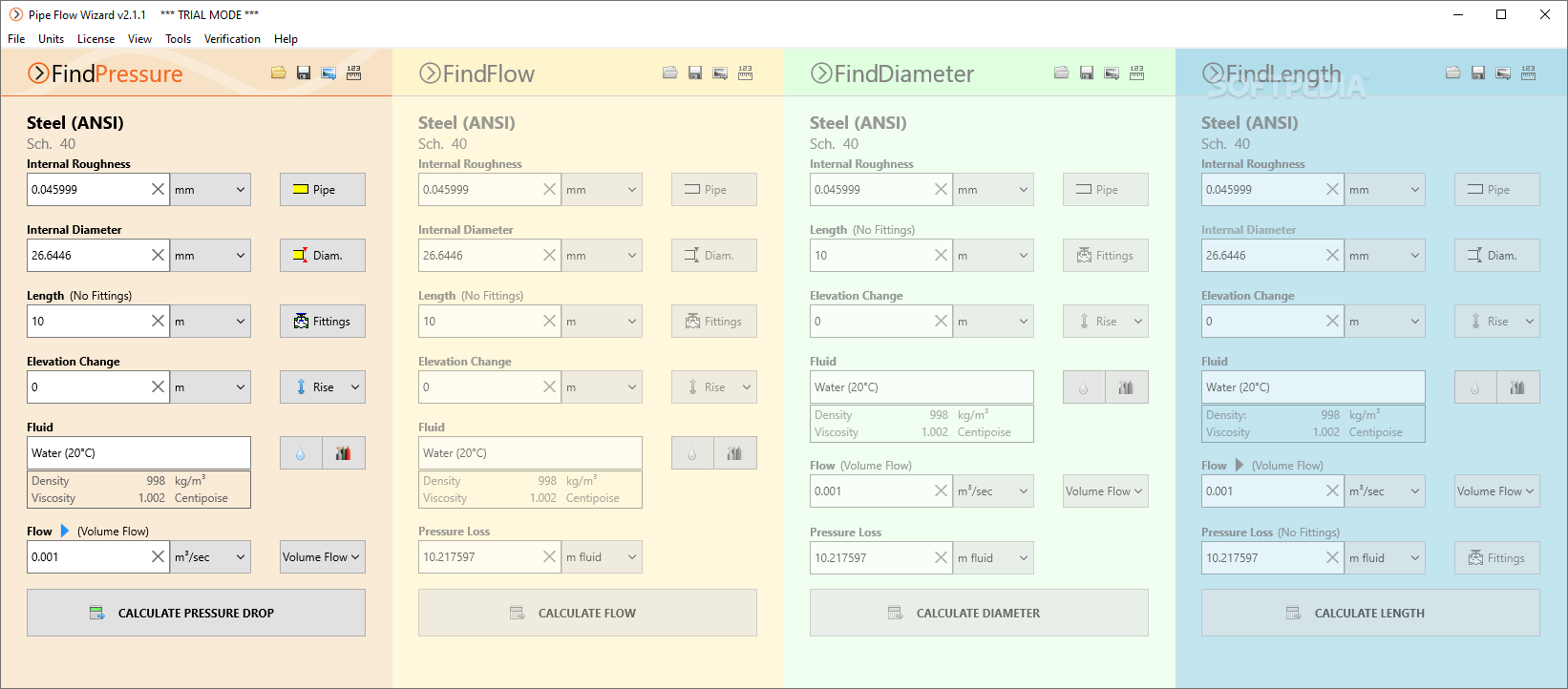

Run Multiple Calculations

You can perform up to four flow and pressure drop calculations simultaneously. The best part? They’re color-coded so you can easily tell which is which!

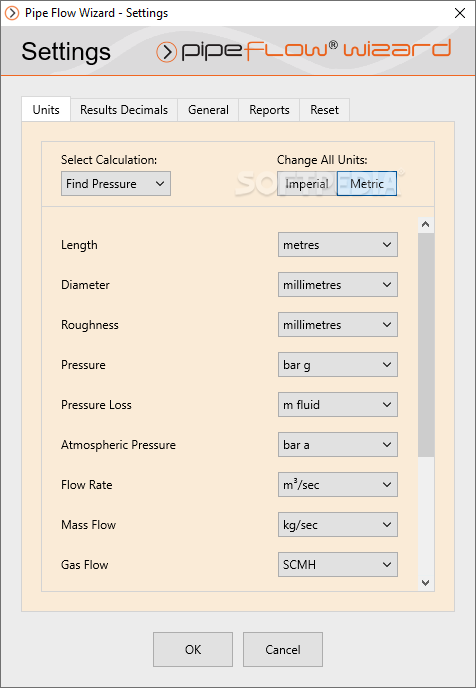

Select Measurement Units

Getting started is simple! Just pick your measurement unit—metric or imperial—and set things like internal roughness, pipe material, internal diameter, length, elevation change (whether it’s going up or down), and the flow rate.

Quick Results at Your Fingertips

The pressure drop gets calculated with just one click. Plus, you’ll also find details like the flow type, Reynold's number, friction factor, and fluid velocity. If you want to keep your results handy, you can print them out or copy them as text or images. You can even save your entries to a file for later use!

Diverse Database Access

This tool gives you access to a database filled with different liquids and gases where you can check their temperature, viscosity, and density. Instead of juggling four panels on your screen, you have the option to view just one if that’s easier for you.

No Performance Issues

The great thing about Pipe Flow Wizard is that it won’t slow down your computer. It runs smoothly without hogging CPU or RAM resources. You won’t experience any lagging or crashes while using it!

If you're looking for an efficient way to calculate pressure, flow rates, diameters, and lengths in pipe networks, Pipe Flow Wizard has got you covered!
