QMSys Tolerances and Gauges

QMSys Tolerances and Gauges is a handy tool that helps you get accurate calculations and tolerances for gauges. If you're involved in designing, making, or managing gauges and tools, this software can save you a ton of time and money!

Why Use QMSys?

This software is super useful because it streamlines the whole process of figuring out sizes and tolerances based on international standards. It gives you detailed info about workpieces, setting rings, plug gauges, and more. With QMSys, you're not just calculating; you're working smarter.

What Can You Do with It?

So what exactly can QMSys Tolerances and Gauges help you with? Here are some cool activities:

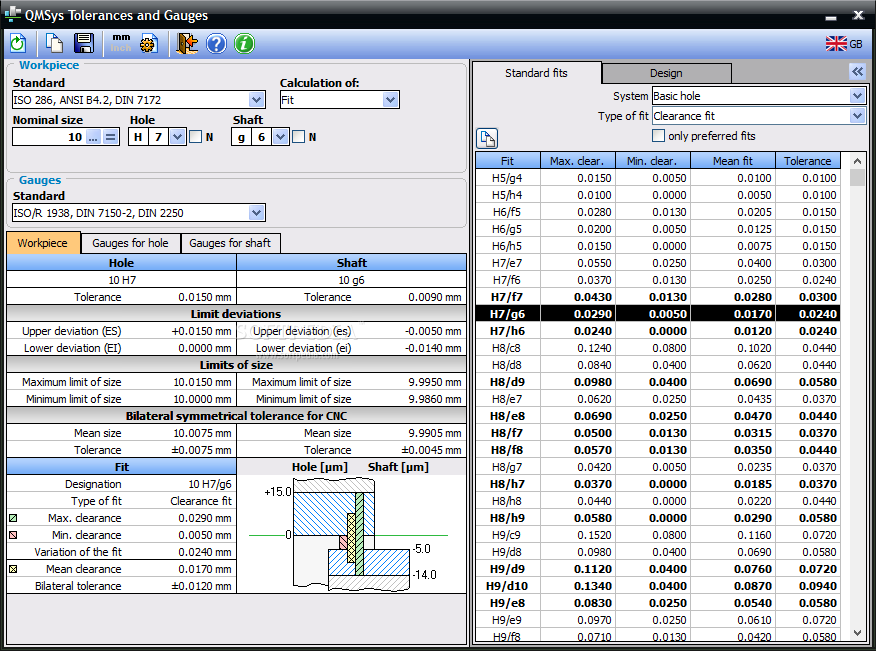

• Measurement and Control: Check workpieces with tolerances based on ISO 286 to find nominal sizes and limit values.

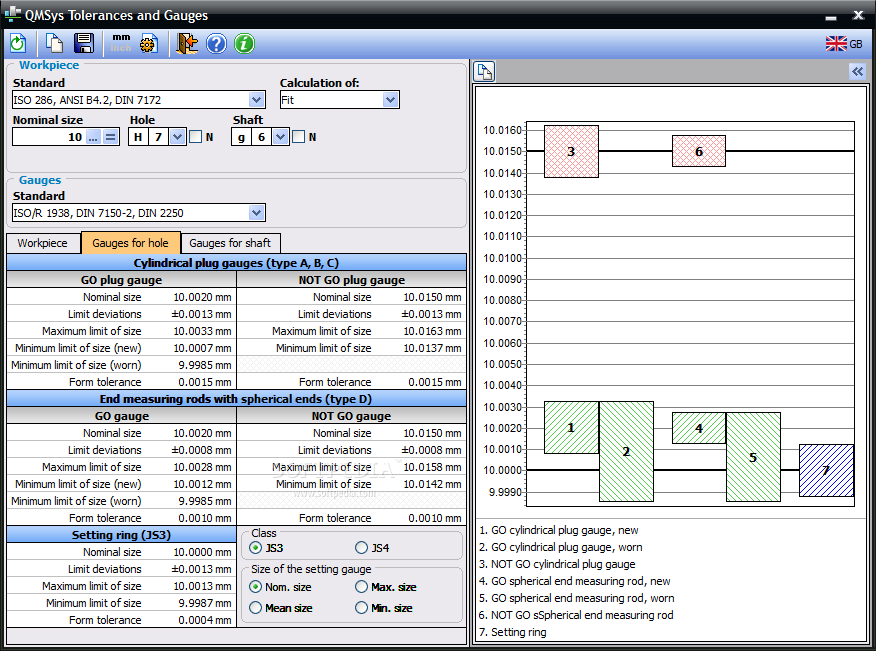

• Gauge Inspection: Inspect working gauges to determine their nominal sizes and limit values.

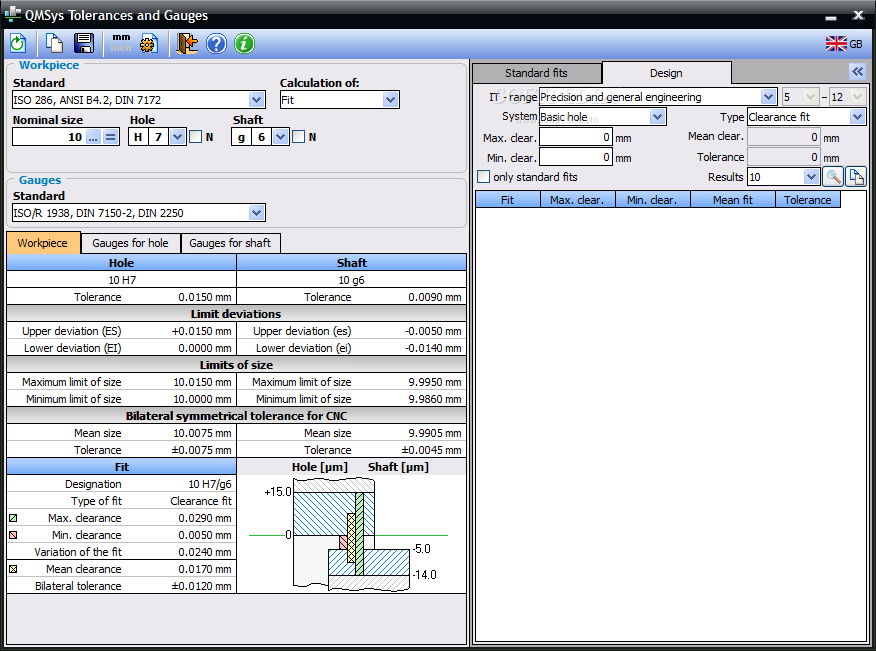

• Product Design: Design products and select the right tolerances for your needs.

Tolerances Included in QMSys

The program comes packed with lots of important data on tolerances and fits:

• Tolerances for linear sizes up to 3150 mm according to ISO 286-1:1988.


• Tolerances for linear sizes from 3150 mm to 10000 mm as per DIN 7172:1991.


• Plug gauges up to 500 mm following DIN 7150-2:1977, ISO/R 1938.


• Spherical end gauges up to 500 mm also under DIN standards.

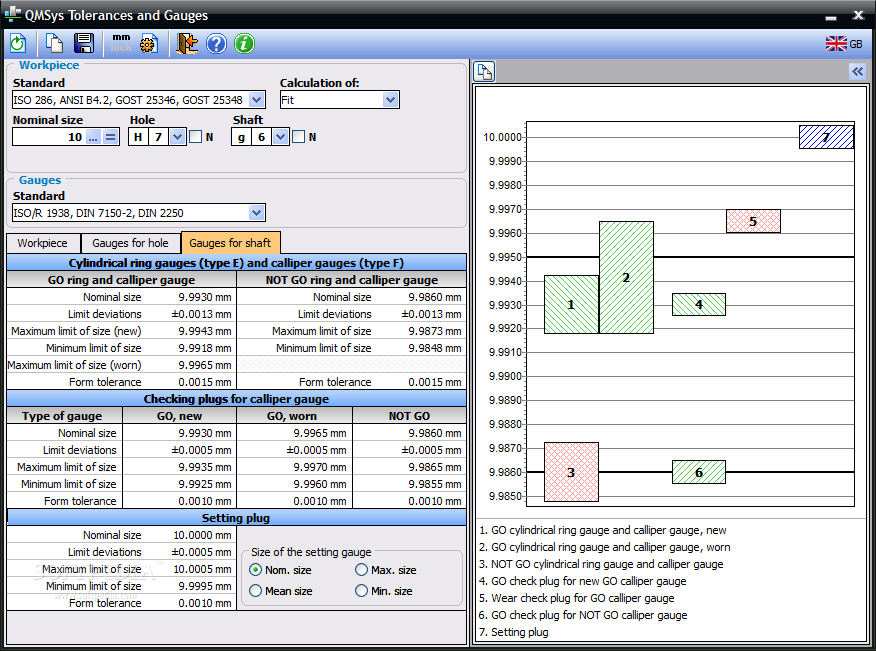

• Ring gauges up to 500 mm according to relevant standards.


• A range of checking plug gauges within the same size limits.

Easily Save Your Results!

You can even save your calculation results in a file or copy them over to another program. Want to check it out? Download it now from SoftPas. It's a simple way to make your gauge calculations easier!
