Quad Antenna Design

Quad Antenna Design is a handy little tool made for all the antenna fans out there who want to build quad antennas. It helps you figure out things like frequency, wiring, elements, and boom length to get your antenna just right.

Easy-to-Use Interface

The interface is super simple, which is great! But don't be fooled—just because it's simple doesn’t mean it’s a breeze to use. This software was built with antenna enthusiasts and specialists in mind. So, you’ll need to enter quite a few details to get the calculations spot on.

Main Features of Quad Antenna Design

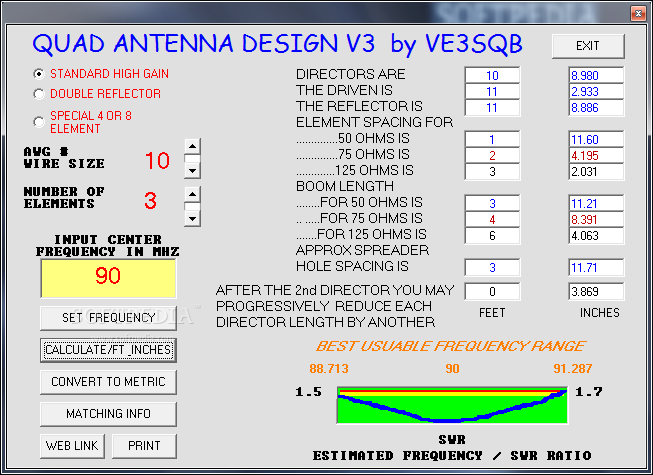

The main job of this app is to give you all the sizing patterns needed to build a solid five-element quad antenna for amateur radio use. To kick things off, you just need to enter the center frequency range for your quad antenna. The default setting is 29MHz. Once you've done that, hit the 'Calculate' button, and voilà! You’ll see all the important measurements pop up in both feet and centimeters.

Tuning and Spacing Options

Now, keep in mind that how well your antenna performs can change depending on how much space you have between its main elements. You can't just set it and forget it—you'll need some tuning and extra adjustments along the way.

Customize Your Settings

Tuning also affects how the driven elements work together. That’s why this software lets you adjust the length and spacing for both the boom and elements so you can find that sweet spot for frequency and heat ratio.

Convert Measurements Easily

If you're into imperial measurements but need them in metric instead (or vice versa), don’t worry! Just click a button, and you’re good to go.

A Must-Have for Enthusiasts

Quad Antenna Design really caters to a specific crowd: antenna enthusiasts and engineers. If you're not familiar with this kind of software, it might take some time getting used to it. But once you've got the hang of it, you'll find it incredibly useful for getting precise data on how to position quad antennas for optimal signal reception. Download here!
