Robot4

Robot4 is a user-friendly software tool that helps you calculate the angles needed to move a robotic arm from one spot to another. It’s super simple, making it easy for anyone to use!

Easy-to-Use Interface

This tool has an intuitive interface, so you can solve your calculation problems in just a few steps. You can easily input your data directly from the main window, which is pretty cool.

Understanding Inverse Problems

The application is designed around the Inverse Problem approach. What does this mean? Well, it knows where the robotic arm starts and where it needs to end up. Then, it figures out how to get there!

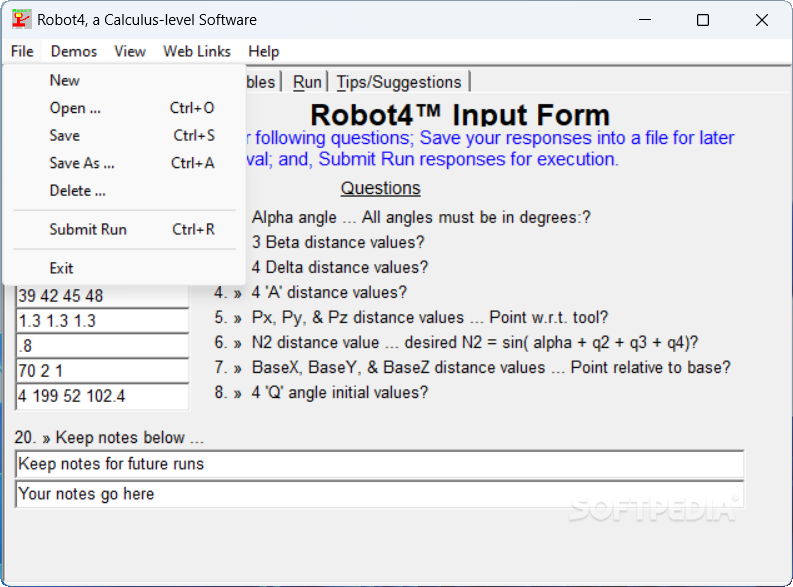

Inputting Your Data

Before you kick off the calculations, you'll need to input some values like the alpha angle and various distances—think beta, delta, Px, Py, Pz, Base X, Base Y, and Base Z. These help guide the calculations.

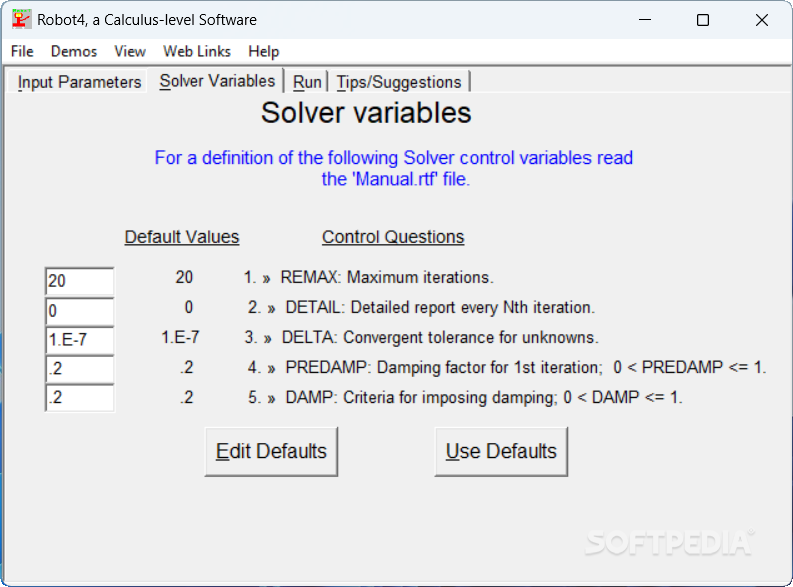

Setting Movement Variables

You’ll also want to provide info on movement variables like the maximum number of iterations you want and how precise you want your results (that’s called converged tolerance). Don’t forget about the damping factor too!

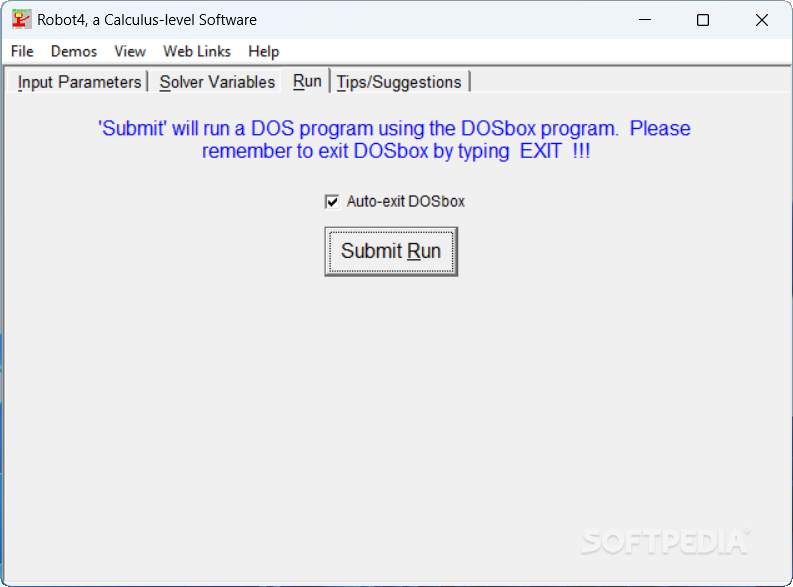

Testing Your Data

This program allows you to test if your entered data for calculating angles is correct by submitting it for compilation. It’s a good idea to save your input data into a text file. That way, if something doesn’t work out right away, you know what needs tweaking.

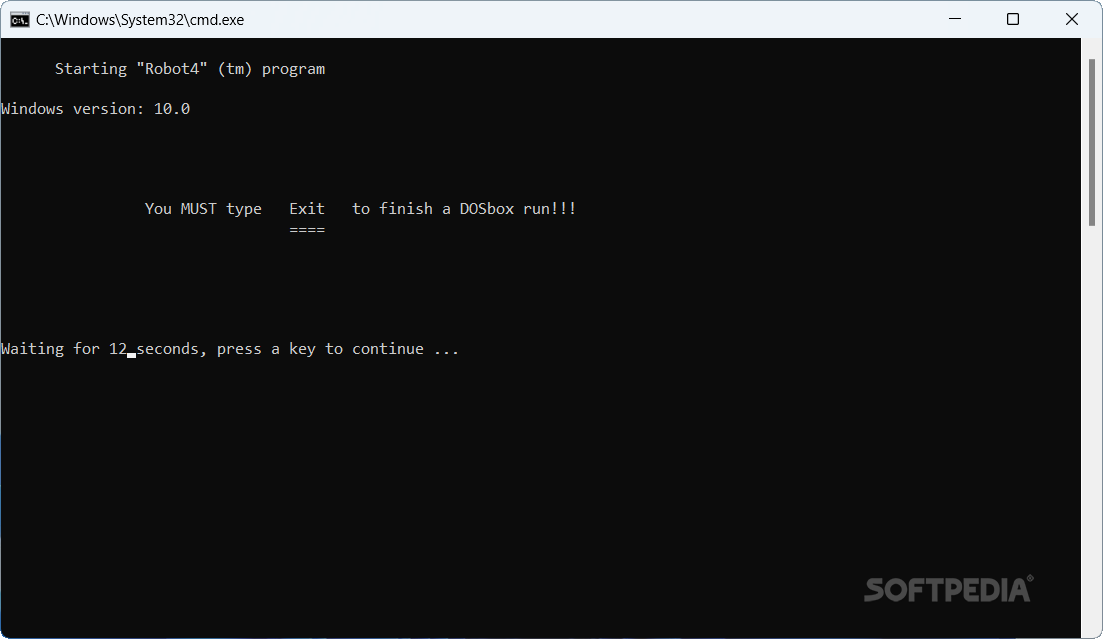

Using DOSbox for Compilation

The cool part? Robot4 doesn’t compile everything in its main window. Instead, it opens up a DOSbox (that’s like a command prompt shell) for that process! You can watch how everything goes and make adjustments as needed.

A Snappy Tool for Robotics!

If you're looking for a quick way to calculate movement angles of a robotic arm, Robot4 is your go-to tool! Just enter those multiple values on its main window; it compiles fast and gives you almost instant feedback on whether your data checks out or not.

If you're ready to try it out yourself, download Robot4 here!
