Transmission Line

Transmission Line is a cool tool that can make learning science a lot easier, especially when it comes to physics. We all know how tough it can be to wrap your head around these concepts in school. But with this software, you get a hands-on way to see what's happening in an electric circuit!

Easy Access and No Installation Needed

The best part? You don’t even need to install the application! It's not bundled in a deployment package, so you can just carry it on a USB flash drive and use it wherever you go. Just make sure the computer you’re using has Java Runtime Environment installed.

User-Friendly Interface

When you first open Transmission Line, you'll see the main window pop up along with a panel that gives you some info about what the app does. Honestly, though, be prepared to spend some time getting to know all its options and simulation features. The initial description is pretty basic.

Interactive Simulations at Your Fingertips

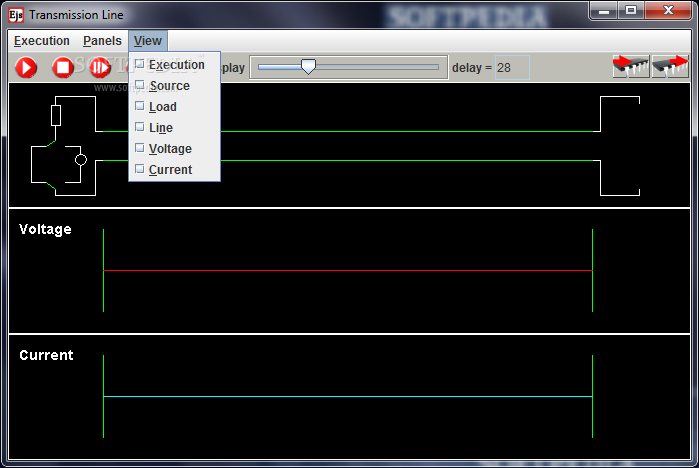

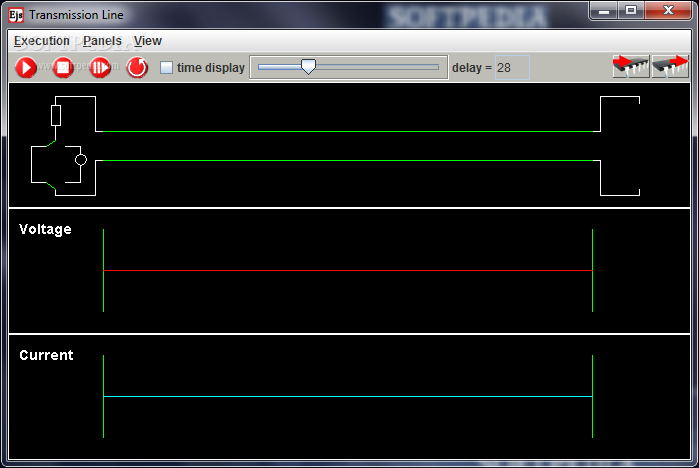

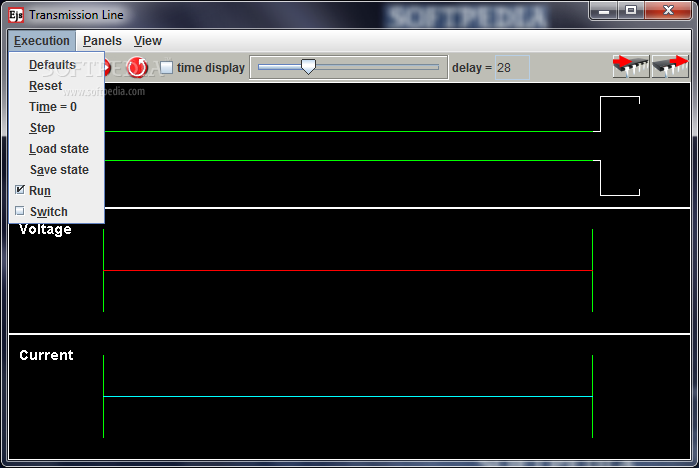

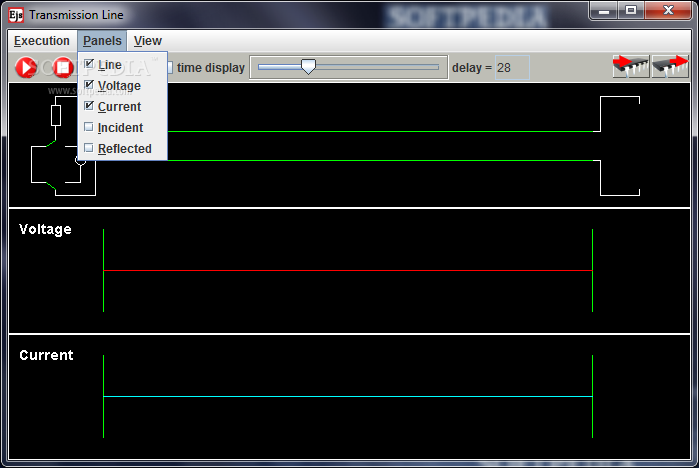

The main window shows a sample electric circuit with graphs for voltage and current. You can also pull up graphs for incident and reflected waves if you're feeling adventurous! Plus, there are simulation playback controls and a speed slider if you want to slow things down for a closer look.

No Need to Panic!

If nothing happens when you hit play, don’t sweat it! The simulation only starts once you connect wires at the source. The electric circuit setup is interactive, letting you place different elements for various results while defining several values along the way.

Diving Deeper with Context Menus

You’ll find more details through the rich context menu where additional data sets are available. You can even save your current state for later analysis! Want to share your findings? The app lets you save snapshots of your simulations or capture animated GIF files too! Just keep in mind that video recording doesn’t always catch everything—it tends to grab just static representations of the circuit.

A Handy Learning Tool!

In conclusion, Transmission Line is super useful for grasping some physics principles. However, you'll need plenty of patience as you explore its features. The interactive simulations offer great opportunities for learning, but expect some rough edges here and there!
