VariCAD
VariCAD is a cool CAD software that helps you whip up 3D or 2D drawings, especially if you're into mechanical engineering. It has a lot of features, so it might look a bit busy at first. But don't worry, once you get the hang of it, it's super handy!
Getting Started with VariCAD
To kick off a new project, you first choose whether you want to work in 3D or 2D. After that, select your measurement units—millimeters or inches—and then pick the drawing format and scale. Easy peasy!
Drawing Features
With VariCAD, you can easily insert objects from files like DWB or STP. You can also copy, paste, or delete parts as needed. Just drag and drop them into your workspace! Plus, if you mess up, you can undo or redo actions and even change colors for your drawings.
Creating 2D Designs
If you're focused on 2D designs, you'll love how you can adjust the rotation angle of inserted objects. You can add text lines using special symbols like diameter signs and Greek letters. There's even a built-in calculator for those tricky math problems!
Working with Layers
You can manage multiple layers in your design and customize things like color and line type for better visibility. Editing is easy too—you can trim sections or extend lines however you need.
Packing in More Functions

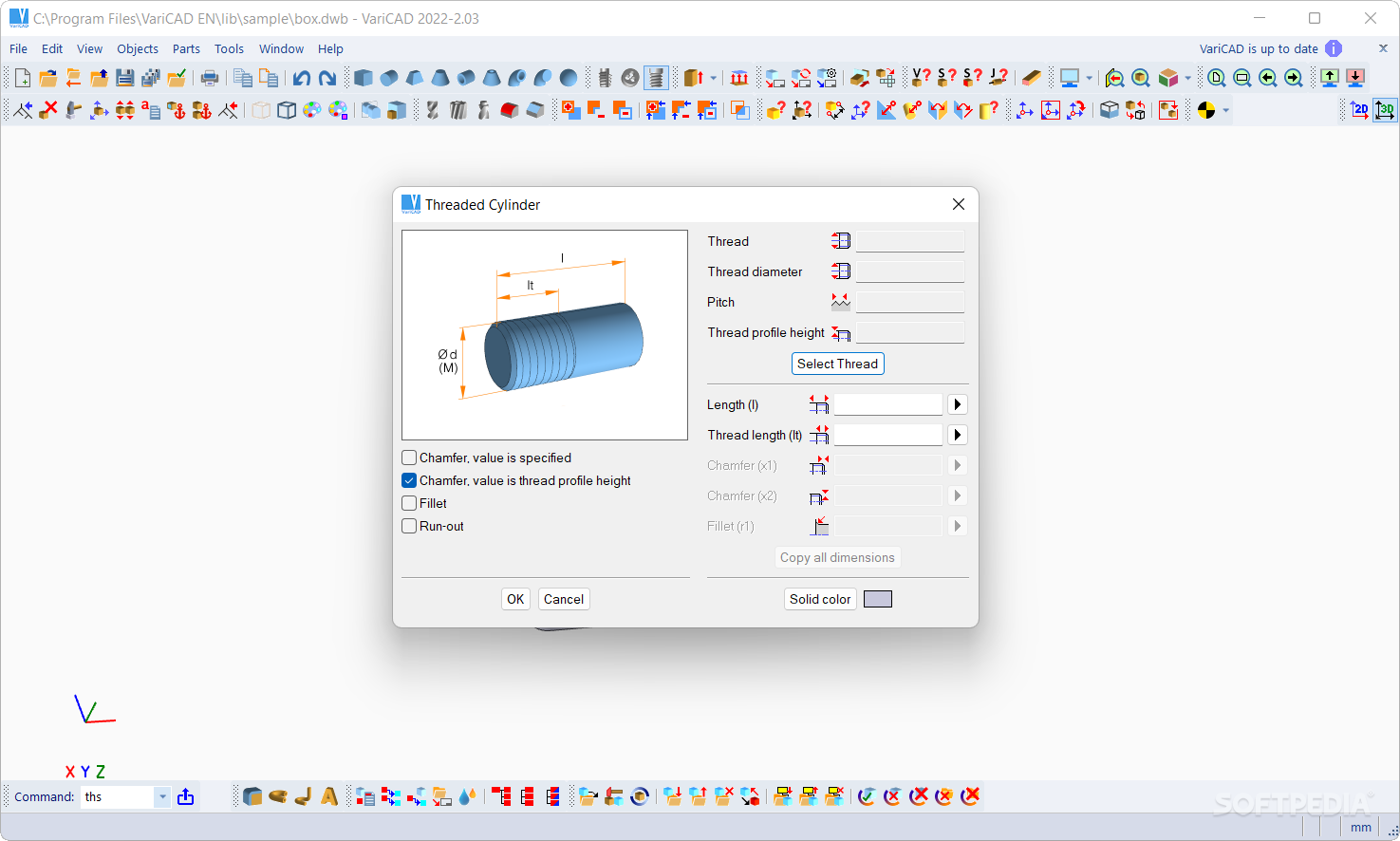

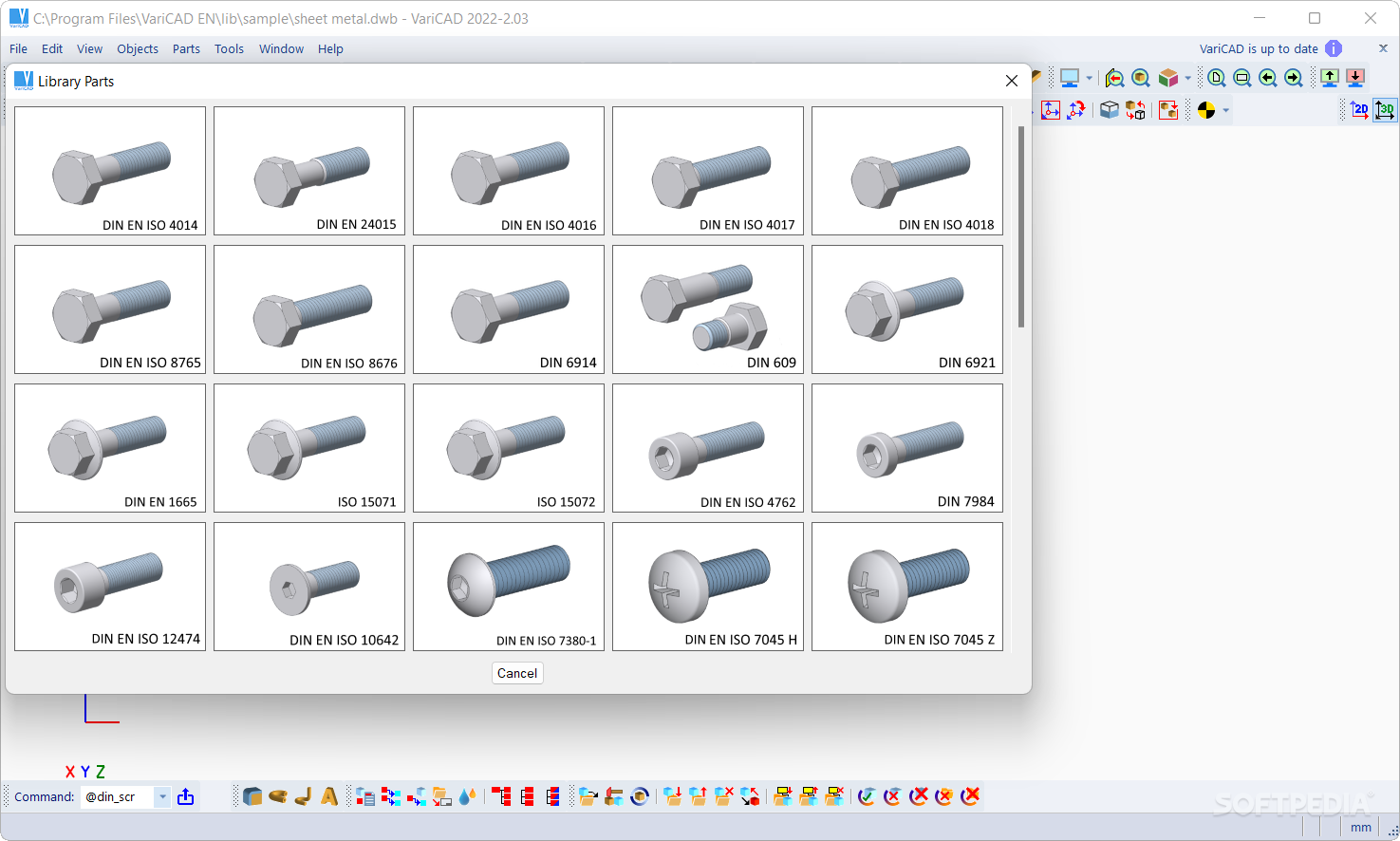

This software also lets you fill areas with hatching options and use preset mechanical parts like screws and nuts without breaking a sweat! Want to print your designs? No problem! You can print everything visible on your screen.
Diving into 3D Designs

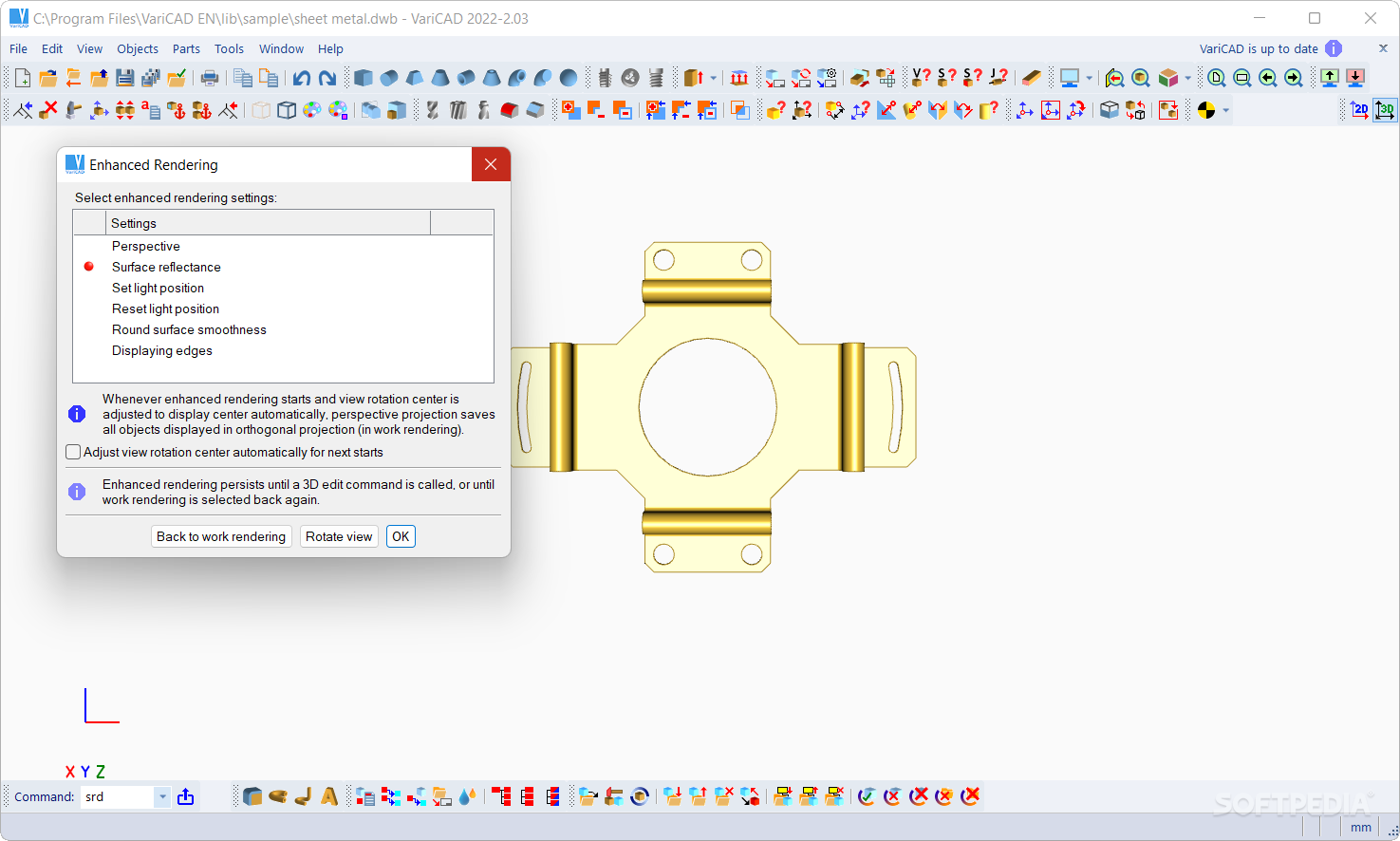

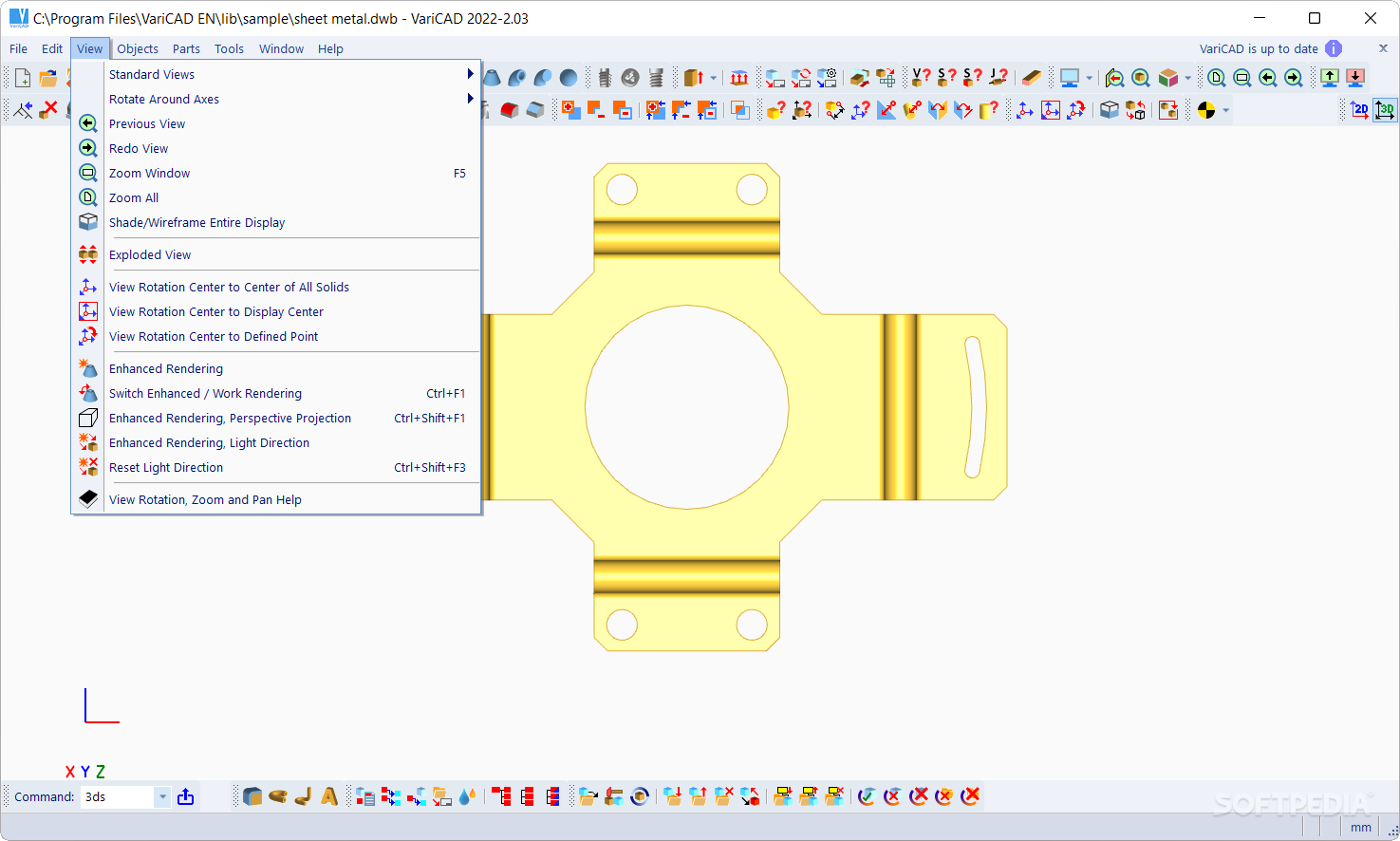

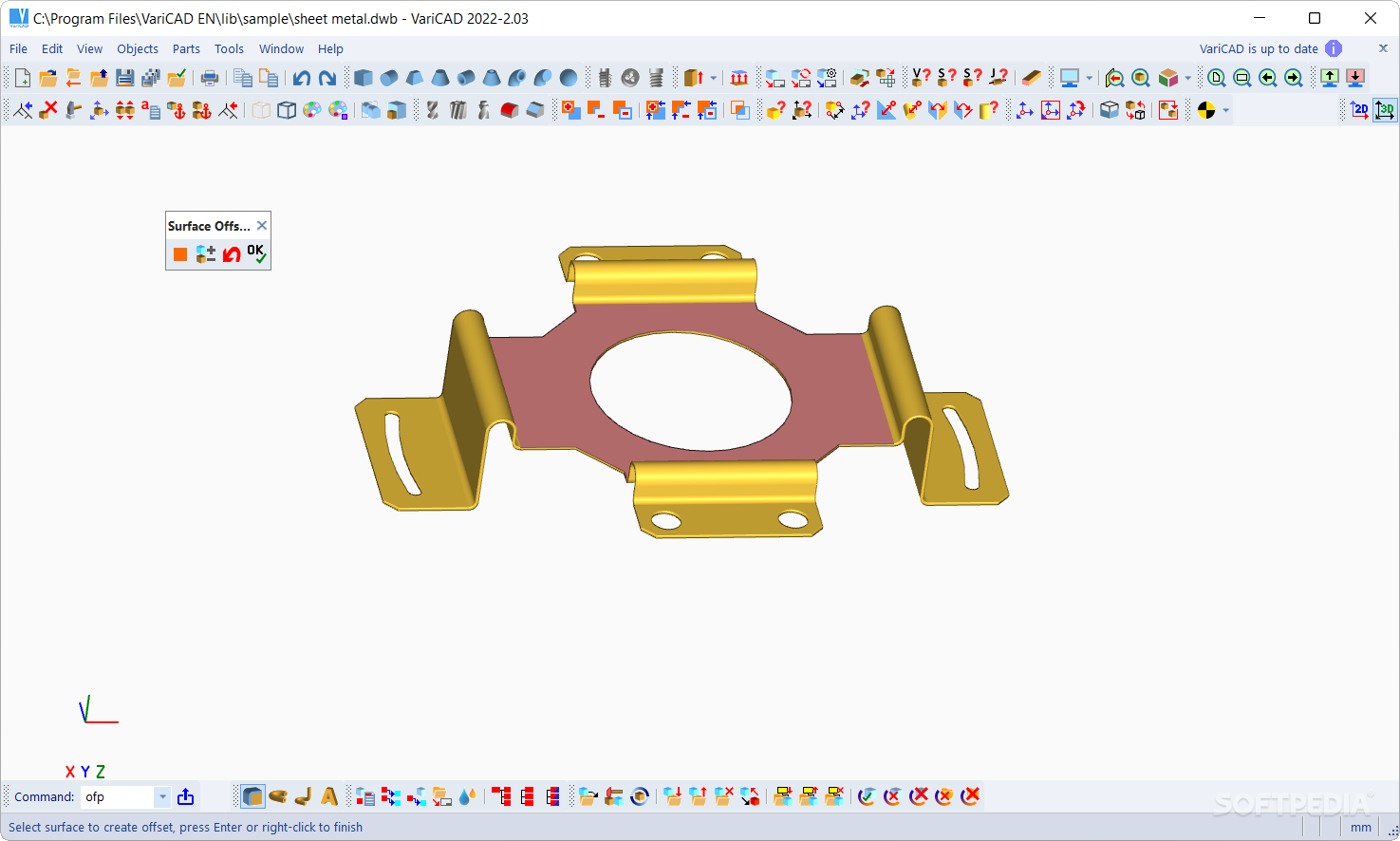

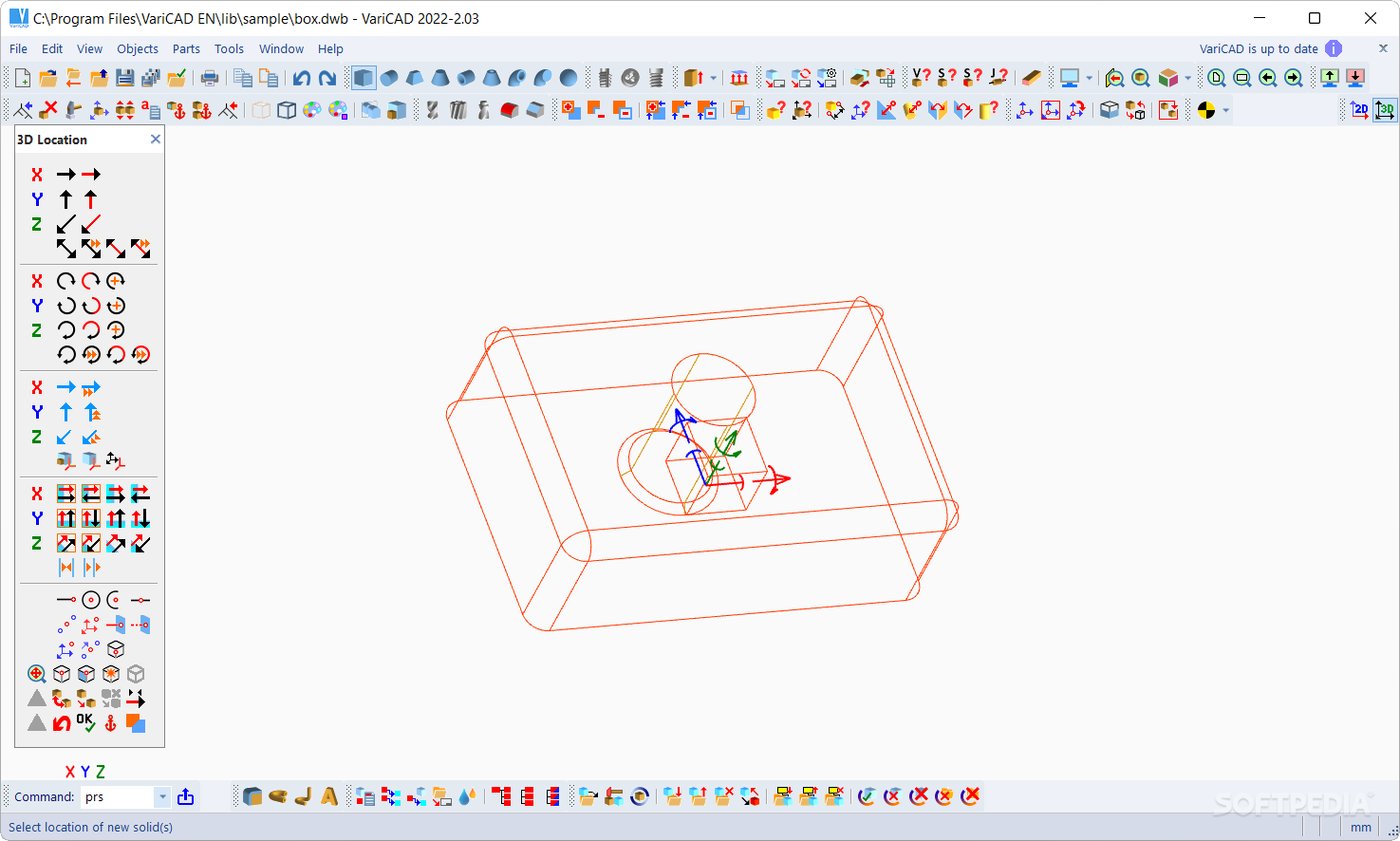

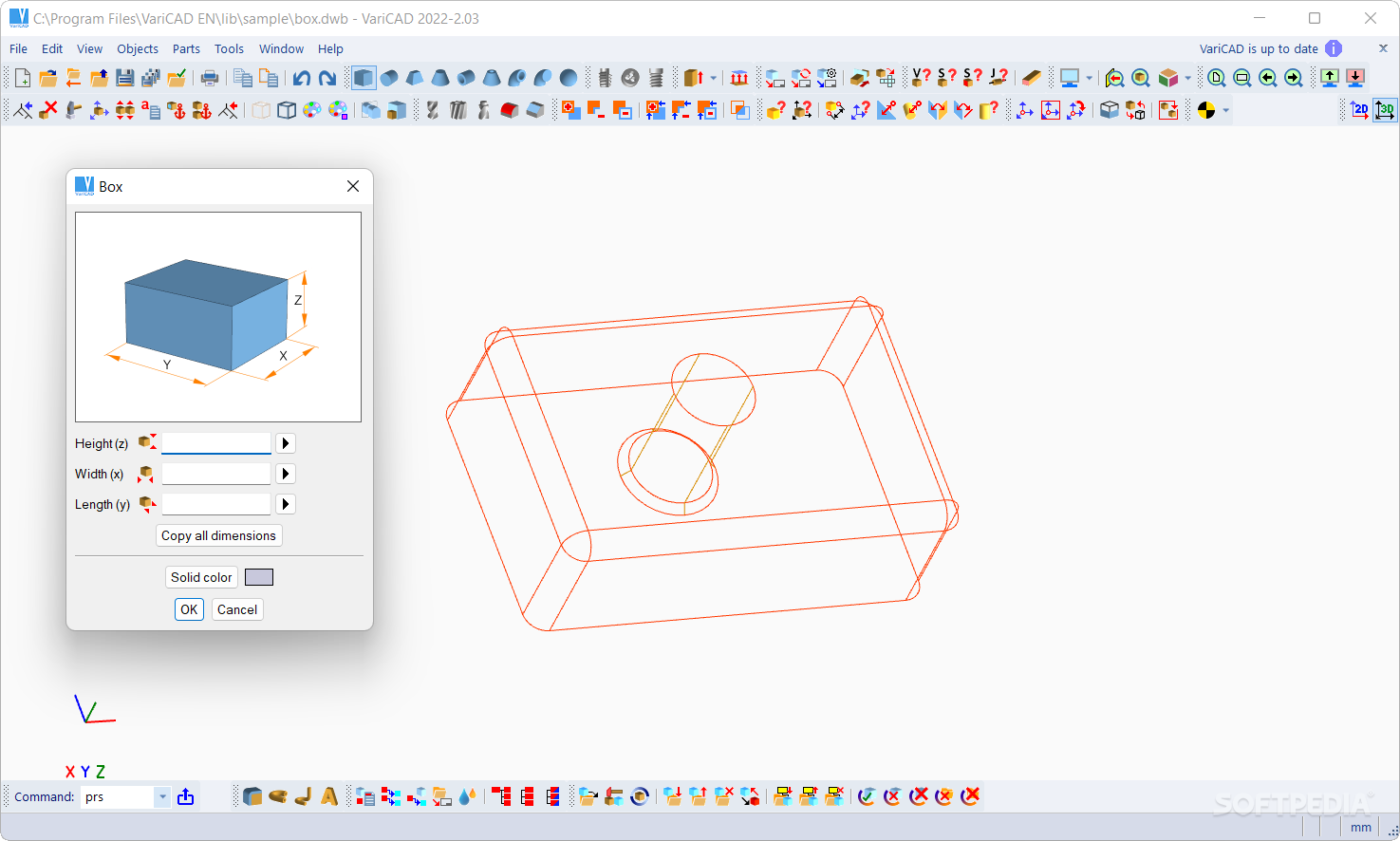

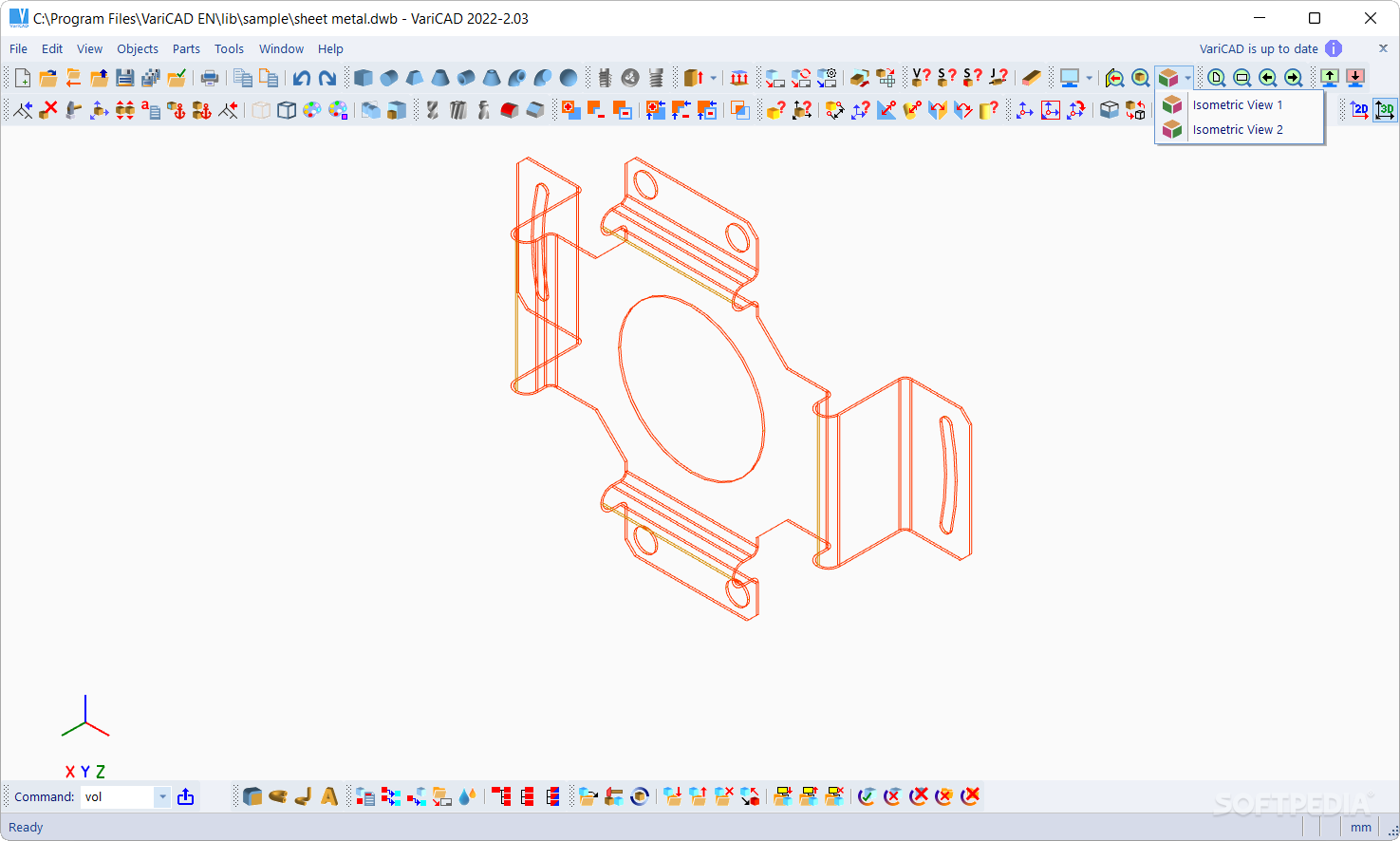

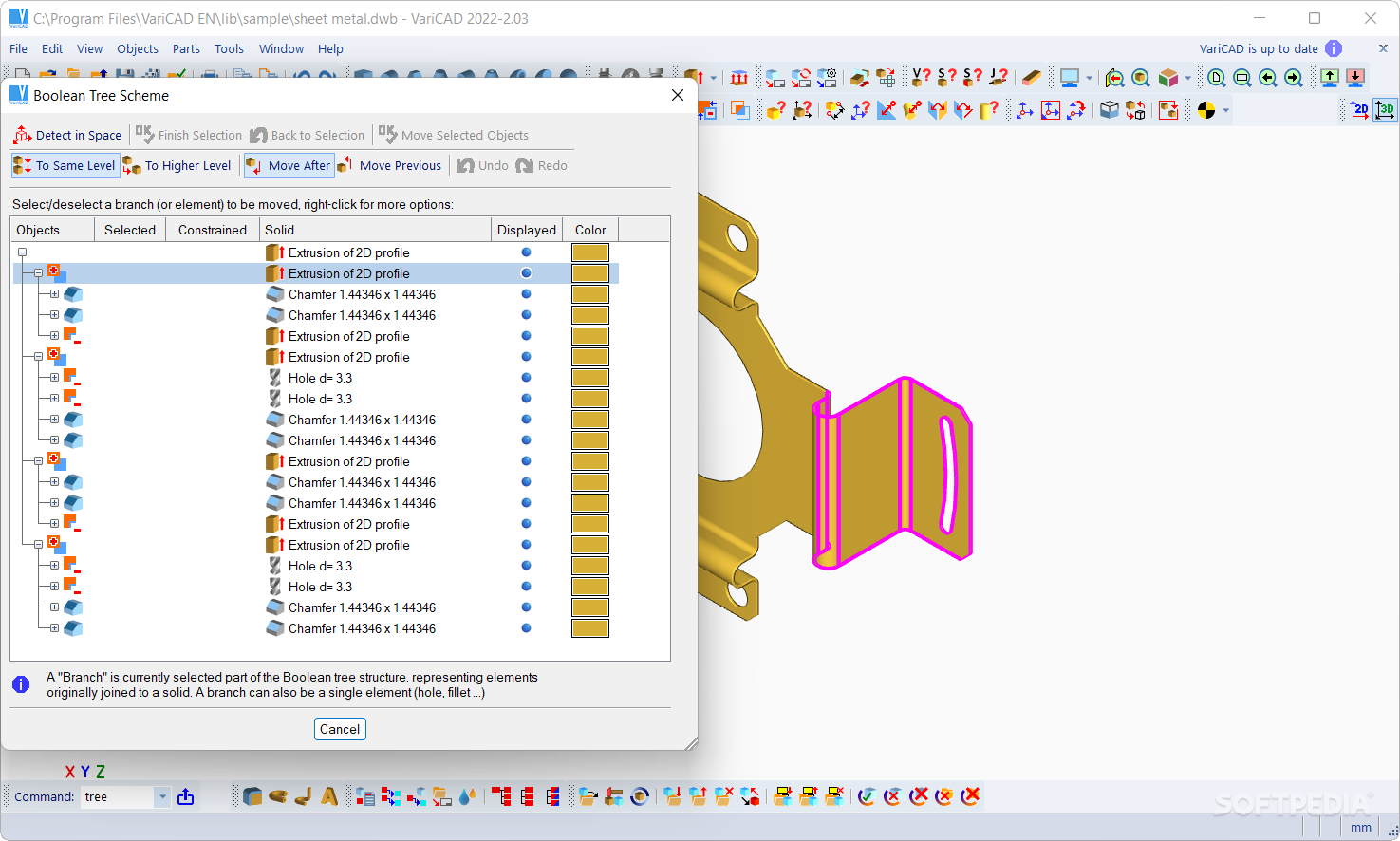

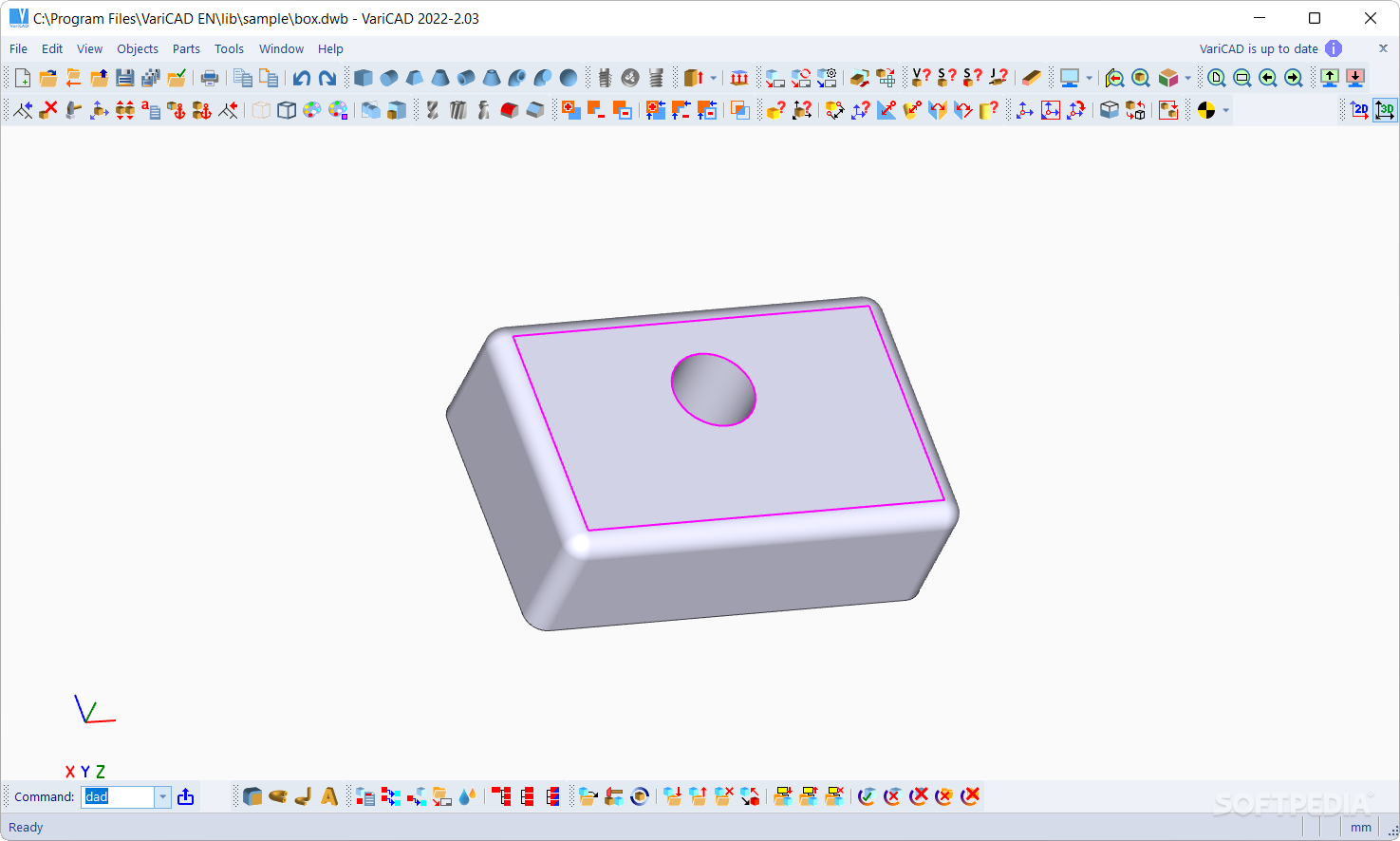

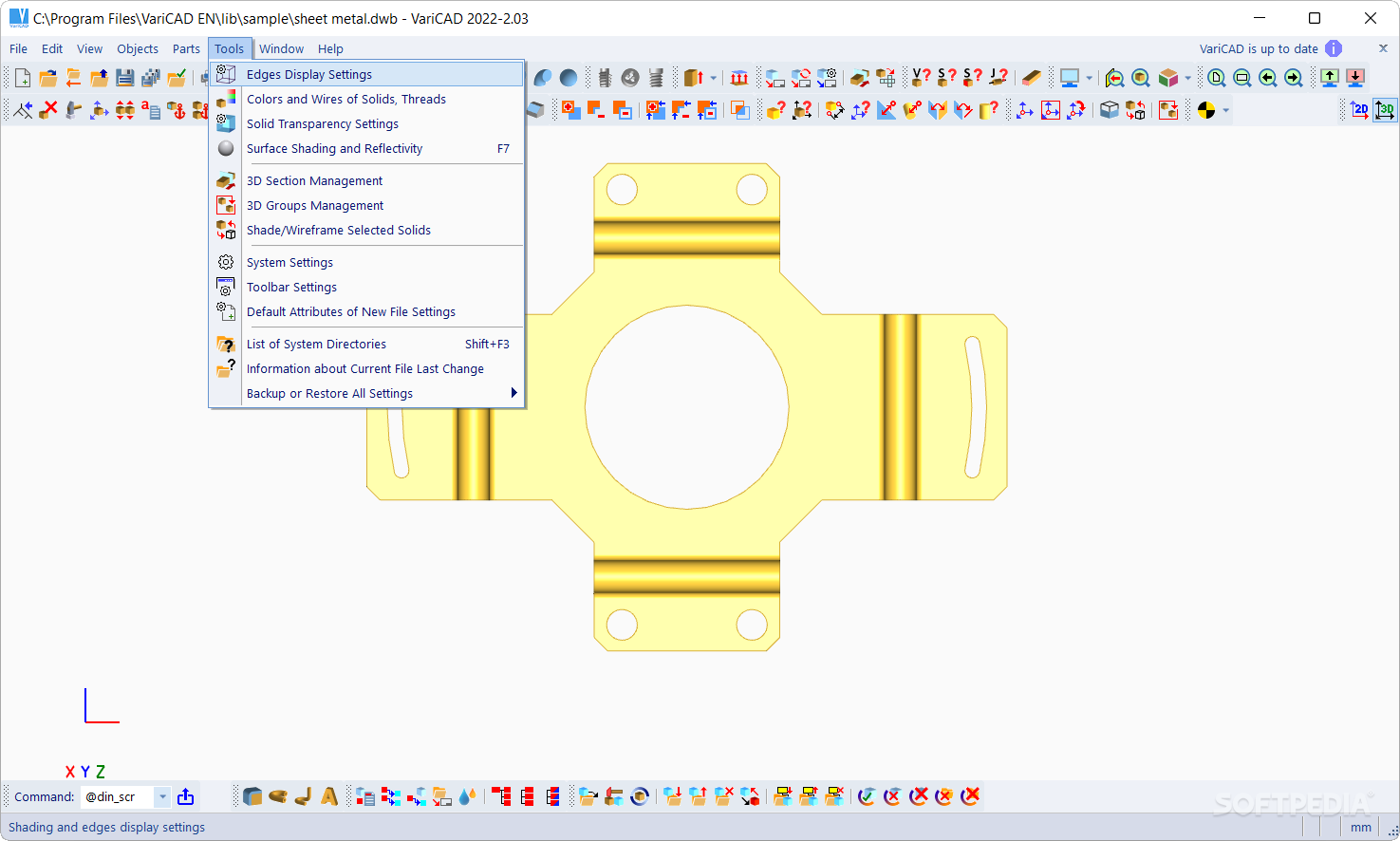

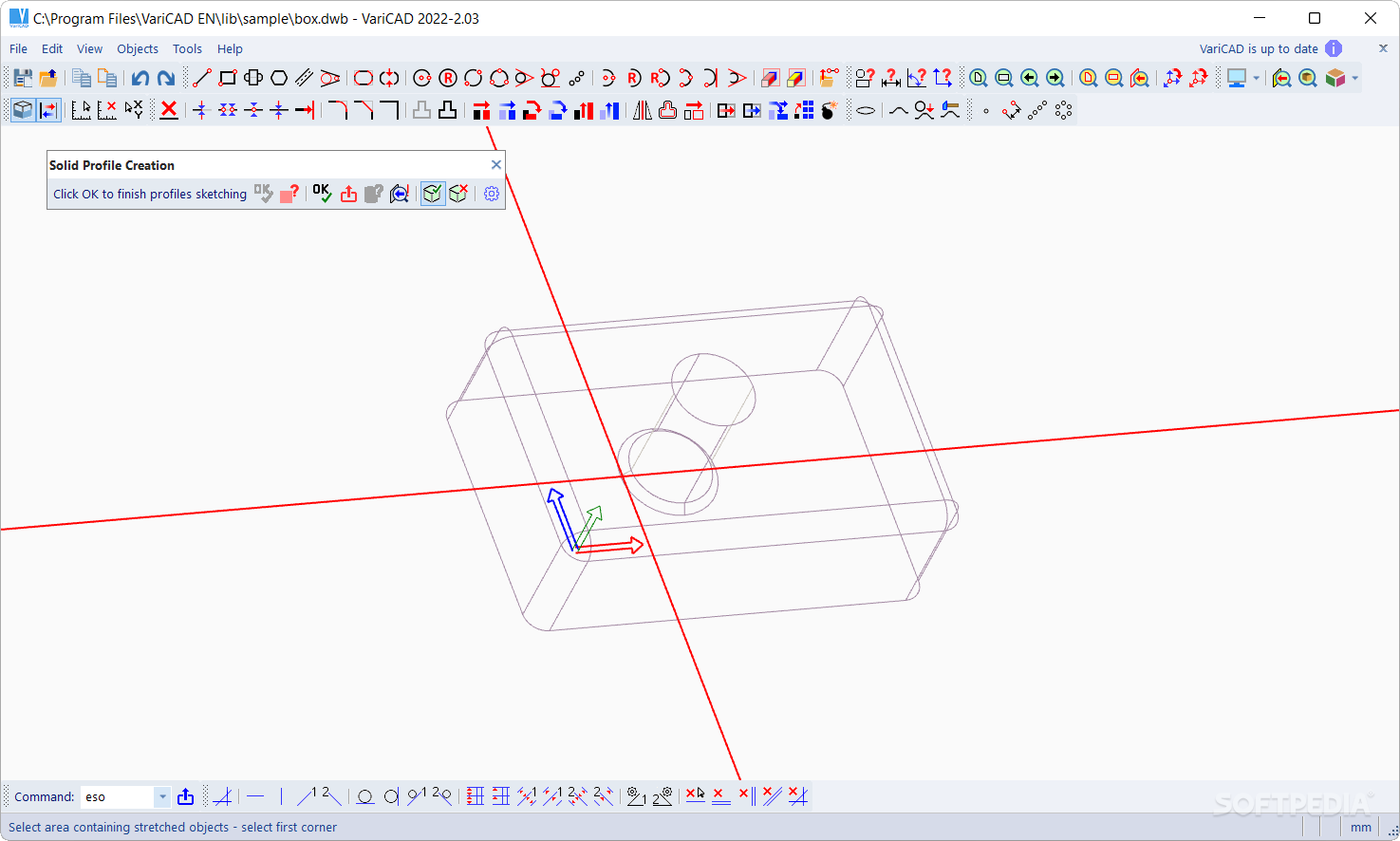

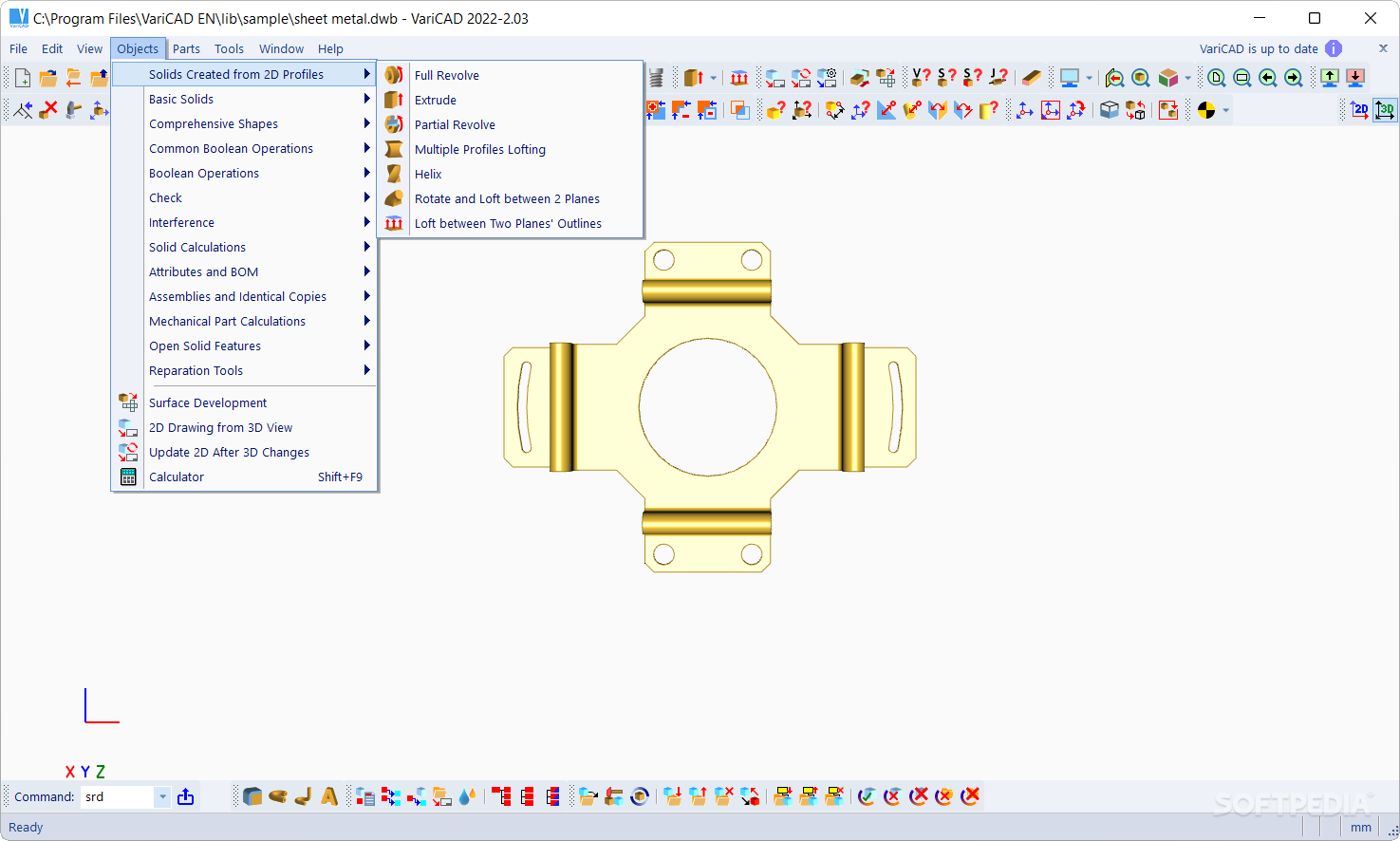

If you're all about creating 3D designs, VariCAD has dedicated tools to help with shaded views and wireframes. You can rotate models, fix errors if they pop up, combine solids into one object, define dimensions—it's all there!
Exporting Your Work

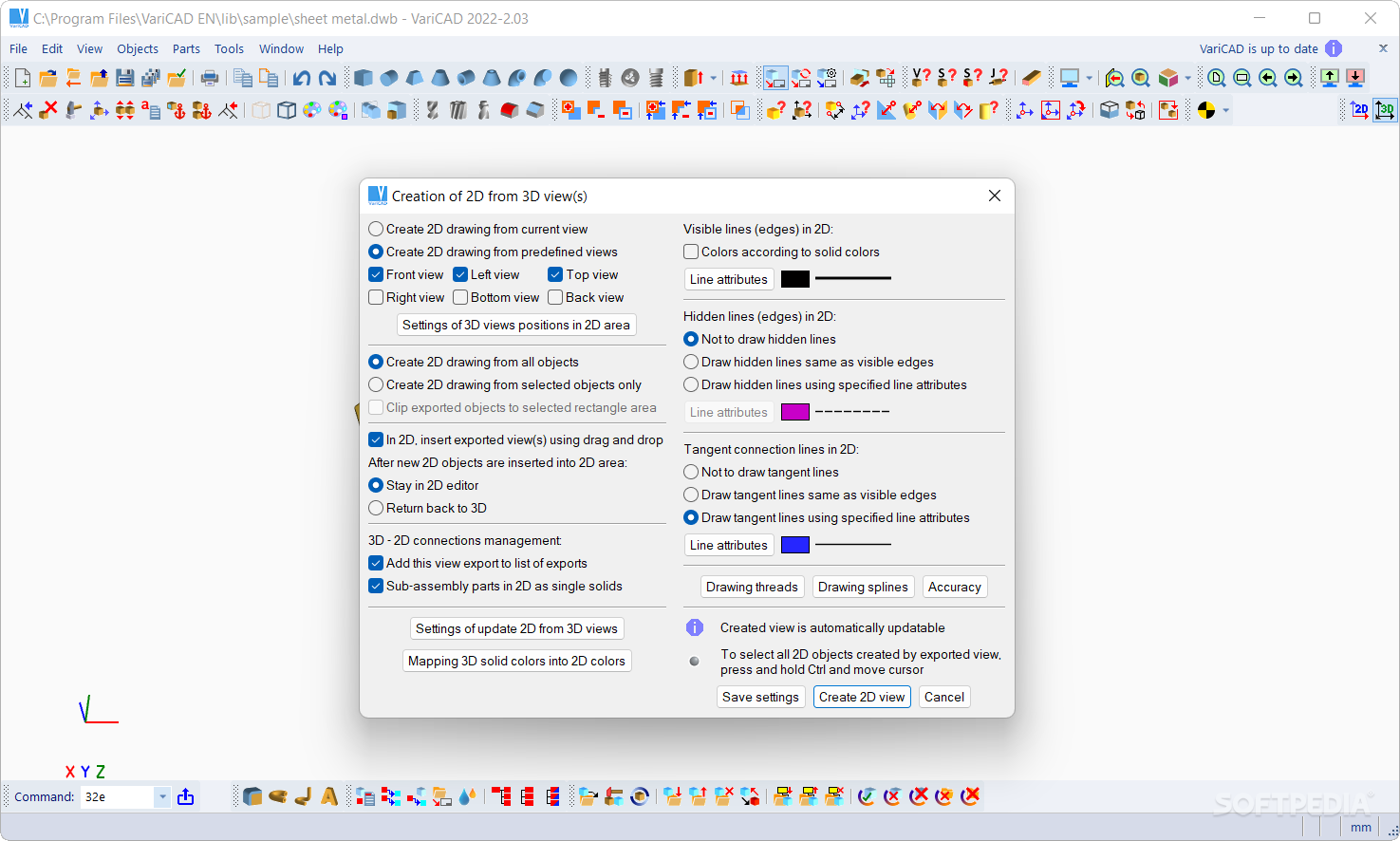

Your finished projections can be saved in different formats like DWB, STP, IGS, STL, DXF, or DWG. Plus, the software supports batch processing for exporting multiple items at once!
In short, VariCAD is packed with features that are just perfect for advanced users needing top-notch mechanical engineering drawings. If you're looking to download this awesome software now, click here!
