WaterNET-CAD

WaterNET-CAD is a super handy software that helps you design complex pipe networks. It's packed with tons of CAD tools and features that make your work easier and more efficient.

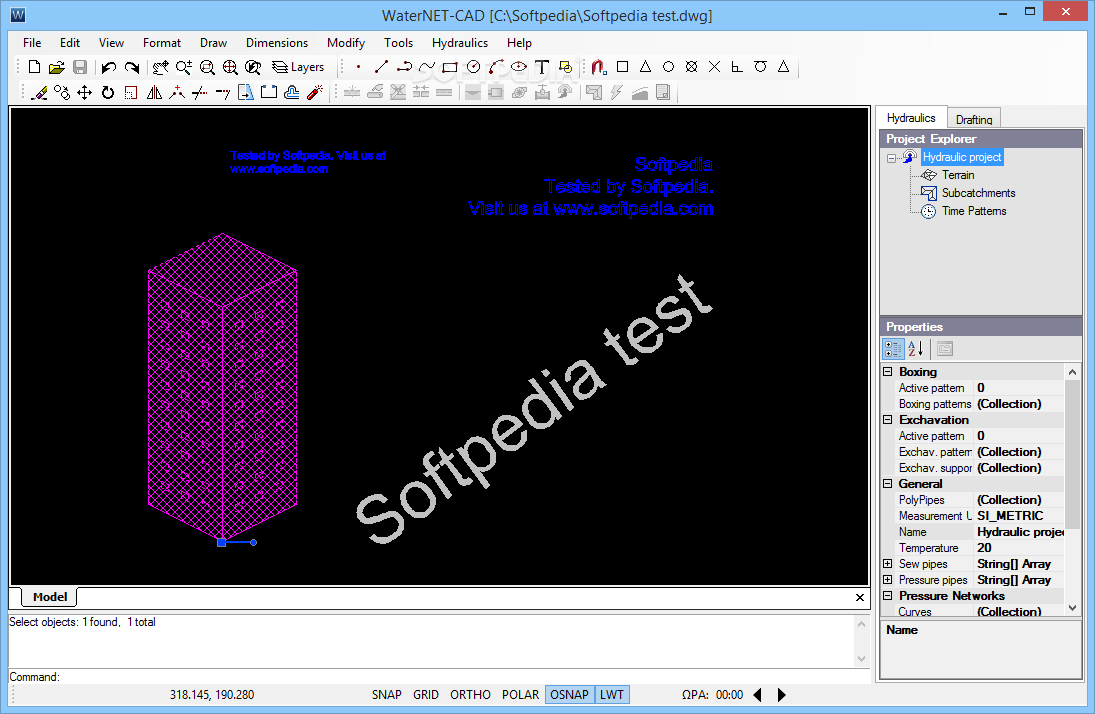

User-Friendly Interface

The first thing you'll notice about WaterNET-CAD is its neat and easy-to-use interface. Everything is laid out in a way that feels familiar if you've used similar programs before, which is great for new users.

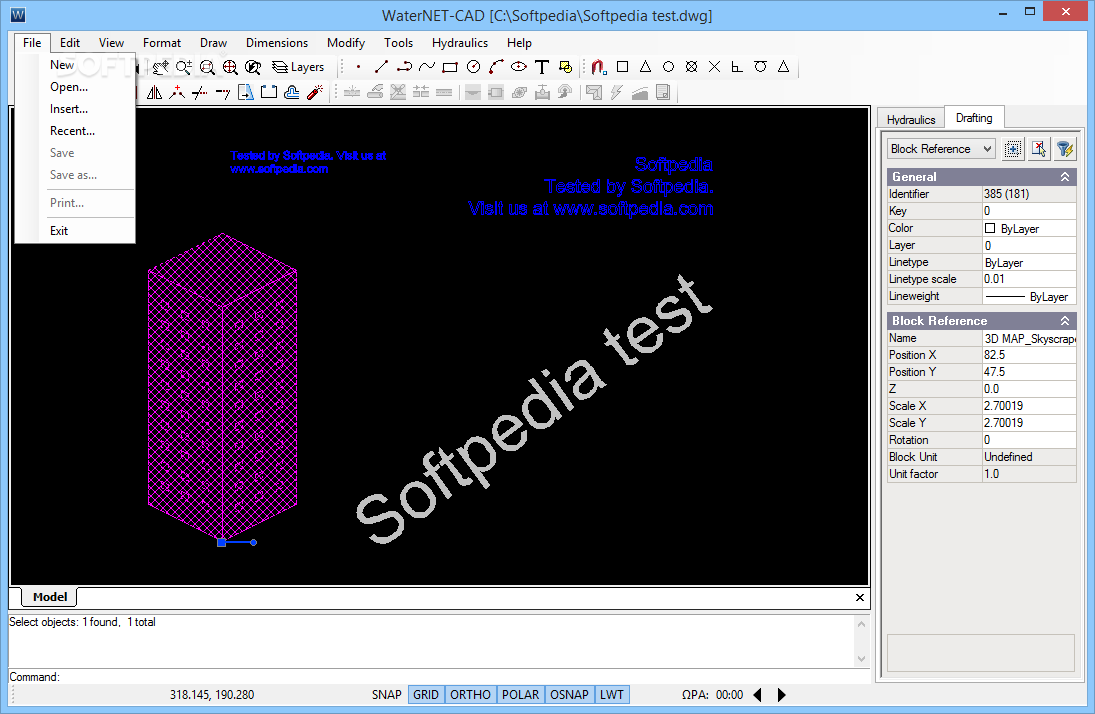

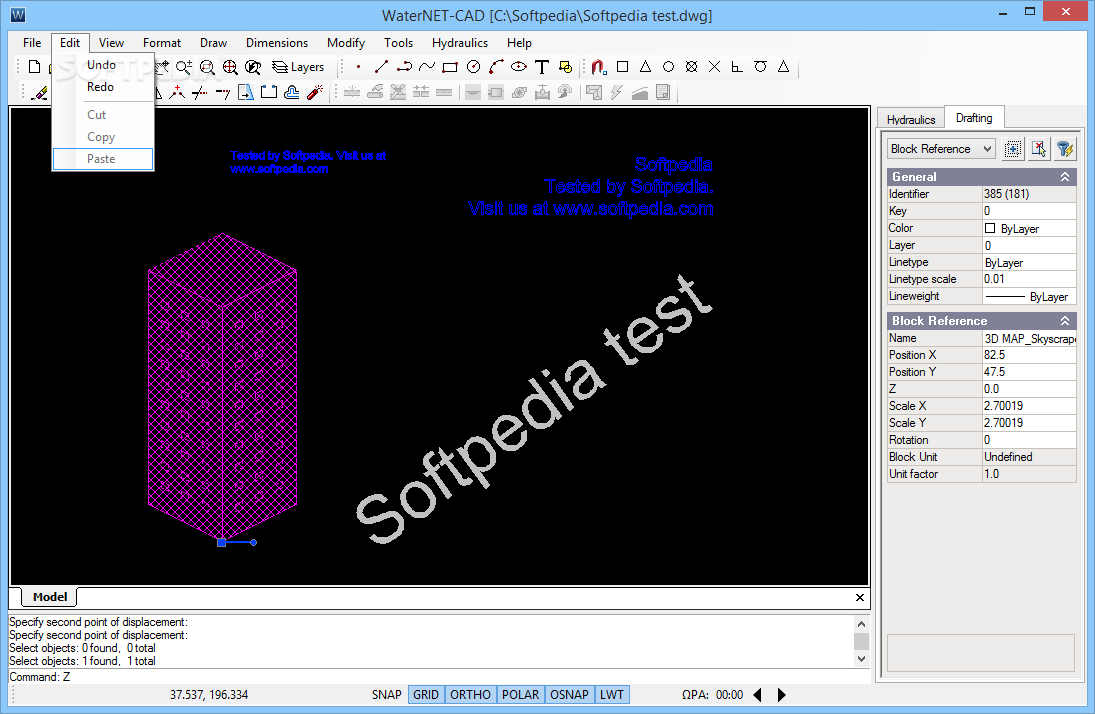

Easy Access to Features

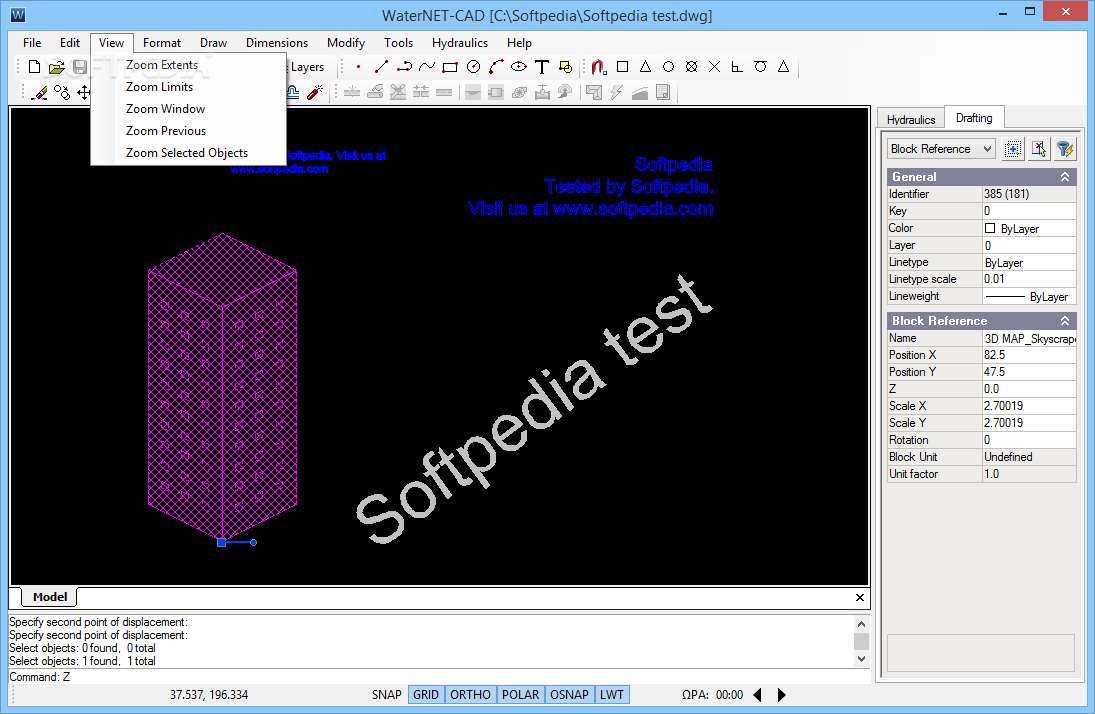

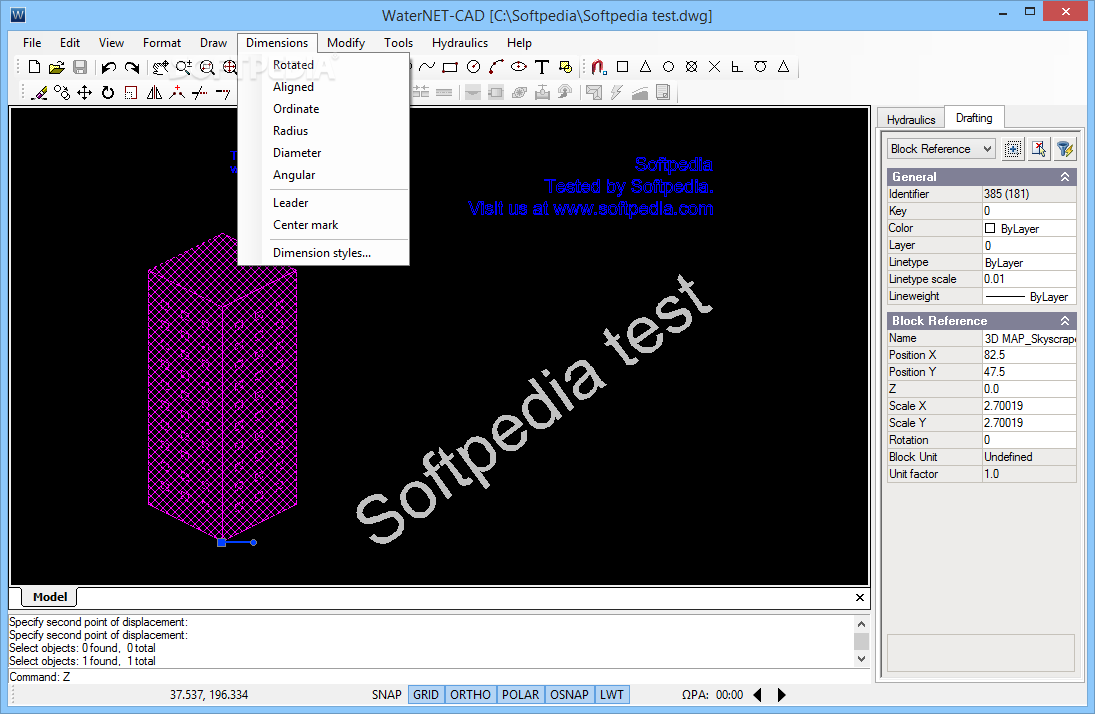

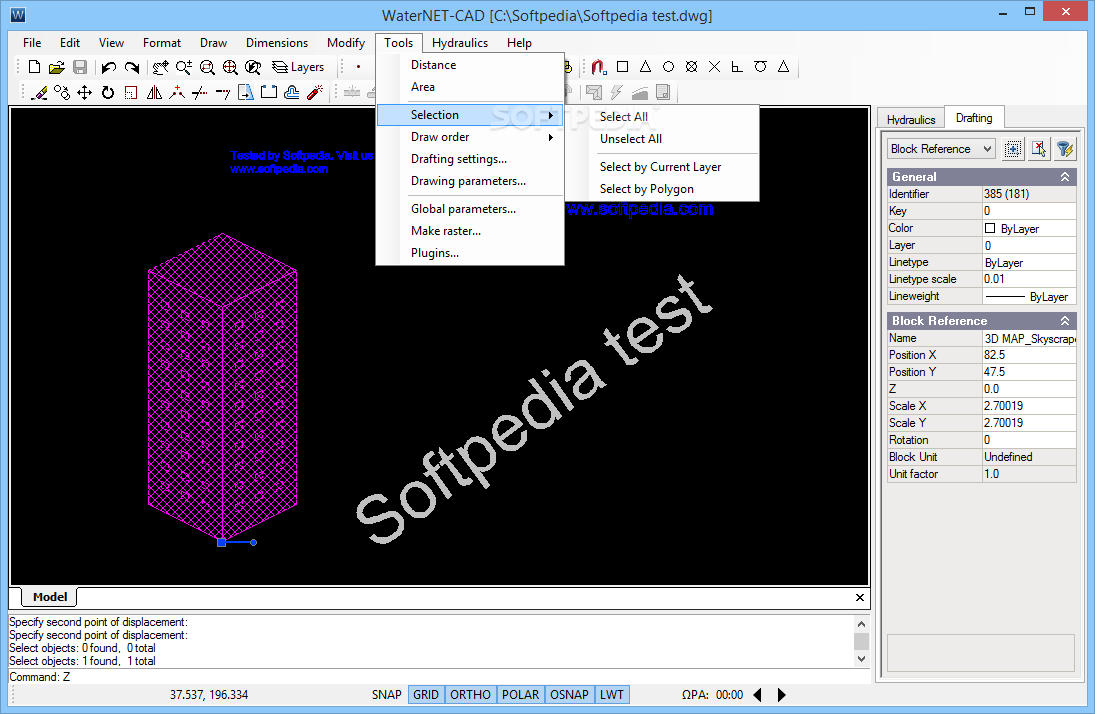

The ribbon at the top gives you quick access to all the functions you need. You can also find these options in menus like 'File', 'Edit', 'View', 'Format', 'Draw', 'Dimensions', 'Modify', 'Tools', and 'Hydraulics'. It's all right there for you!

File Format Support

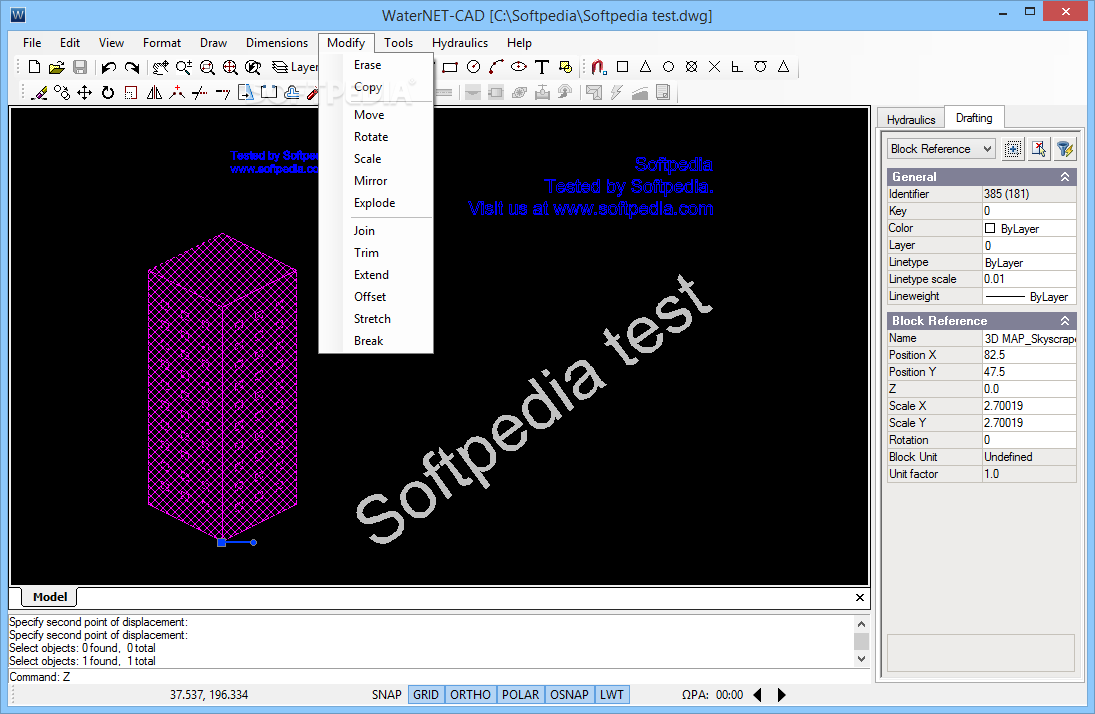

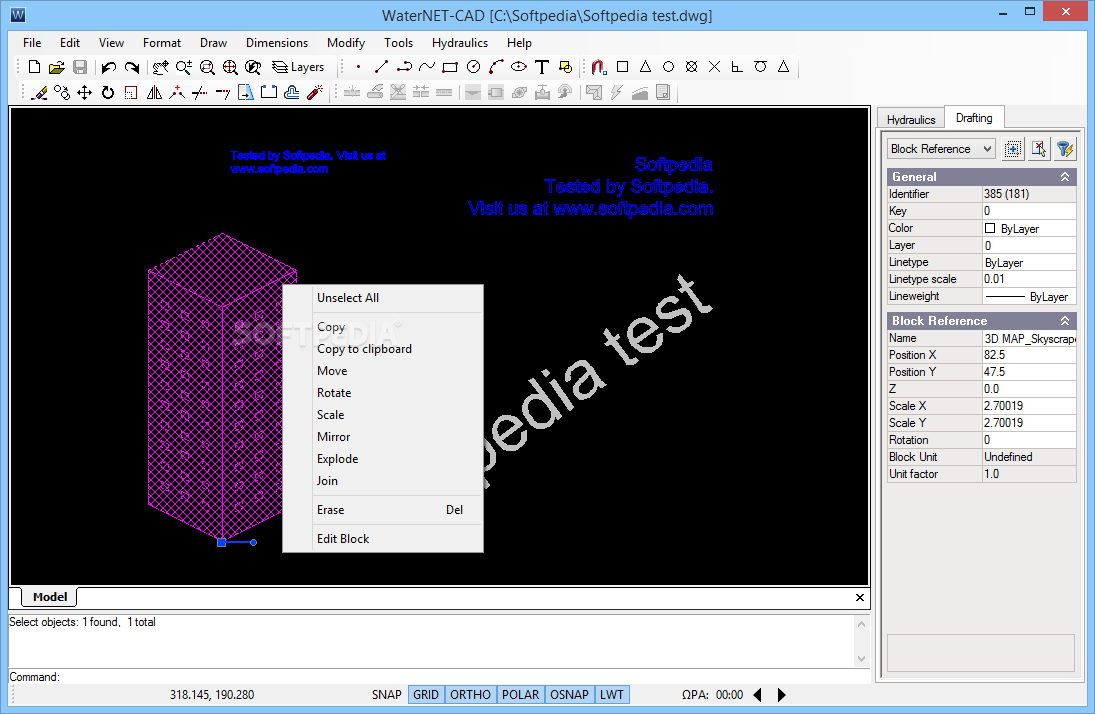

One of the best parts? WaterNET-CAD supports multiple file formats including DWG, DXF, LCD, and SHP. This means no matter what type of file you're working with, you can edit it easily within the software. You'll find editing functions like cut, copy, erase, rotate, mirror, scale, explode, join, and more!

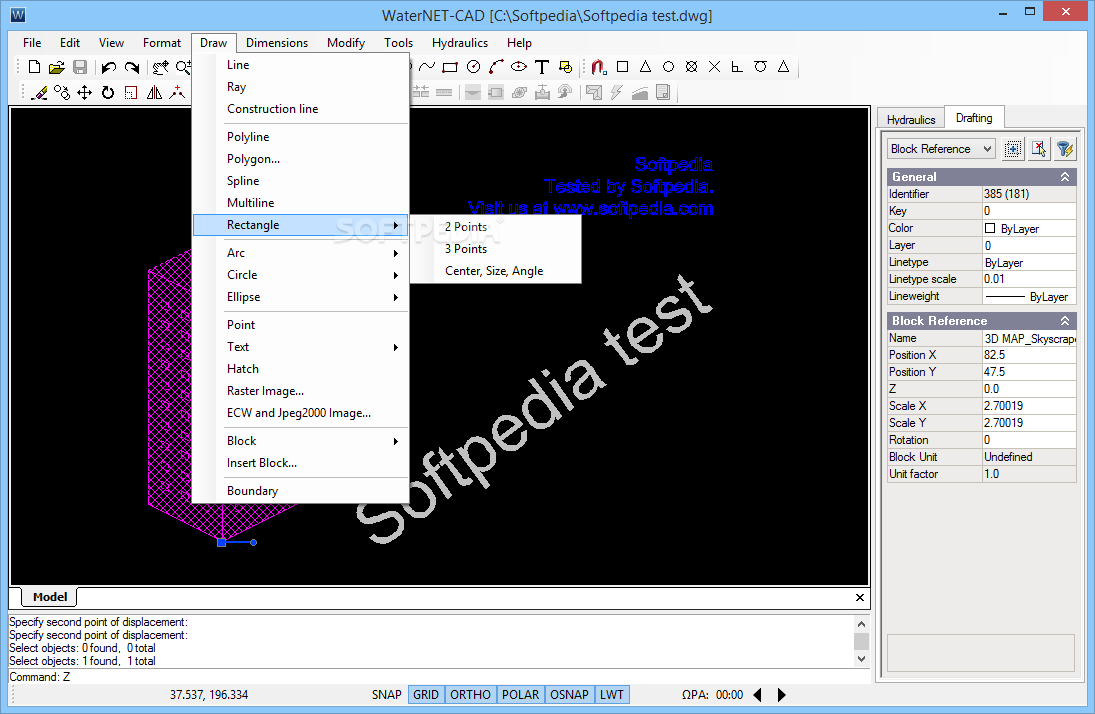

Drawing Tools Galore

If you're looking to draw shapes, the 'Draw' menu has got you covered! You can add lines, rays, polylines, polygons, splines, rectangles, arcs, circles, ellipses—pretty much any shape you need. Plus, you can insert points, text bits, raster images, and boundaries.

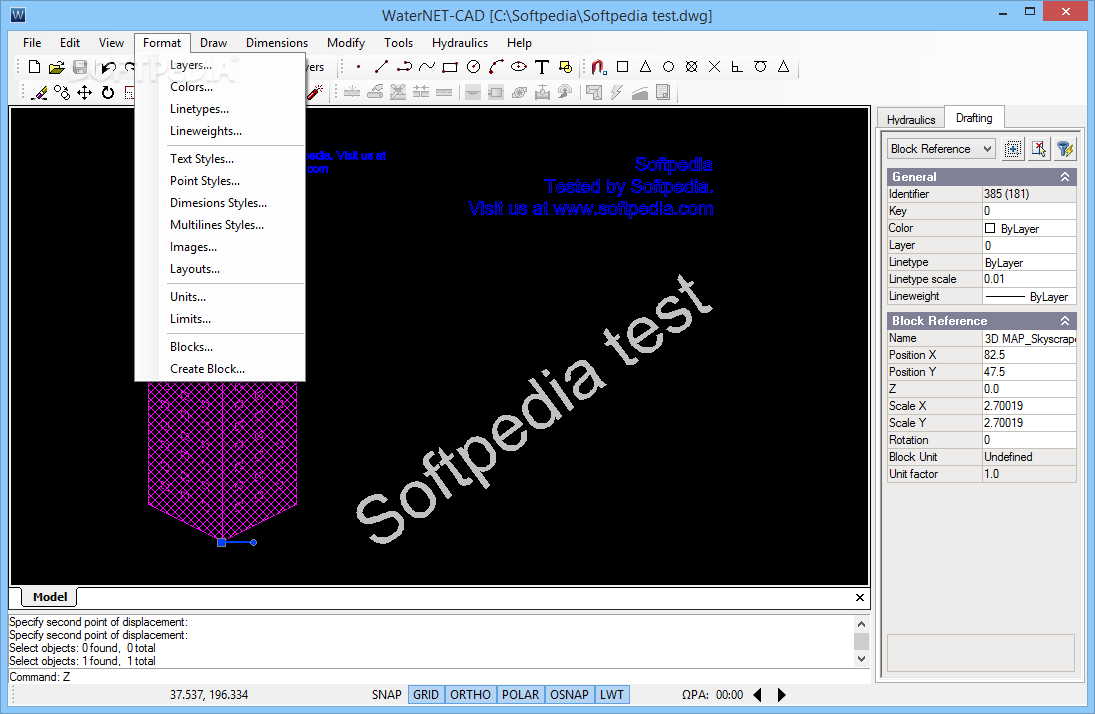

Customizable Formatting Options

The 'Format' menu lets you customize layers, colors, linetypes—you name it! You can change line weights and styles for text or dimensions too. Want to adjust units or limits? No problem! You can also create or modify blocks as needed.

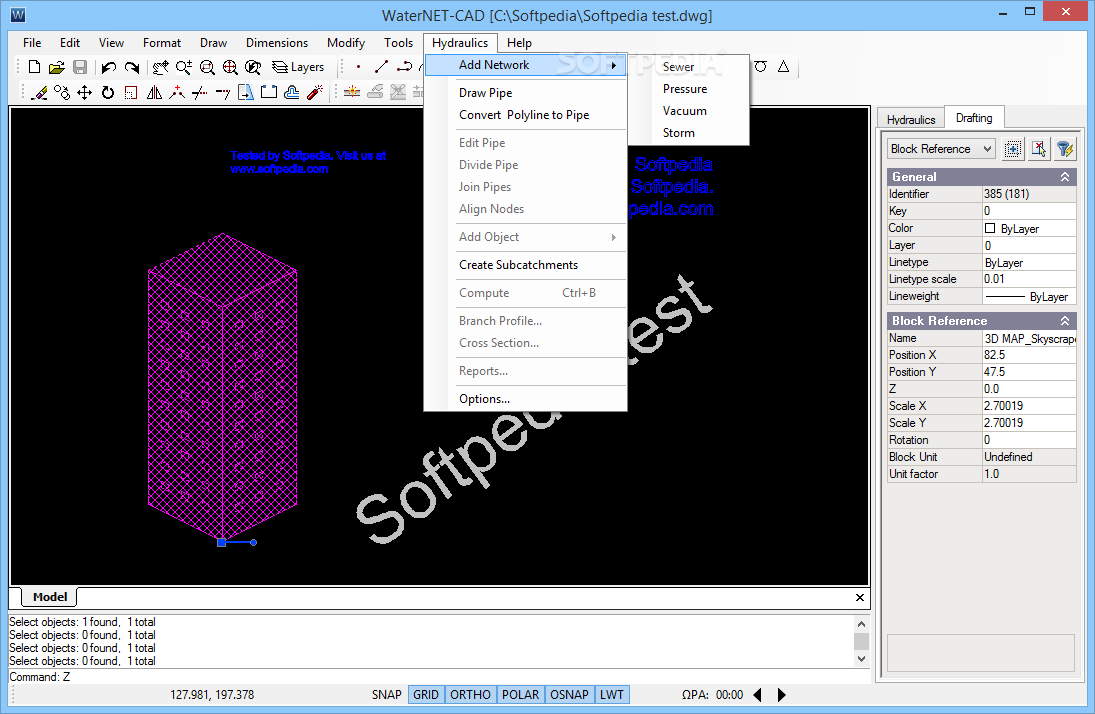

Add Hydraulics Easily

If you're dealing with different types of networks like sewer systems or pressure lines? The hydraulics options let you add those kinds easily too—think vacuum and storm networks!

Your Go-To Tool for Pipe Networks

In summary, WaterNET-CAD is a professional-grade application built to help you design pipe networks from scratch. With its wide range of tools and components at your disposal, you'll save both time and effort while creating your projects!
