WinIIr - Free IIR Filter Synthesizer and Analysis Tool Download

Looking for a powerful yet accessible IIR filter design solution? WinIIr is a comprehensive filter synthesizer and analysis tool that provides engineers, researchers, and audio enthusiasts with professional-grade capabilities for designing digital IIR (infinite impulse response) filters. Achieving results comparable to complex and expensive software like Matlab, WinIIr delivers exceptional performance in a streamlined package. Download WinIIr today to access a complete toolbox for sophisticated filter design, featuring an integrated code editor and analyzer that simplifies your workflow.

Intuitive Visual Interface for Advanced Filter Analysis

WinIIr presents a user-friendly dual-panel main window that offers immediate visual feedback on your filter designs. The left panel displays the frequency response, while the right panel shows the time response, giving you comprehensive insight into your filter's behavior. Unlike basic step response visualizations found in simpler tools, WinIIr's time response diagram reveals detailed filter response to sine wave bursts and Marker frequency interactions.

Customize your viewing experience by easily switching between linear and logarithmic frequency scales according to your analysis needs. Fine-tune your diagrams by manually setting minimum and maximum frequencies to focus on specific ranges of interest. This flexibility makes WinIIr download an essential tool for precise filter visualization and optimization.

Streamlined Controls for Efficient Filter Design

WinIIr features an intelligently designed interface with all controls conveniently positioned in the left-side panel. By eliminating complex nested menus, the application ensures that filter designers can work efficiently without navigating through confusing option screens. This streamlined approach makes WinIIr particularly accessible for professionals who need quick results without sacrificing powerful functionality.

For experienced filter designers, the intuitive layout provides a self-explanatory workspace where all essential parameters and functions are immediately available. The download of WinIIr gives you immediate access to professional filter design capabilities without the steep learning curve associated with more complex software packages.

Comprehensive Filter Implementation Options

Based on the robust biquad architecture, WinIIr delivers exceptional versatility in filter design through four fundamental filter types:

• Low Pass Filters - Ideal for allowing frequencies below the cutoff point


• High Pass Filters - Perfect for isolating frequencies above the cutoff point


• Band Pass Filters - Specialized for allowing a specific frequency range to pass


• Band Stop Filters - Designed to reject a specific frequency range

Each filter type can be implemented using three distinct mathematical approaches, giving you complete control over your filter characteristics:

• Butterworth Implementation - Maximally flat magnitude response


• Chebyshev Implementation - Steeper roll-off with configurable ripple


• Cauer (Elliptical) Implementation - Sharpest transition with configurable ripple and attenuation

For Chebyshev and Cauer implementations, WinIIr allows precise specification of the maximum accepted ripple, with Cauer filters additionally requiring attenuation parameters. This level of customization ensures that your filter design exactly matches your technical requirements.

Integrated Code Editor for Seamless Implementation

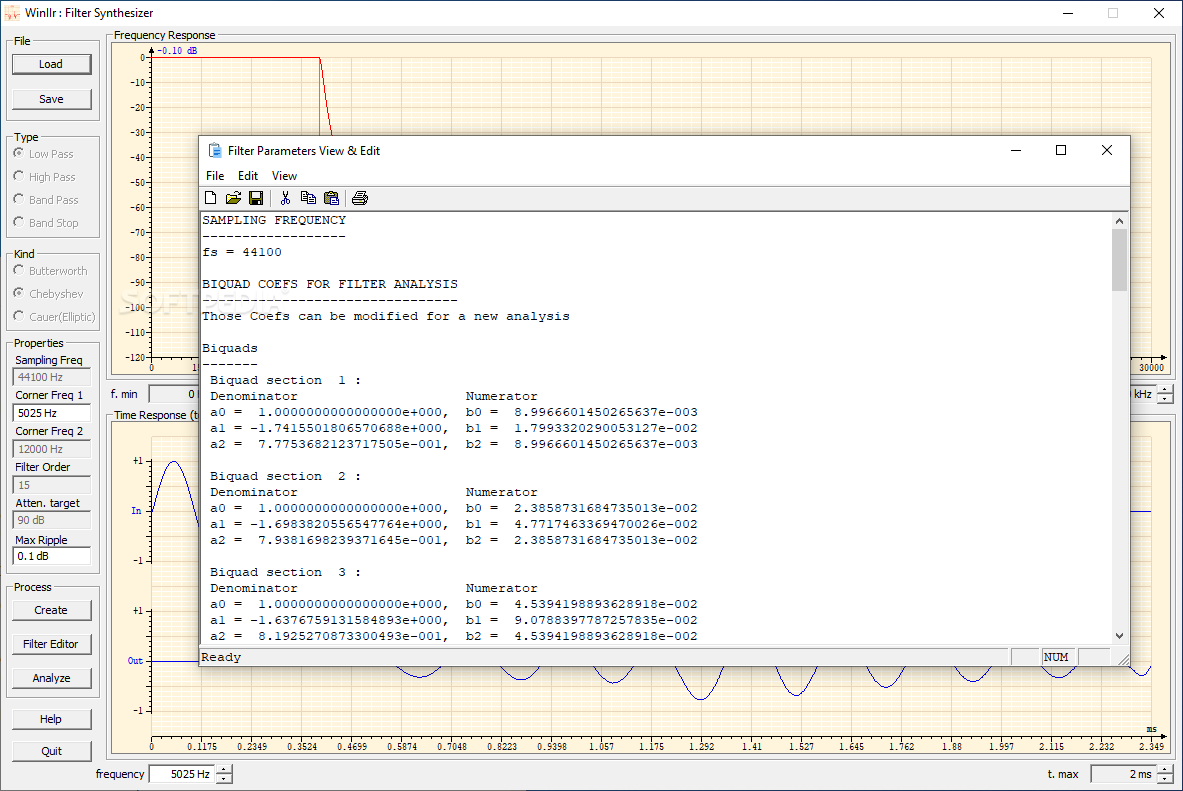

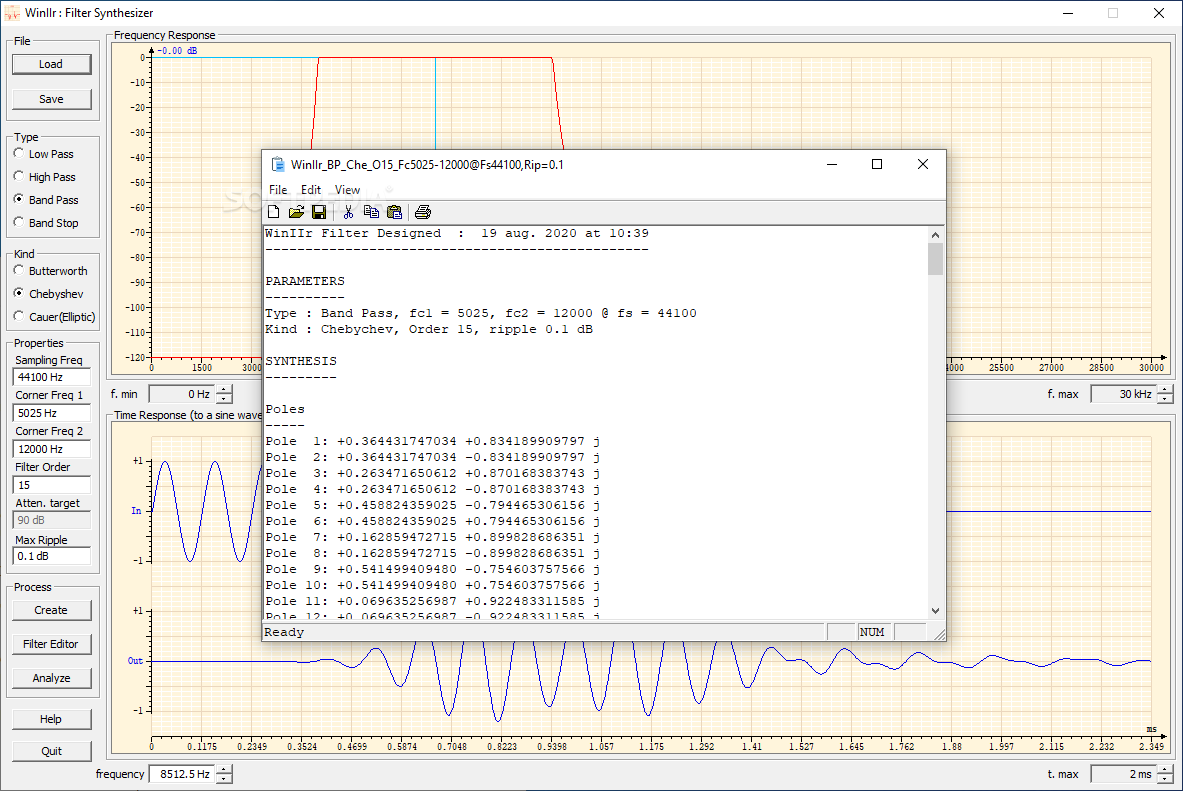

WinIIr goes beyond simple filter design by including a powerful integrated code editor that automatically generates descriptive text and implementation code for your filters. This editor displays comprehensive filter descriptions in human-readable format, storing all parameters and characteristics for easy reference and modification.

The generated descriptions include:

• Creation date and timestamp


• Complete parameter listing


• Ready-to-use C source code for immediate implementation

This feature dramatically accelerates the development process by eliminating the need to manually translate filter designs into code. When you download WinIIr, you're not just getting a design tool – you're getting a complete implementation solution that bridges the gap between theoretical design and practical application.

Technical Specifications

• Filter Types: Low Pass, High Pass, Band Pass, Band Stop


• Implementation Methods: Butterworth, Chebyshev, Cauer (Elliptical)


• Architecture: Biquad-based design


• Visualization: Dual-panel frequency and time response


• Scaling Options: Linear and logarithmic frequency scales


• Code Generation: Automatic C source code creation


• File Format: Human-readable filter descriptions

Powerful Yet Accessible Filter Design Solution

WinIIr strikes an ideal balance between power and usability, making sophisticated filter design accessible without compromising on capabilities. For professionals familiar with filter design principles, the application delivers an intuitive environment for precise filter synthesis and rapid parameter optimization.

The software enables detailed analysis of both frequency and time response characteristics, allowing you to quickly identify and optimize critical filter parameters. All filter descriptions are stored in human-readable format, making your designs easily shareable, modifiable, and implementable across projects.

Download WinIIr today and experience the perfect combination of powerful filter design capabilities and straightforward usability that makes complex IIR filter development accessible to engineers at all levels.
