Xrad

Xrad is your go-to software for designing tube-fin heat exchangers, commonly known as radiators. These gadgets are super important because they help move heat between fluids, especially in tight spaces like engines. With engines being compact, it’s crucial to have a cooling system that works efficiently!

What Does Xrad Do?

This software makes thermal and hydraulic design a breeze! Even though it sounds complex, you’ll find that Xrad is user-friendly and comes with thorough documentation to guide you along the way.

Create Your Own Designs

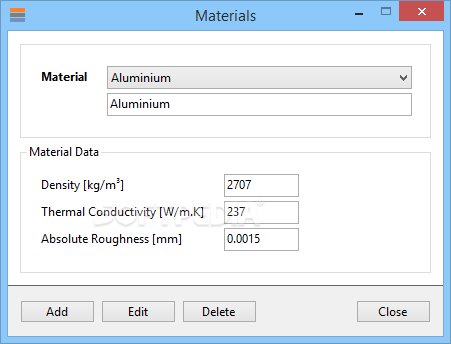

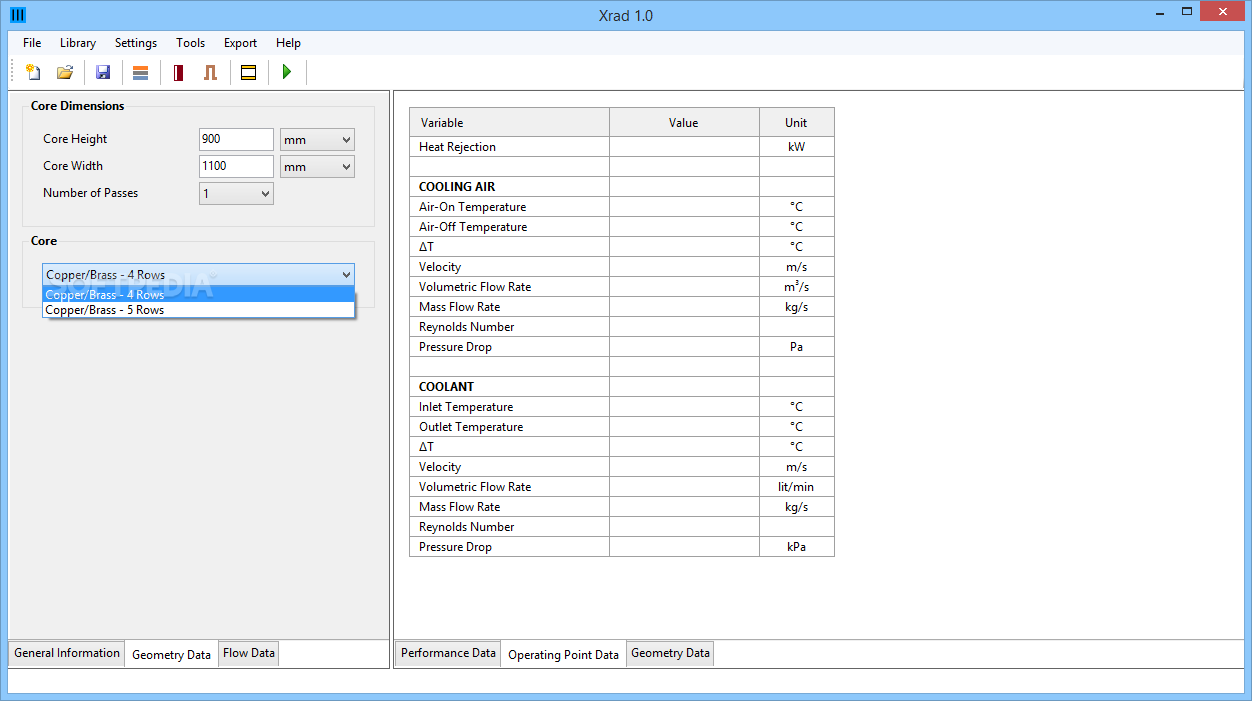

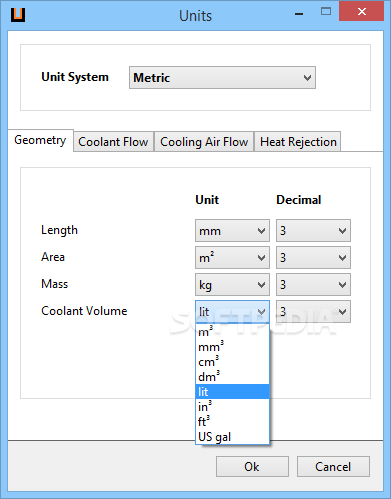

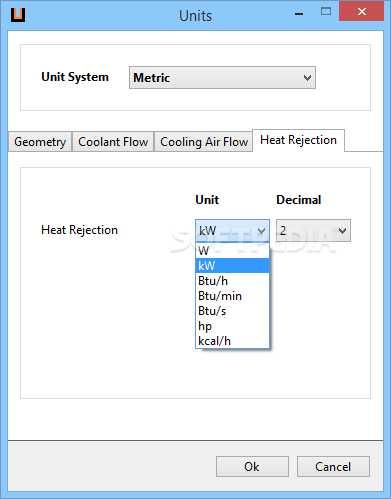

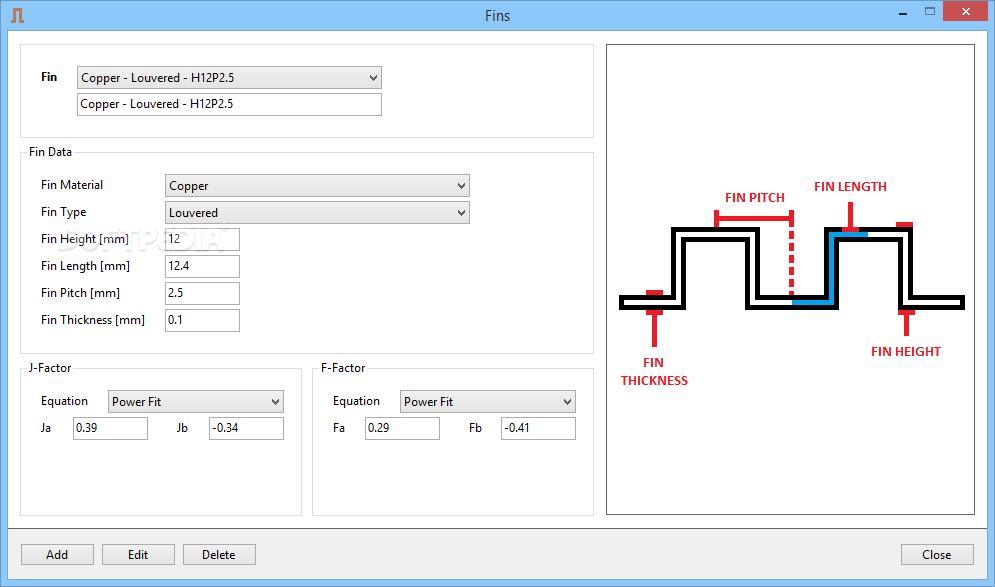

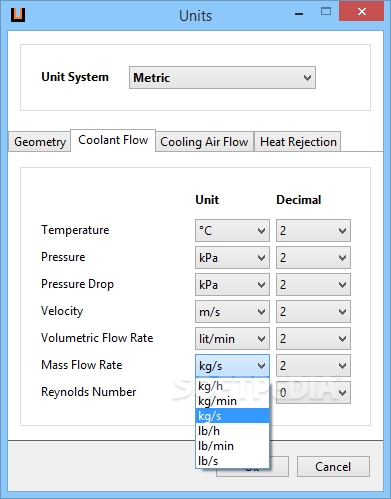

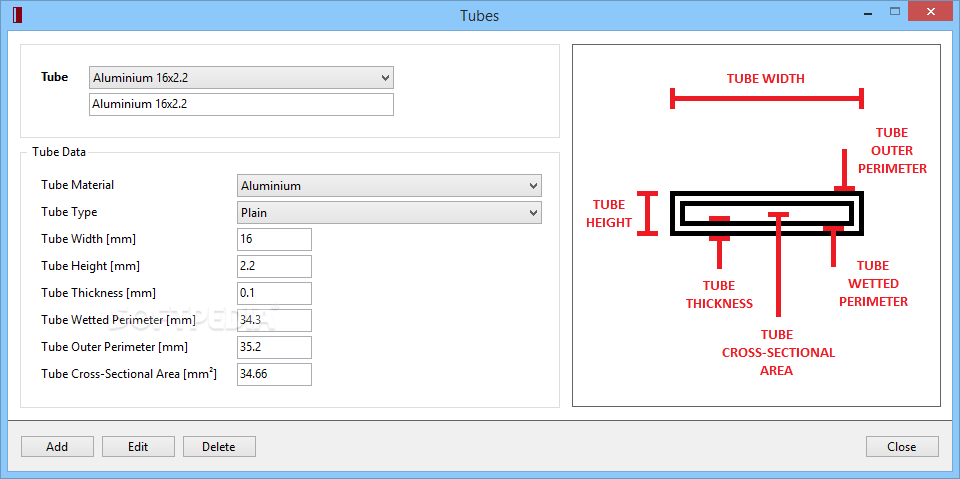

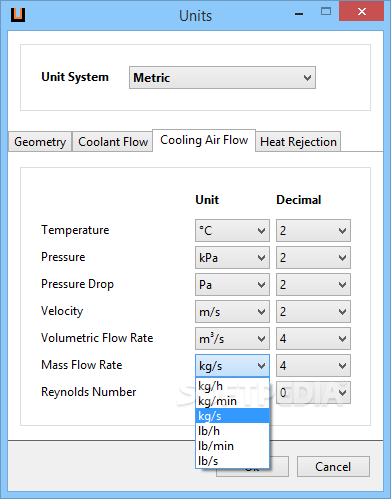

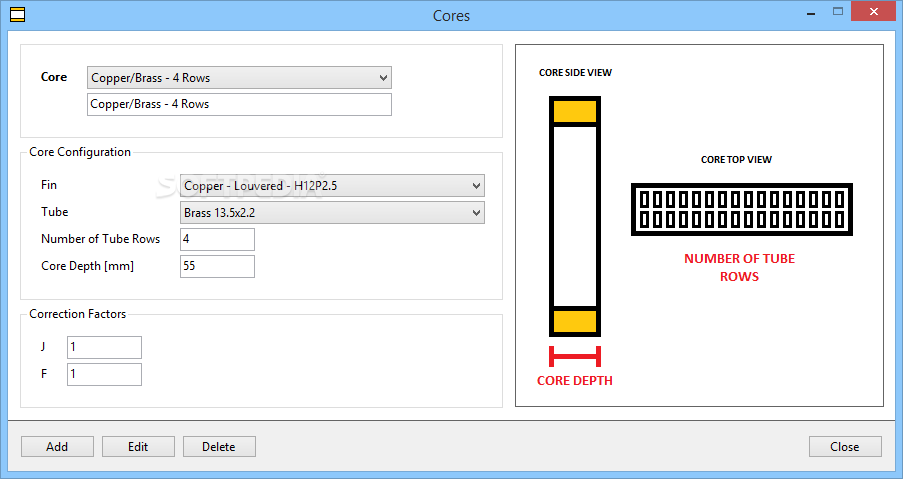

With Xrad, you can save the sizes and features of tubes and fins in a handy library. This means you can whip up pre-configured cores quickly. You’re free to add as many tubes, fins, cores, and materials as needed and choose the measurement units for your data.

Easy Performance Calculations

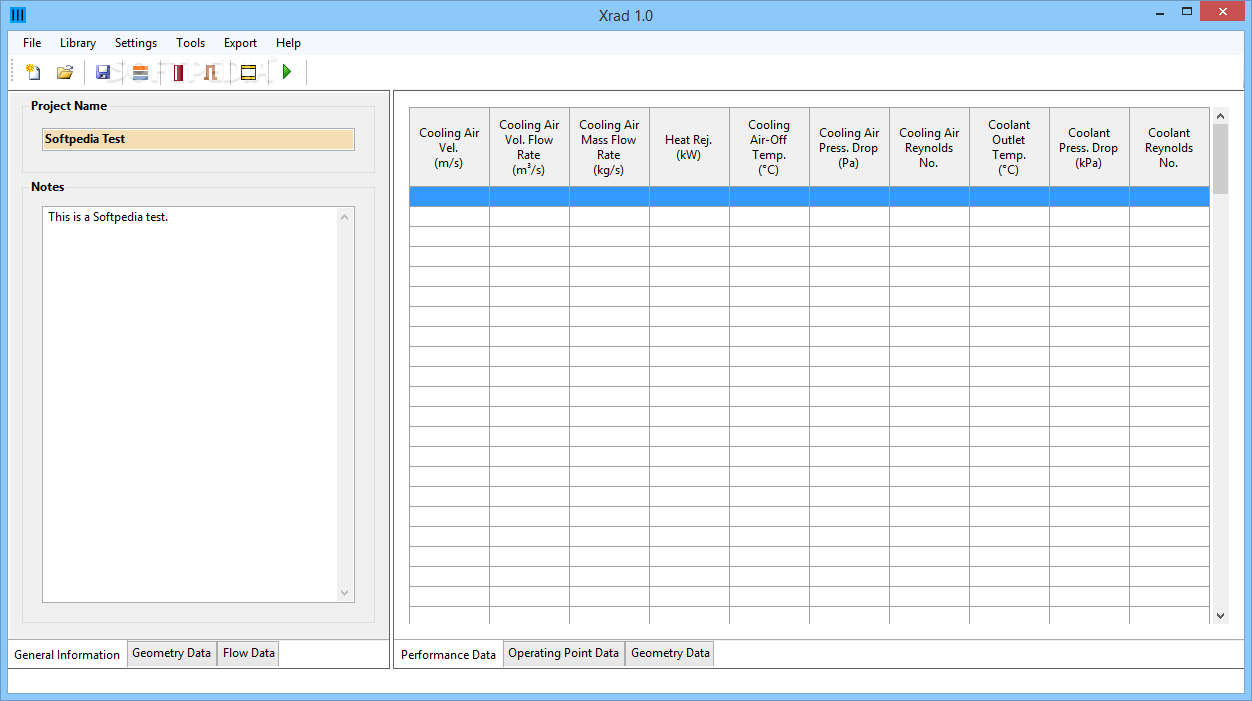

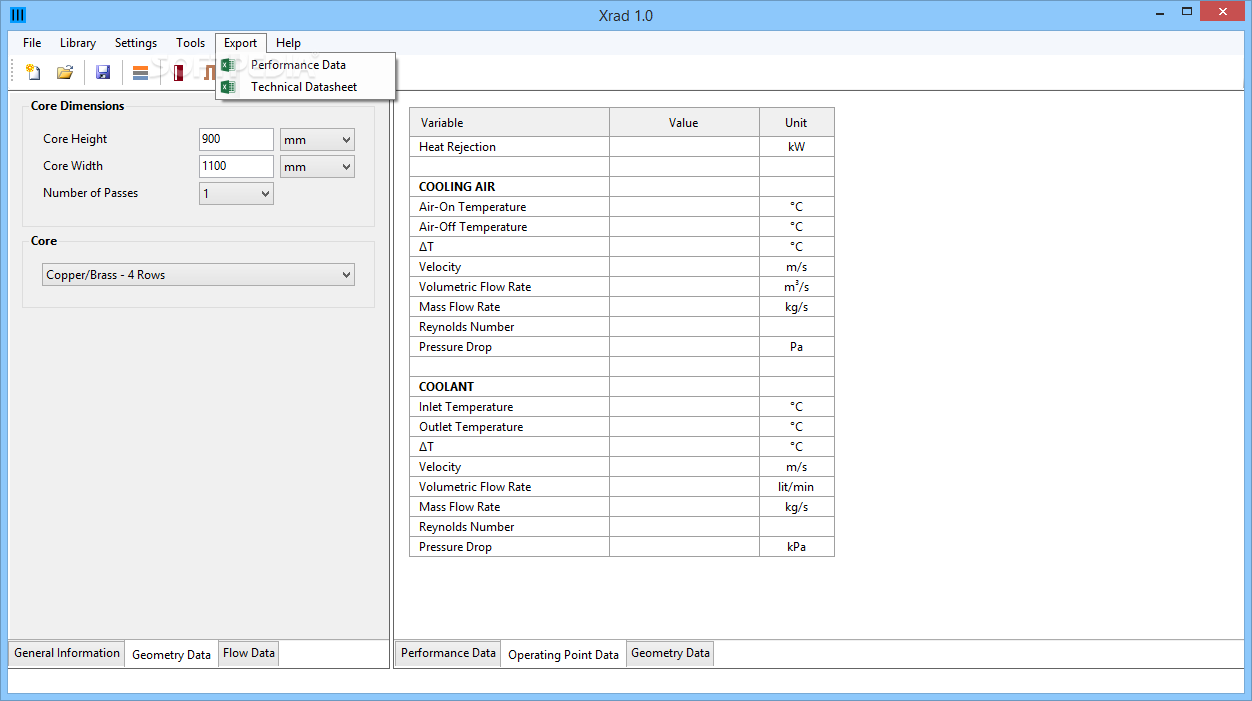

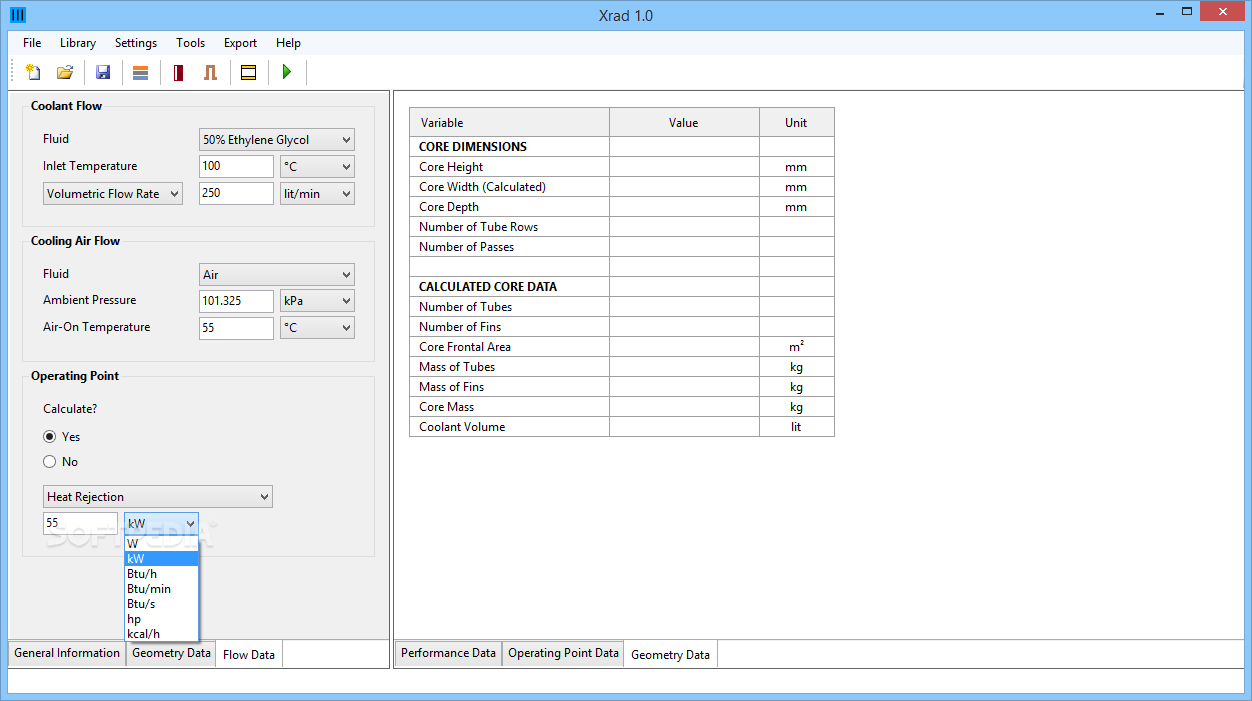

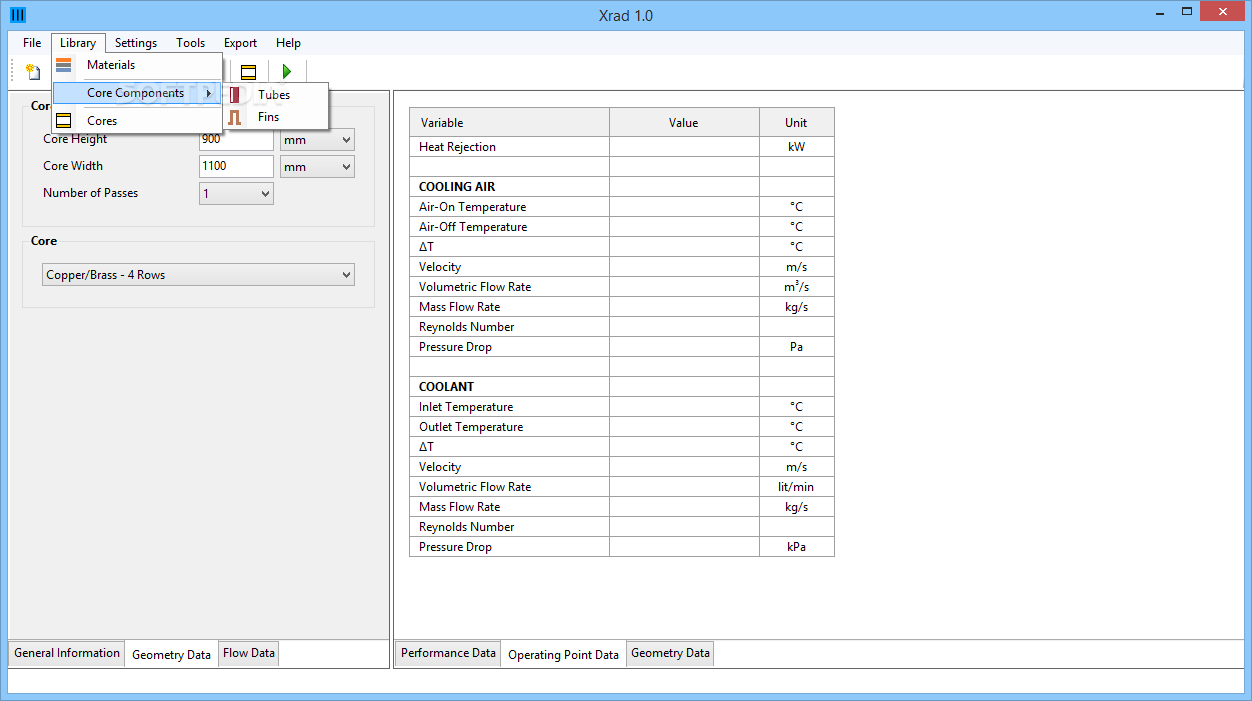

To get performance data for your core, just plug in some extra geometry and flow details. Plus, you can figure out the operating point data too! The results pop up in clear tables that you can easily export to Excel spreadsheets.

Fluid Properties at Your Fingertips

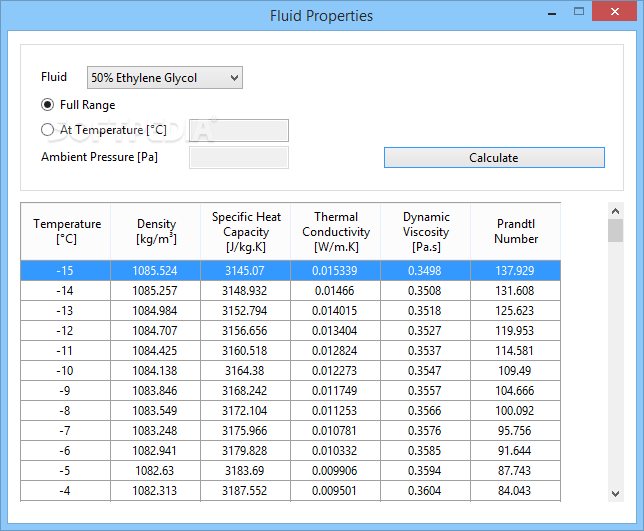

Xrad even has a cool module for calculating fluid properties based on different temperatures and pressures. How neat is that?

User-Friendly Design

This software is tailored for specialists but don’t worry if you're new to it—Xrad’s layout is straightforward enough so first-time users won’t feel lost. The interface is clean and simple to navigate!

Comprehensive User Manual

You’ll be glad to know that Xrad includes an impressive user manual that walks you through every feature in detail. It’s like having a buddy there to help!

The Bottom Line

If you need a solid tool for designing tube-fin heat exchangers that fit into small spaces but pack enough power to keep engines cool, then Xrad is perfect for you! It’s easy to use with all those fantastic features at your fingertips.
