xyExtract Graph Digitizer

xyExtract Graph Digitizer is a handy tool that makes it easier to turn paper information into digital data. Usually, when you want to digitize regular info, you just need a scanner and you’re good to go. But for technical stuff like graphs, it's a bit trickier since you have to pull out sets of values too.

Extracting Values from Bitmap Files

If you’re working with a 2D graph that has two axes, xyExtract Graph Digitizer can help you grab those values from bitmap files without too much hassle. The process isn’t complicated at all!

Smooth Installation Process

The installation is pretty straightforward. Sure, there might be some bumps along the way, but overall it shouldn't cause any headaches.

User-Friendly Interface

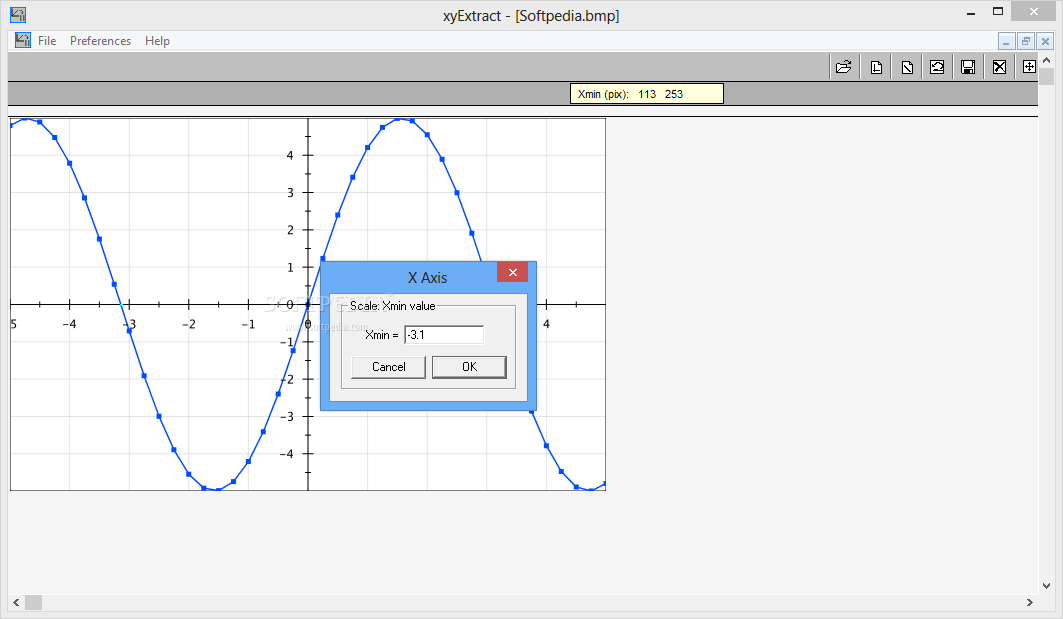

Once installed, you'll find yourself looking at a minimalist interface where you can load your bitmap image packed with all the details. The software guides you through the whole digitizing process. First up is defining the minimum and maximum values on both axes.

Plotting Points Made Easy

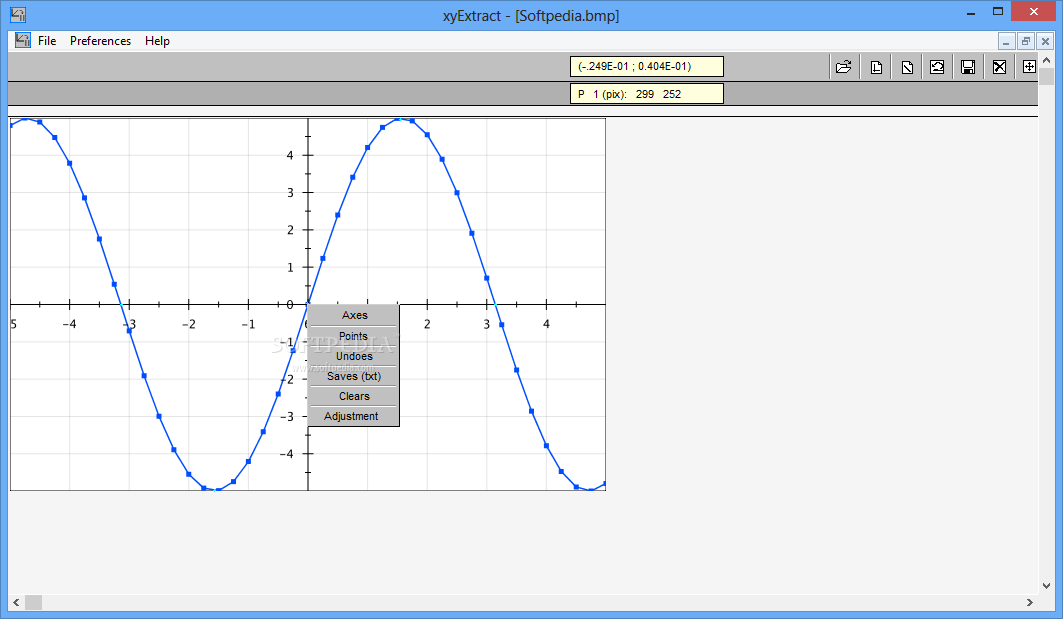

The next step involves marking points by plotting the center of each one. It can get a little tedious, but if you make mistakes, don’t worry! You can easily adjust your marks without any fuss.

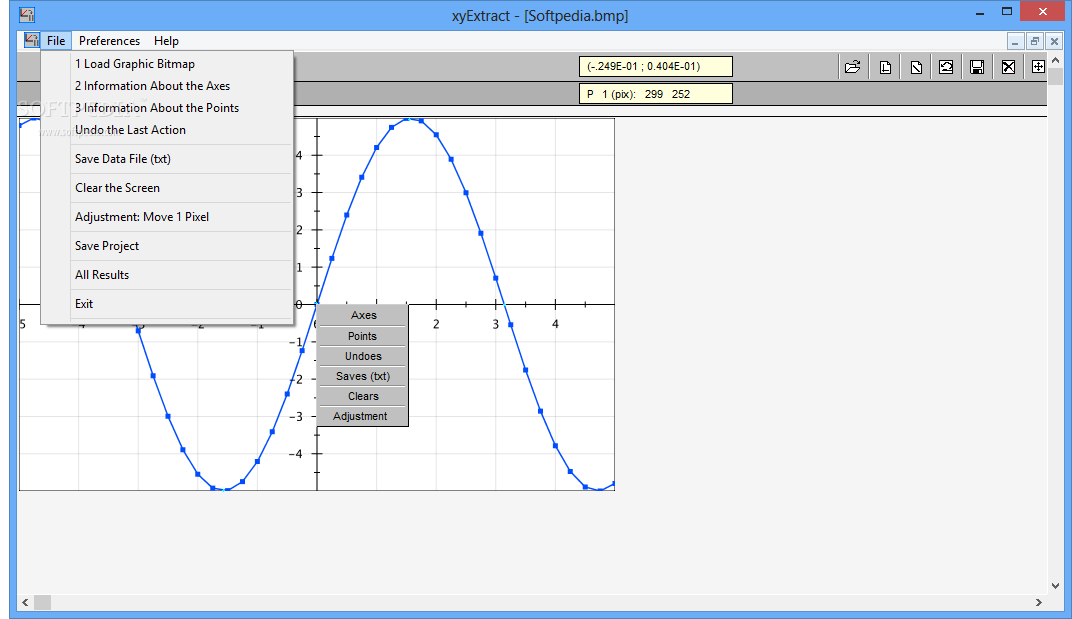

Saving Your Work

The last part? Saving your data! This is actually the easiest step in the whole process. According to the developers, this application can extract about 1,500 points from one graph!

A Great Option for 2D Graphs

If you're looking for an alternative to digitizing 2D graphs and their info, xyExtract Graph Digitizer might just be what you need! It's user-friendly and while larger projects may take more time to finish, it lets you save your work so you can come back later without losing anything.
