ZW3D

ZW3D is an awesome tool for anyone who wants to create, design, and export projects using CAM and CAD software. It's packed with tons of options and settings, making it perfect for expert users.

Installation Process

The installation can take a bit of time because the program is quite complex. But once it's done, you’ll see a big window that looks super professional. This is where all the magic happens with ZW3D's interface!

Getting Started with Tutorials

No need to worry about starting from scratch! ZW3D has several examples and tutorials ready for you. You can kick off new projects for different needs like parts or assemblies, drawing packets or sheets, standalone sketches, CAM plans, equation sets, or even multiple objects.

Navigating 3D Plans

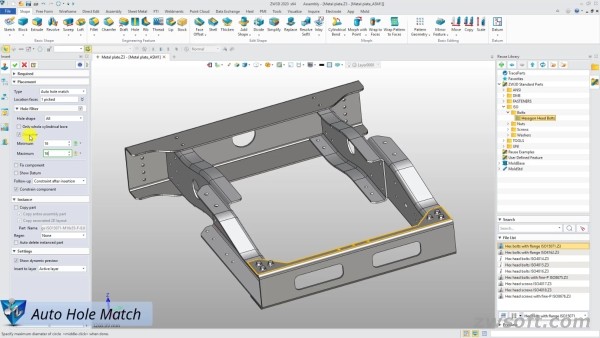

You’ll find navigating the 3D plan really easy. You can zoom in and out, insert sketches and blocks, and use cool engineering tools like drafts and holes. Plus, if you want to tweak any shapes in your project, you can do that too!

Shape Manipulation Features

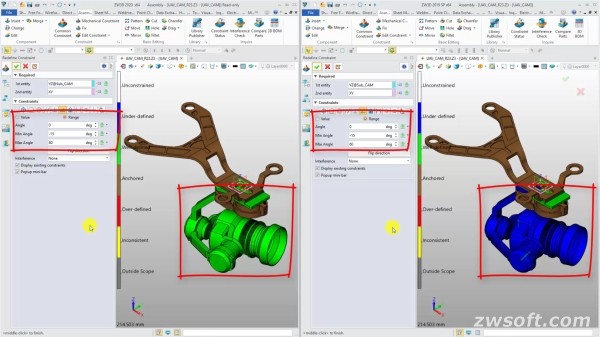

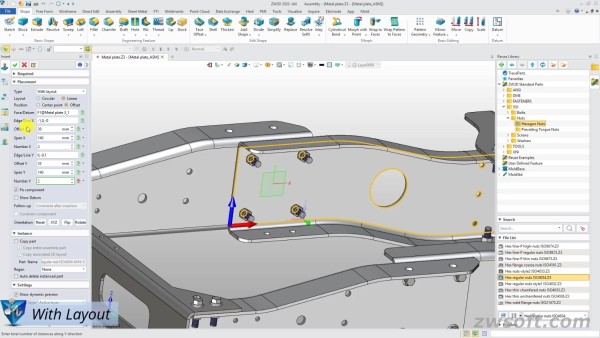

ZW3D lets you get creative with shapes! You can flex and morph them, work with free form basic faces, detect edges, draw wireframes and curves—it's all there! It also has handy healing features like sewing edges together or refitting them. And when it comes to assembly functions? You can insert, change, align, or edit components easily.

Sheet Metal Tools & More

This tool also covers sheet metal tasks like adding flanges or changing bend angles. You can work on point clouds by removing spheres or splitting them up too! Plus there are tools for direct editing and setting equations.

Undo & Redo Options

If you make a mistake (which we all do!), don't sweat it! ZW3D allows you to undo and redo actions so fixing errors is simple.

Exporting Your Work

Once you've wrapped up your project, you can print it out or export it in various formats like IGES or AutoCAD. You can even save images as JPGs or BMPs!

Performance & Stability

ZWD is pretty demanding on system memory but don’t worry; we didn’t run into any stability issues during tests! The program didn’t freeze up or crash at all. With its range of features tailored for CAM/CAD app designing, ZWD should definitely catch your attention!
