AIGraph CAD Viewer

Note: This software solution is no longer available for purchase but users can still download it from Softpedia and use it with its specific limitations.

AIGraph CAD Viewer is a useful and reliable piece of software designed to assist you in displaying and analyzing DWG and DXF files as easily as possible, without requiring complicated programs to be installed on your system.

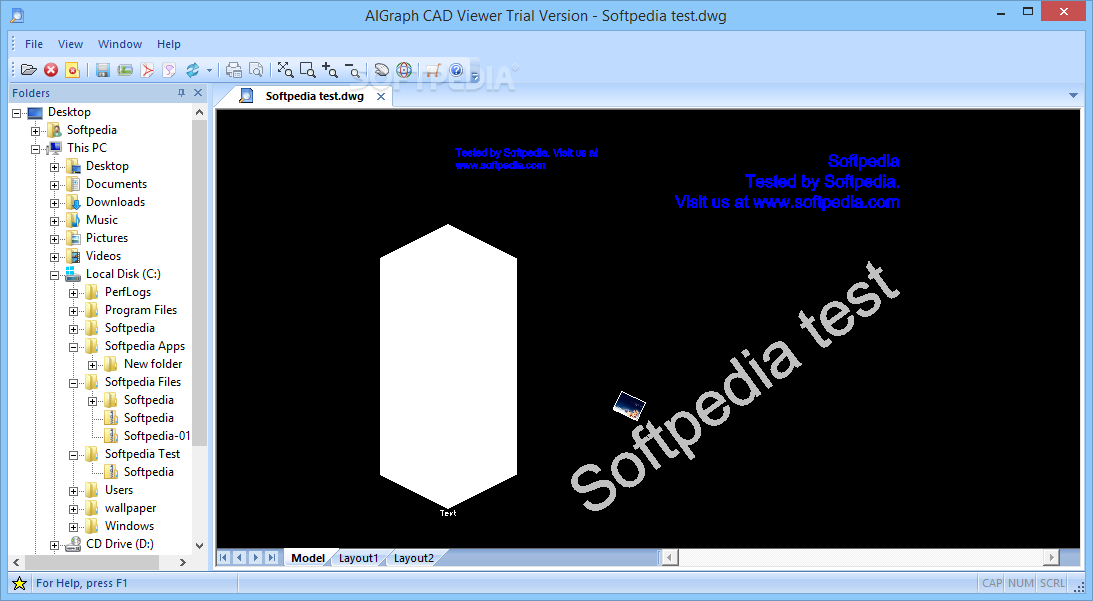

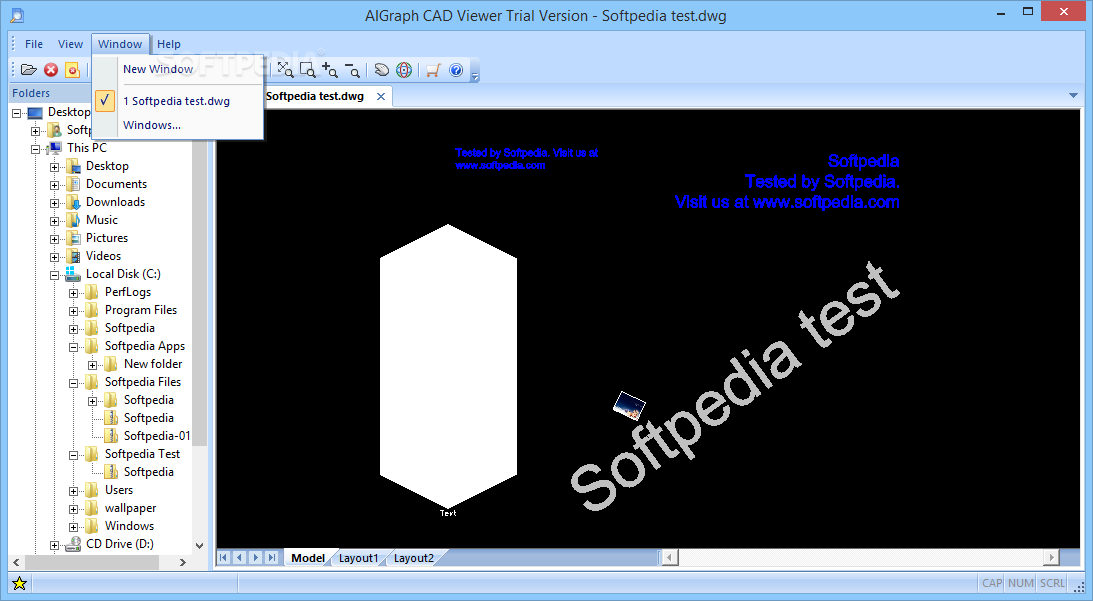

Following a brief installation period, you can launch this simple application and begin working with it right away. You can open the files you want to handle, even several of them at the same time, as AIGraph CAD Viewer features a tabbed interface which allows you to switch back and forth between the multiple items.

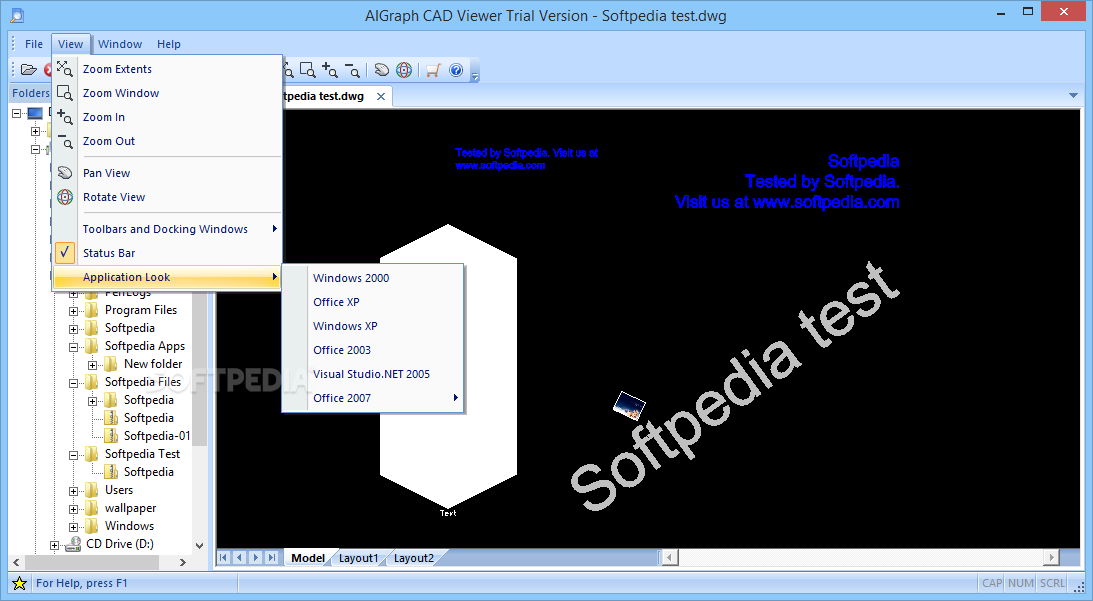

The utility supports 'View Pan' and 'View Rotate', enabling you to look at the structure in your files from any angle you want. Similarly, you can 'Zoom In' and 'Zoom Out' using the mouse scroll wheel or the assigned buttons in the toolbar, in order to analyze every detail in the image.

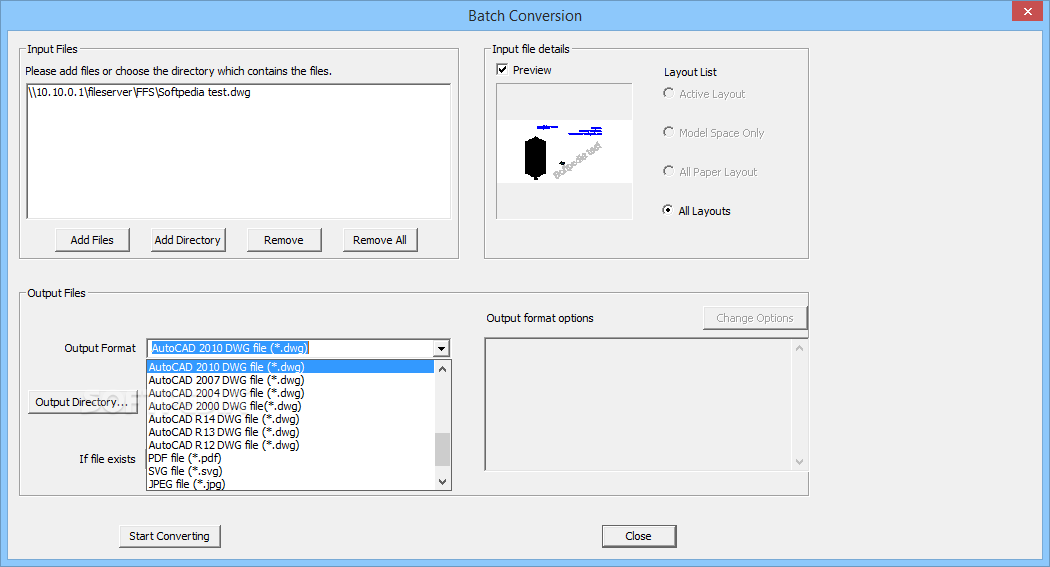

Moreover, AIGraph CAD Viewer features a 'Convert CAD Files' function whose main purpose is to offer you the ability of turning your files to several different formats, such as DXF R24, Binary DXF R10, DWG R24, DWG R12, and many more. All you need to do is choose the source items, the preferred output file type and the save location, then press the 'Start Converting' button, completing the process within moments.

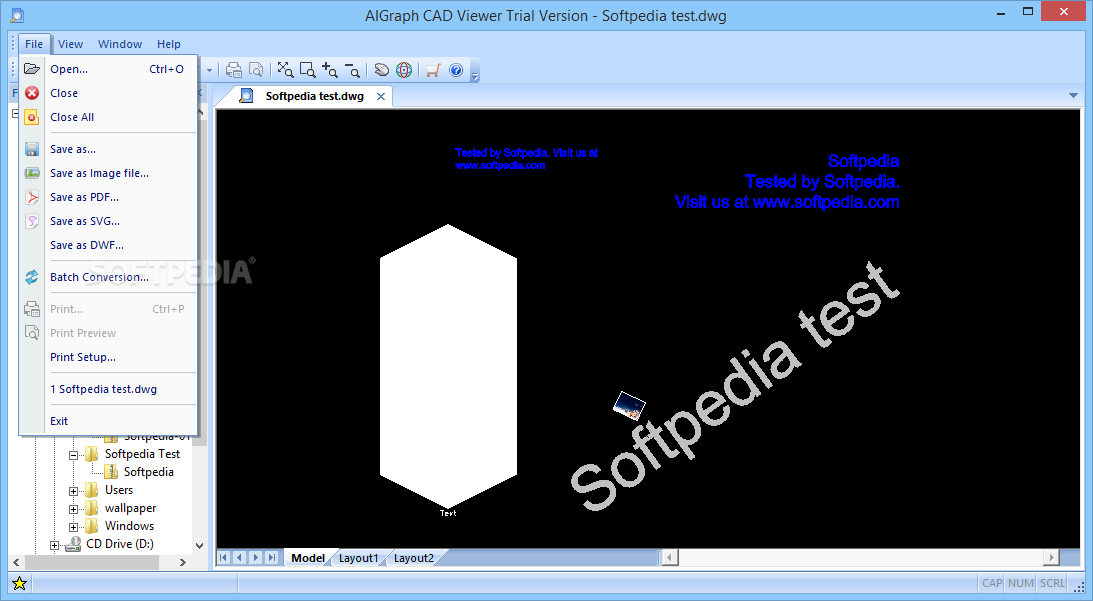

The application allows you to export any of your DWG or DXF files to SVG or PDF format, with the possibility of setting the output properties, using hidden lines and blended gradients. When exporting CAD to PDF, you can enter the 'Title', 'Author', 'Subject', 'Keywords', 'Creator' and 'Producer' details, along with several other features.

To conclude, AIGraph CAD Viewer is an intuitive and quite handy tool that enables you to display as well as convert your CAD files to multiple different formats, so you can work with them in other programs easily.
