Cheewoo Pipe Simulator

Cheewoo Pipe Simulator is a handy tool for anyone looking to create cutting plans without wasting materials. Even though cutting machines are super precise, it’s always smart to double-check your project first. That’s where this software comes in! It helps you generate a visual representation of your cutting plan based on the input code you provide.

Easy Setup Process

The setup for Cheewoo Pipe Simulator is quick and easy. You’ll be up and running in no time! The interface is pretty straightforward, which means you won’t run into any issues figuring it out. As soon as you open the program, you're ready to start simulating your cutting jobs.

Working with Code

This software operates based on a specific set of code that you need to input. Make sure your file is in the NC format, which stands for Numerical Control – that's just a fancy way of saying it's standard for CNC machines. Plus, there’s even a sample plan included so you can see how everything works!

Real-Time Preview

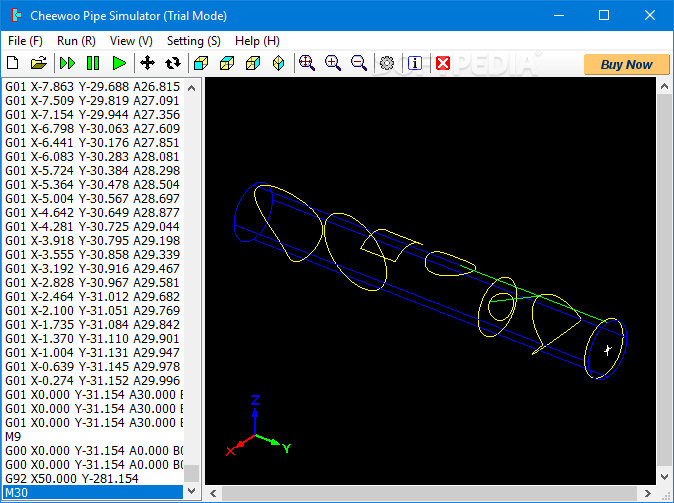

One thing to note is that you can’t edit or remove instructions directly in the app; any changes have to be made outside using a dedicated editor. But once you've got everything set up, just hit start! The application will read your instructions and show you real-time output right in the preview section.

Control Your Simulation

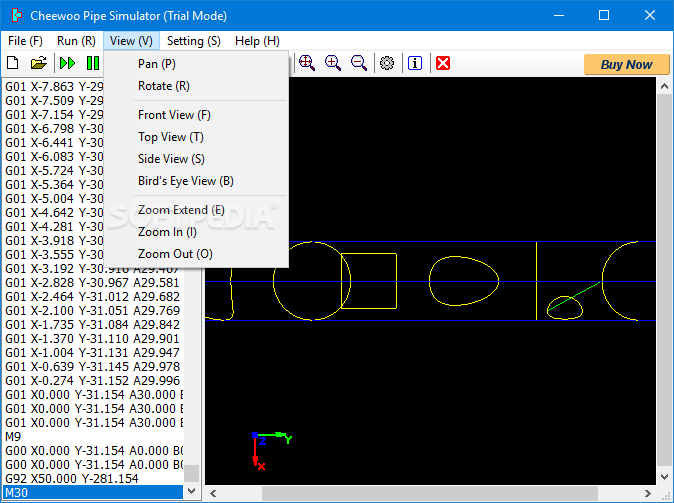

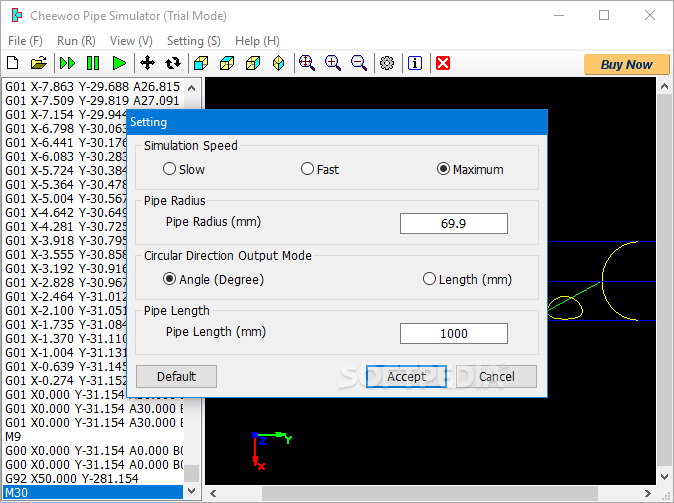

You’ve got control over the simulation too! Feel free to pause or resume whenever you want. You can pan and rotate your object, switch views from front, top, side, or even bird’s eye view—plus zooming in and out is super easy. And if that wasn’t enough, there are several settings to play around with: choose from three different simulation speeds, adjust the pipe radius, select circular direction output mode, and set the pipe length.

A Final Check Before Cutting

In short, Cheewoo Pipe Simulator is an essential piece of the puzzle when designing either simple or complex pipe cutting plans. It takes your set of instructions and tries to build it visually before sending it off to the CNC machine. This way, you'll catch any potential issues ahead of time!
