Indeterminate Beam Analysis Program (IBAP)

So, let’s chat about the Indeterminate Beam Analysis Program (IBAP). This handy tool is made in C++ and is perfect for Civil, Structural, and Mechanical Engineers. It’s also great for students diving into beam design and engineering. Whether you’re working in a professional setting or studying at school, IBAP has got your back!

What Can You Do with IBAP?

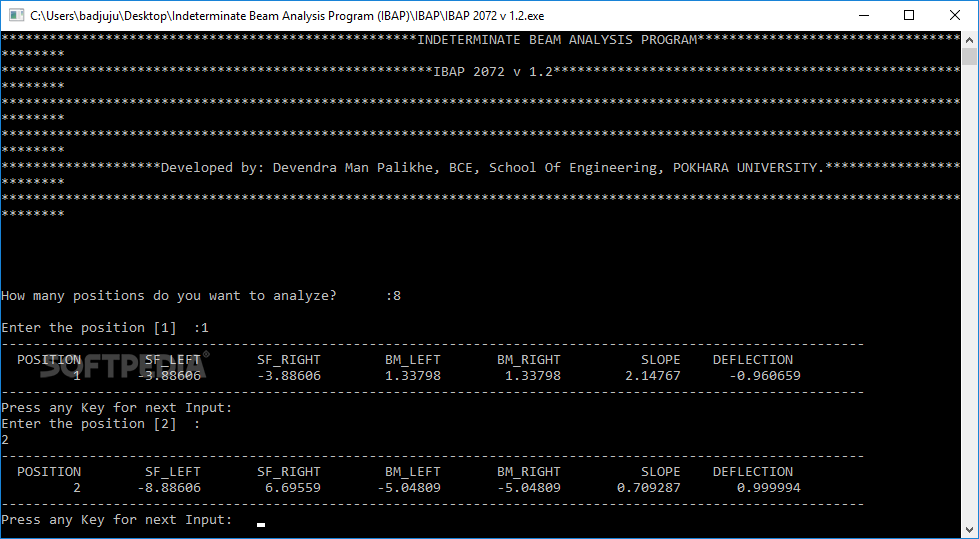

With this software, you can easily calculate important stuff like BM (bending moment), SF (shear force), deflection, and slope. Just a heads up: it runs from the command-line interface. If you're used to pretty graphics, it might take a bit of getting used to.

No Installation Hassle!

The cool part? You don’t need to install anything! Just grab the downloaded files, double-click on the executable, and boom—you’re in a Command Prompt window ready to go! Plus, since it’s lightweight, you can keep IBAP on a USB flash drive. That means you can run it on any PC without breaking a sweat.

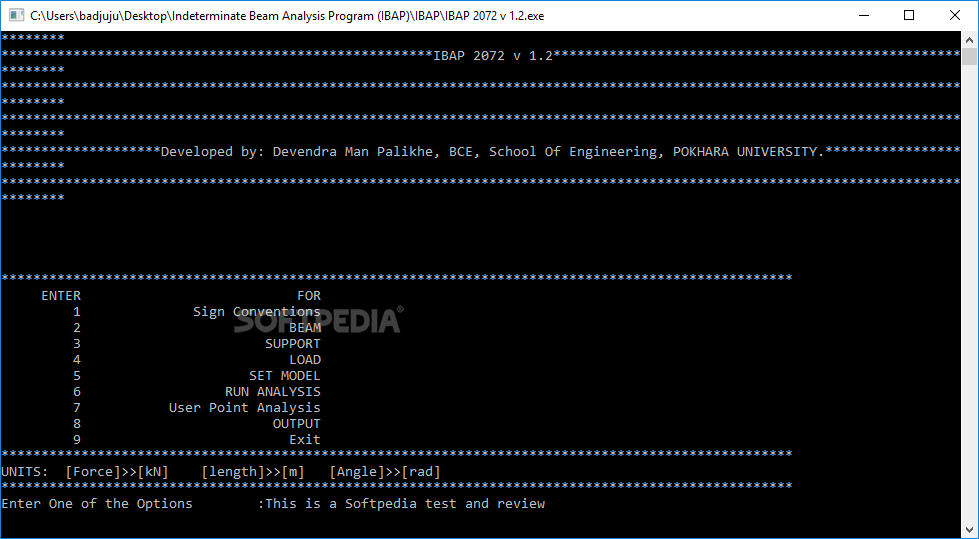

User-Friendly Features

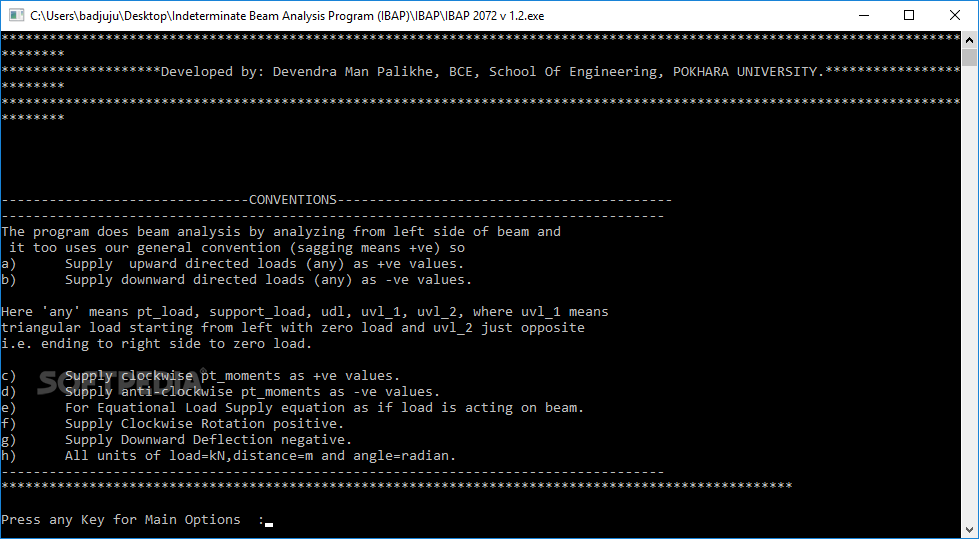

In the main window, you’ll analyze sign conventions and enter loads—whether they go up or down—as +ve or -ve values. Just remember: +ve means sagging! You can also assign various types of loads like pt_load and udl.

Customizing Your Analysis

You can set clockwise moments as +ve values or counterclockwise as -ve. The program understands that clockwise rotation is positive while downward deflection is negative. And don’t worry about measurements; all units are supported: load=kN, distance=m, and angle=radian.

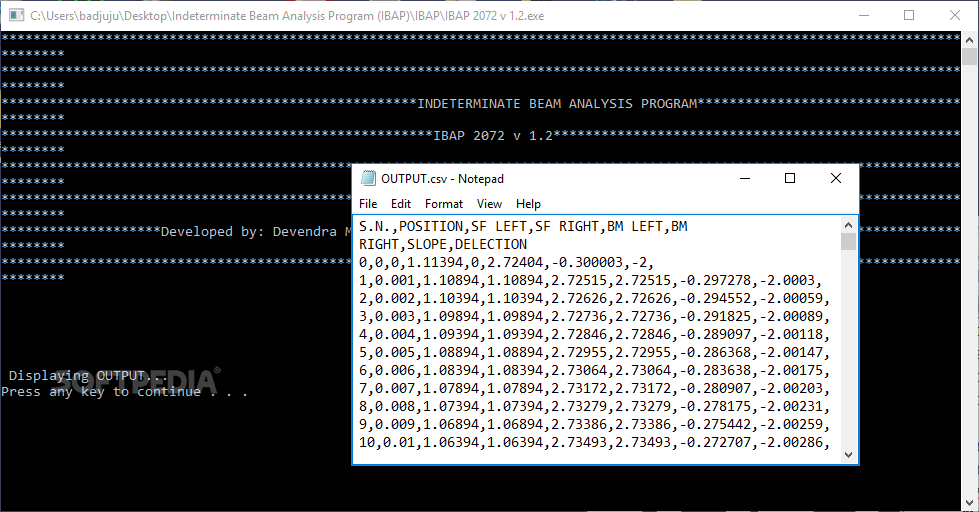

Your Output Awaits

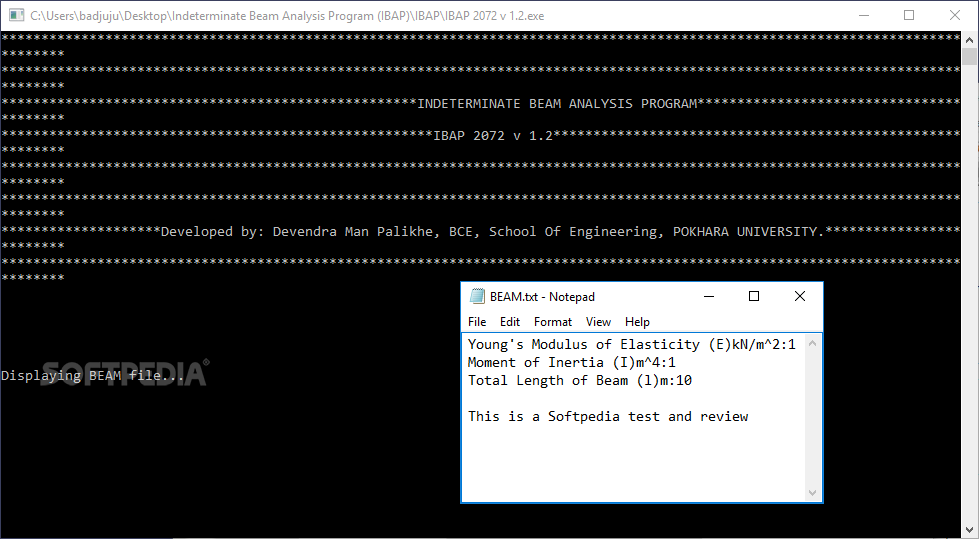

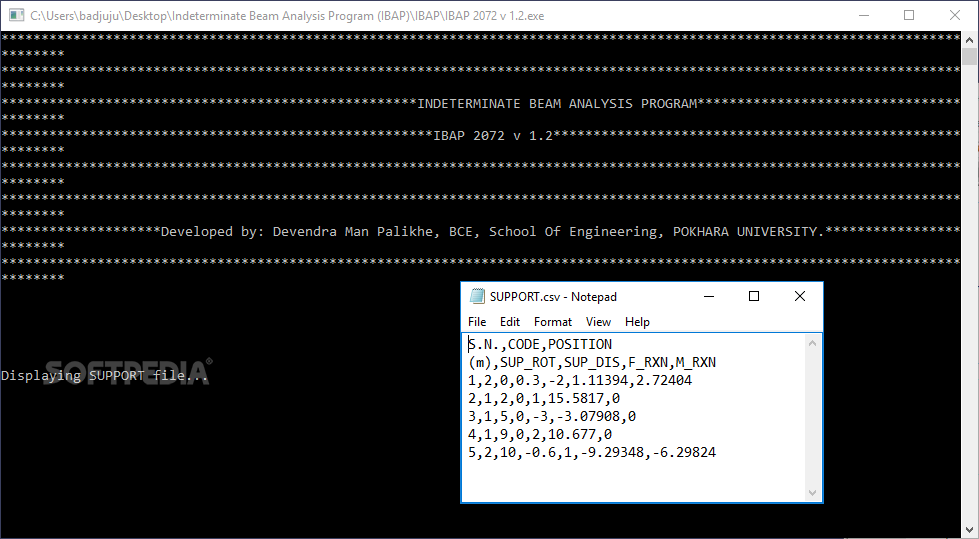

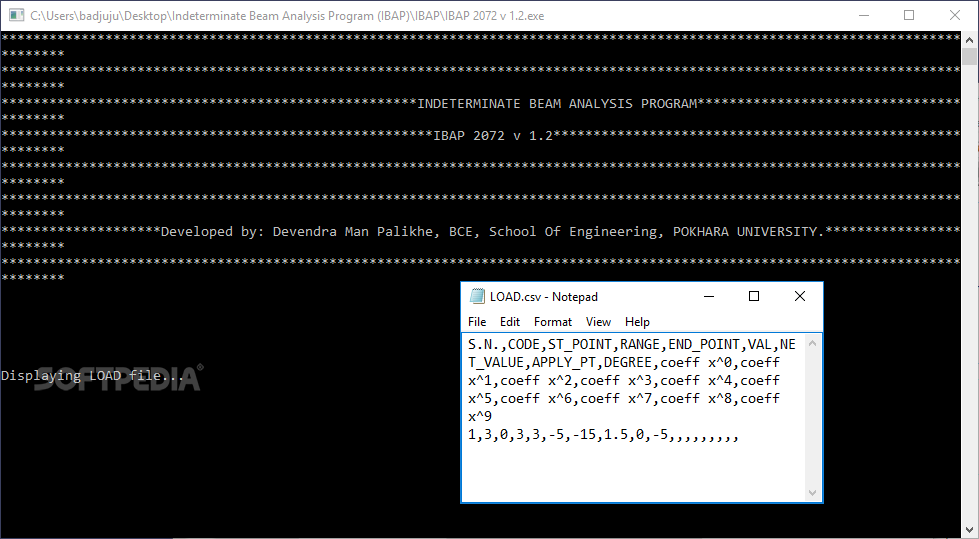

Once you run your analysis, your beam file opens automatically in your default text editor. From there, you can calculate Young's modulus of elasticity, moment of inertia, and total length of the beam. You can also check out support and load files in CSV format.

A Smooth Experience

We’ve tested IBAP thoroughly and found no issues at all—it barely impacts computer performance! Overall, if you're into structural beam analysis, this program offers straightforward commands that make everything easy to handle. And don’t forget—there's help documentation included if you need it!

If you're interested in downloading IBAP for yourself, check it out here!
