Inductance Calculator - Efficient Tool for Coil Dimension Calculations

Looking for a reliable application to calculate coil dimensions with precision? Inductance Calculator download offers a comprehensive solution for engineers, electronics enthusiasts, and professionals. This lightweight Windows CAD application helps you calculate the electrical self-inductance of various air core coils with different shapes and sizes directly from your command-line console.

Key Features and Benefits

The Inductance Calculator download provides an intuitive interface through the command-line console, making complex calculations accessible even for users with limited experience in command-line operations. This powerful utility requires no installation and can be deployed instantly on any Windows system.

Unlike similar coil calculation software, Inductance Calculator operates with remarkable efficiency while maintaining high precision in its calculations. The tool implements formulas from the National Bureau of Standards publications, ensuring reliability for engineering and design projects that demand accuracy.

Portable Design with Zero Footprint

One of the standout advantages of this coil calculation tool is its complete portability. When you download Inductance Calculator, you'll appreciate several system benefits:

• No registry modifications or entries that could affect system performance


• Can be stored and run from any USB flash drive or portable storage device


• No administrative privileges required for execution on target computers


• Simple removal process - just delete the downloaded files

This zero-footprint approach makes it an ideal companion for engineers who work across multiple systems or need to perform coil calculations in various environments without leaving any traces on host computers.

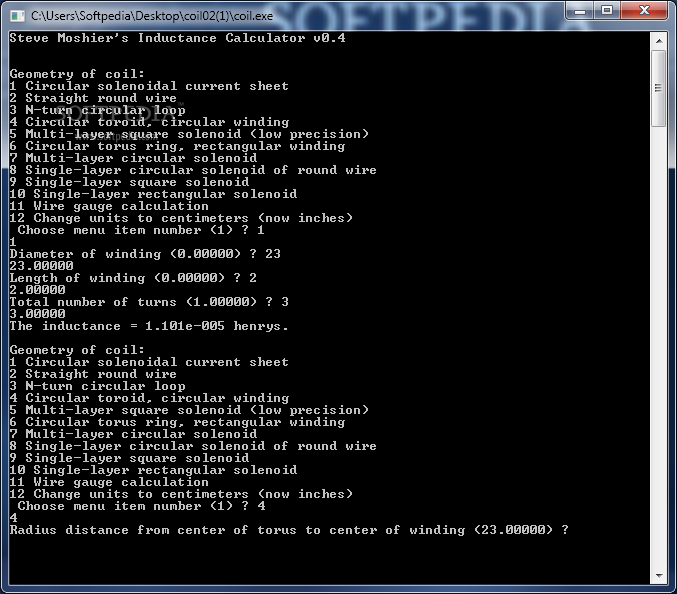

Supported Coil Geometry Options

The Inductance Calculator software download supports an extensive range of coil geometry models to accommodate various design requirements. Each geometry type offers specialized parameters for precise calculations.

• Circular solenoidal current sheet


• Straight round wire


• N-turn circular loop


• Circular toroid and circular winding


• Multi-layer square solenoid (low precision)


• Single-layer circular solenoid of round wire


• Single-layer square solenoid


• Single-layer rectangular solenoid


• Wire gauge calculation

Additionally, the application allows you to select dimensions in either inches or centimeters, providing flexibility for users working with different measurement systems across international projects.

Customizable Configuration Parameters

Depending on your selected coil geometry model, the coil calculator requires specific input parameters to perform accurate calculations. These parameters might include:

• Mean diameter (arithmetic average of inner and outer winding diameters)


• Total winding length


• Winding thickness


• Total number of turns


• Wire gauge specifications


• Core dimensions and properties

After providing the necessary parameters, the utility quickly calculates inductance values displayed in henry (H) units. The interface allows you to loop back for additional calculations without restarting the application, streamlining workflow for multiple design iterations.

Calculation Methodology and Accuracy

When you download the Inductance Calculator tool, you're getting access to sophisticated calculation algorithms based on established engineering principles. All calculations operate on the assumption that both core material and wire are non-magnetic, which is suitable for most standard applications.

For multi-layer circular solenoids, the formulas are directly implemented from National Bureau of Standards publications, making them appropriate for arbitrary winding thickness and length calculations. This approach ensures that engineers and designers can rely on the results for practical applications.

User-Friendly for All Experience Levels

Despite operating through a command-line interface, the coil inductance calculator is designed with user accessibility in mind. The program guides users through parameter input with clear prompts, eliminating the need for complex command-line argument knowledge or extensive technical experience.

This thoughtful design makes the software suitable for:

• Professional electrical engineers


• Electronics hobbyists and enthusiasts


• Students learning about inductance principles


• DIY coil builders and makers


• R&D professionals developing electronic components

System Requirements and Compatibility

The air core inductance calculator features minimal system requirements, making it compatible with virtually any Windows environment. Its lightweight nature ensures smooth operation even on older or less powerful computers.

• Operating System: Windows XP/Vista/7/8/10/11


• Disk Space: Less than 1MB


• RAM: Minimal requirements (runs efficiently with any standard configuration)


• Additional Software: No dependencies or additional libraries needed

Whether you're an engineer needing quick coil calculations or a student learning about inductance principles, the Inductance Calculator download provides a reliable, efficient, and accurate solution for all your coil dimension calculation needs. With its portable design, comprehensive geometry options, and user-friendly interface, it's the perfect addition to your engineering software toolkit.
