KeyCreator Viewer

CAD files, depending on the inherent complexity of the constituent models and parts can be difficult to render and interrogate fast, especially when multi-file sessions are required. The need for quick and effective CAD viewers is ever-growing among designers or architects who only need to analyze the files and not tamper with their “inners”. KeyCreator Viewer will provide a consistent platform for KeyCreator users to view and inspect proprietary CKD files with ease.

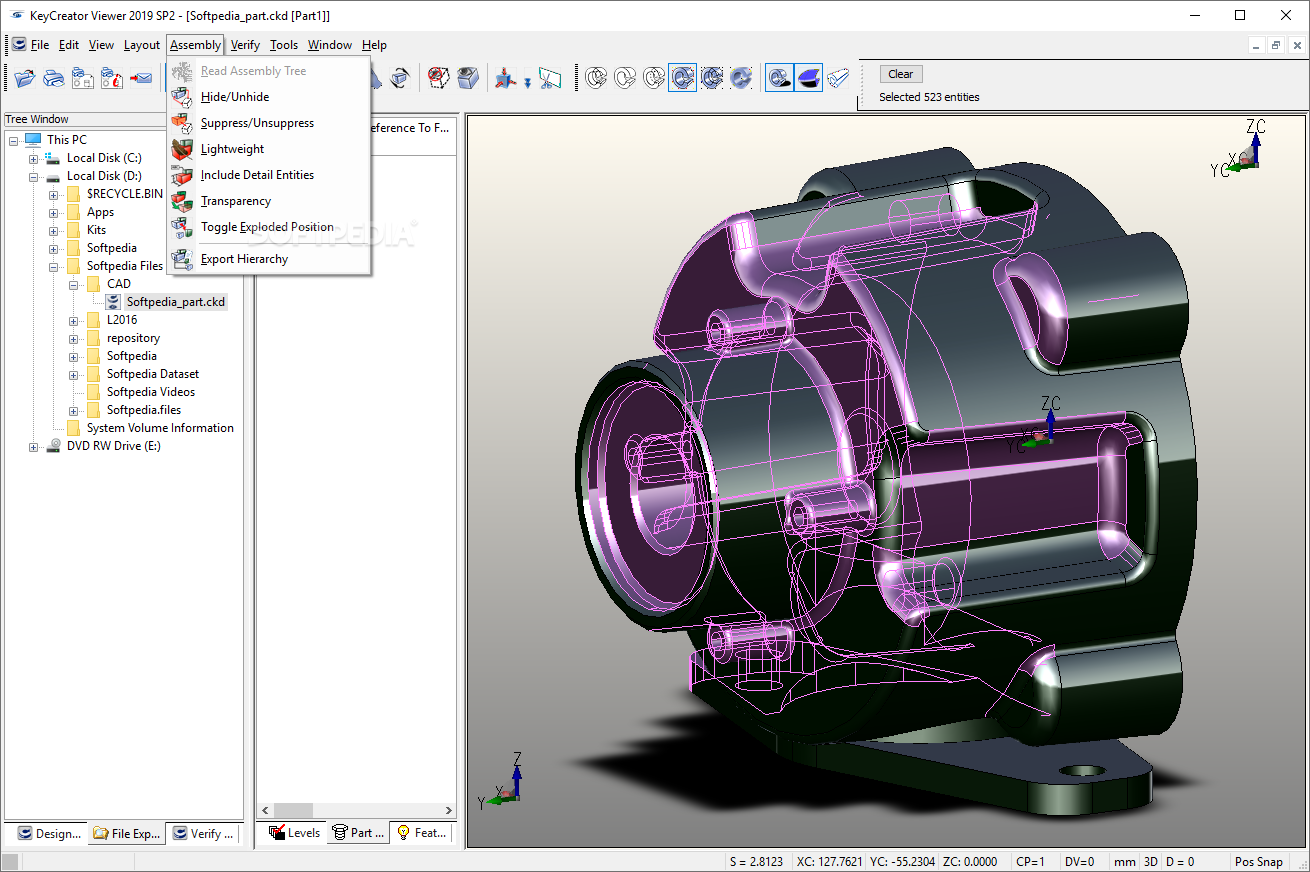

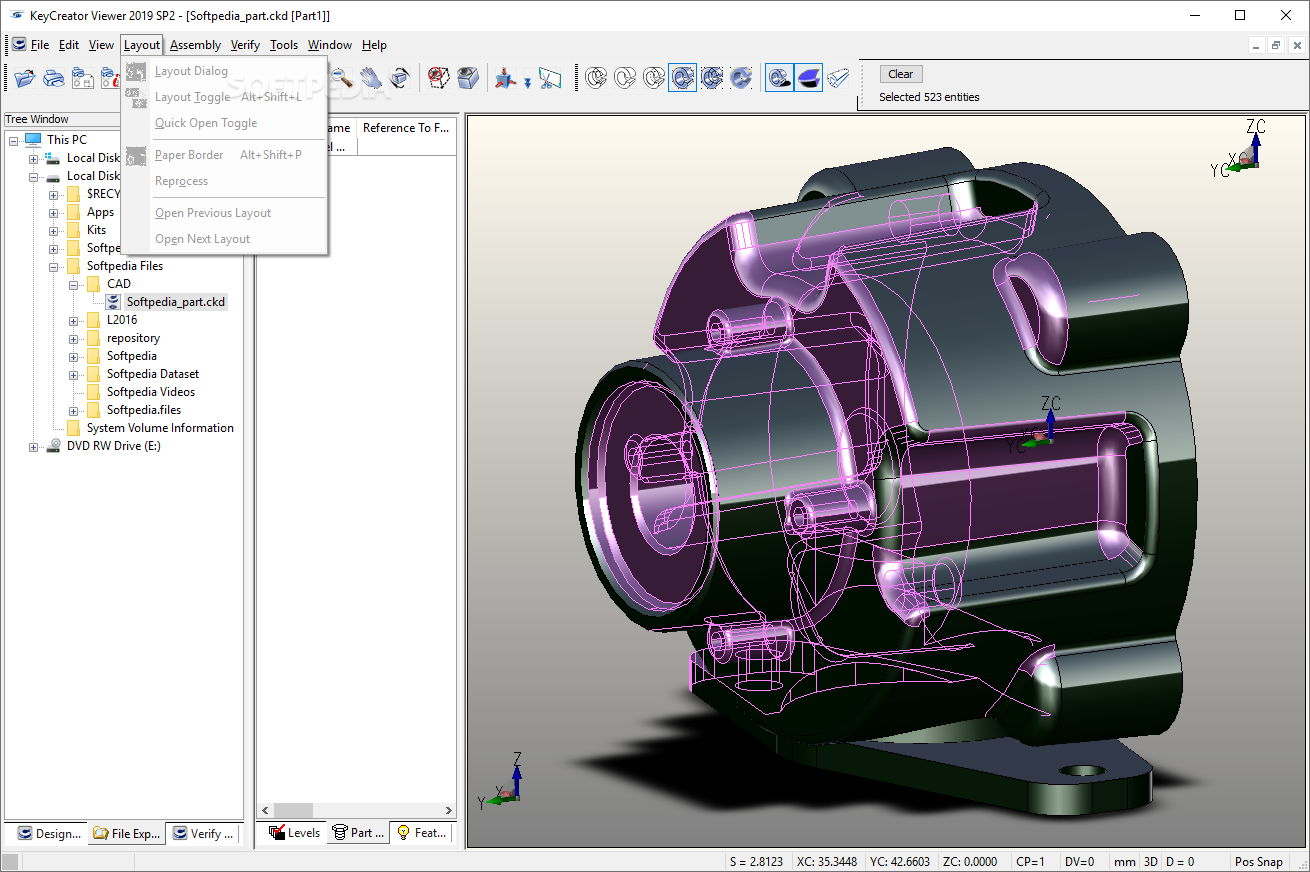

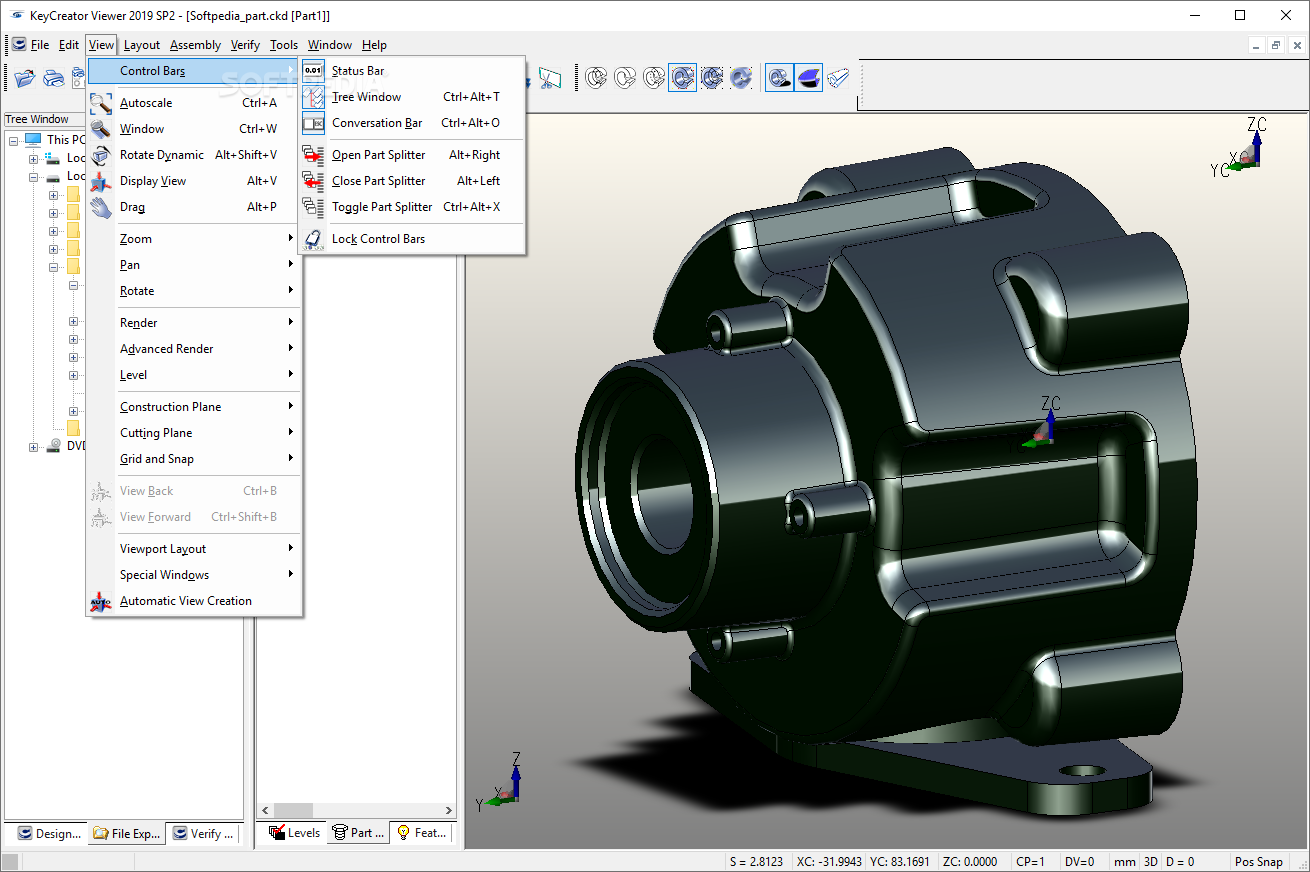

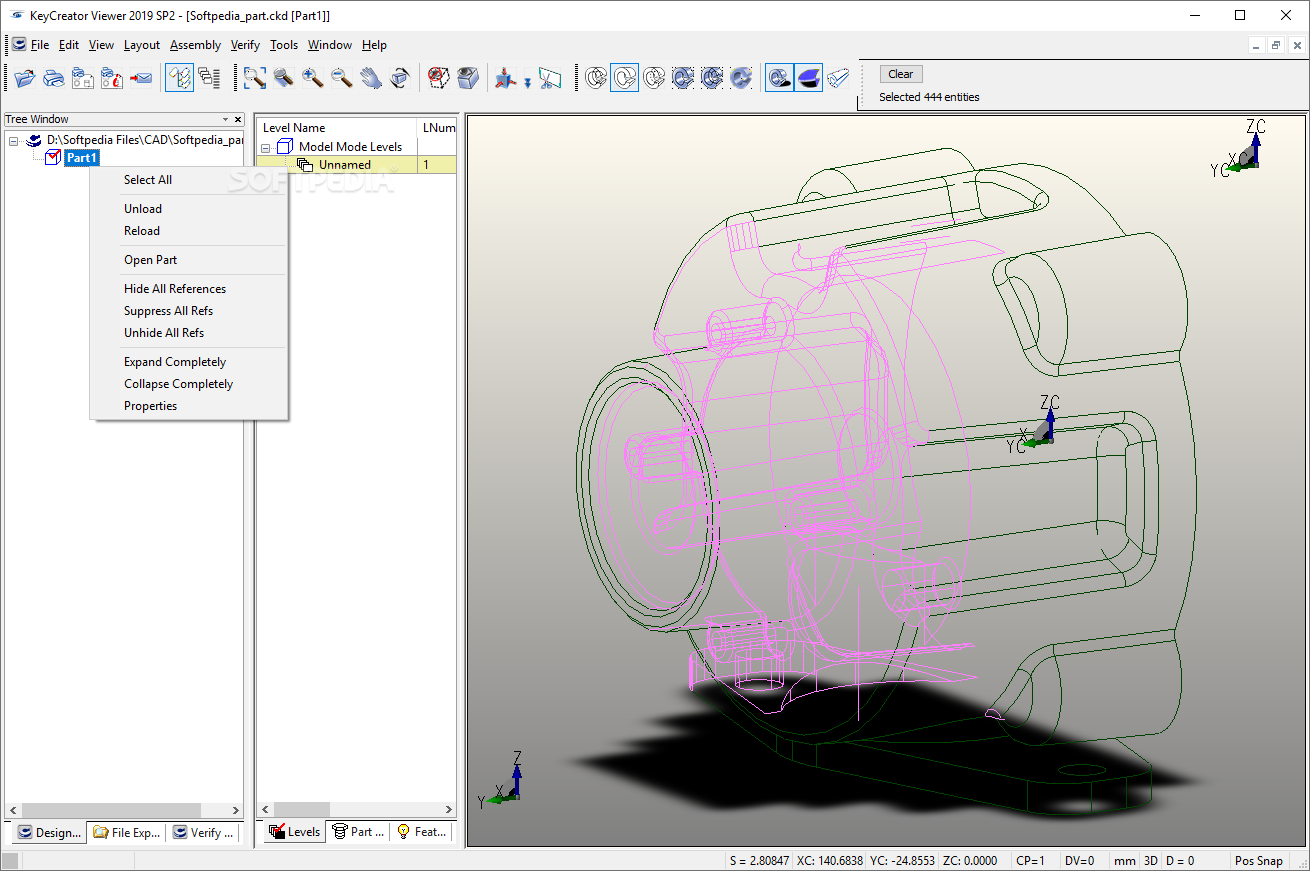

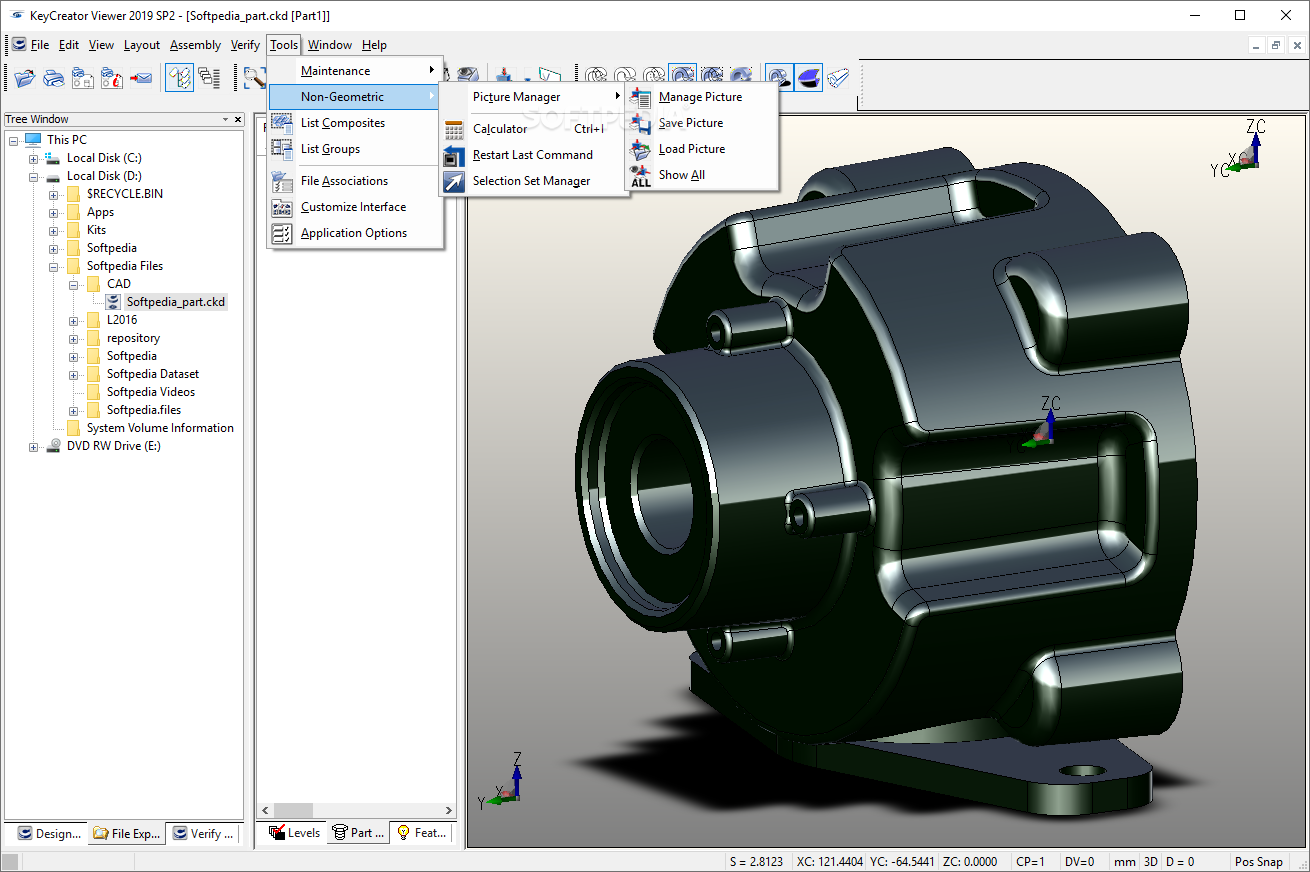

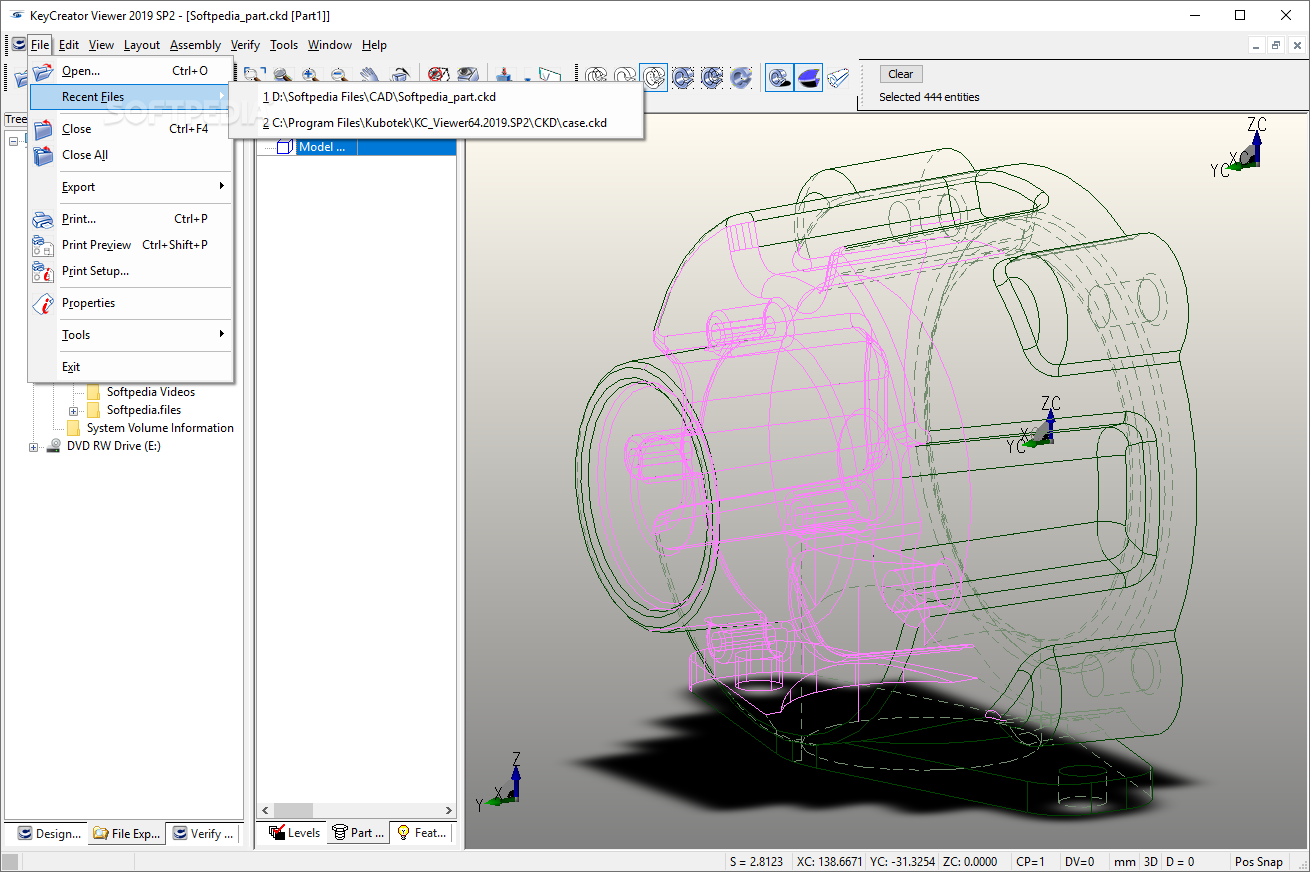

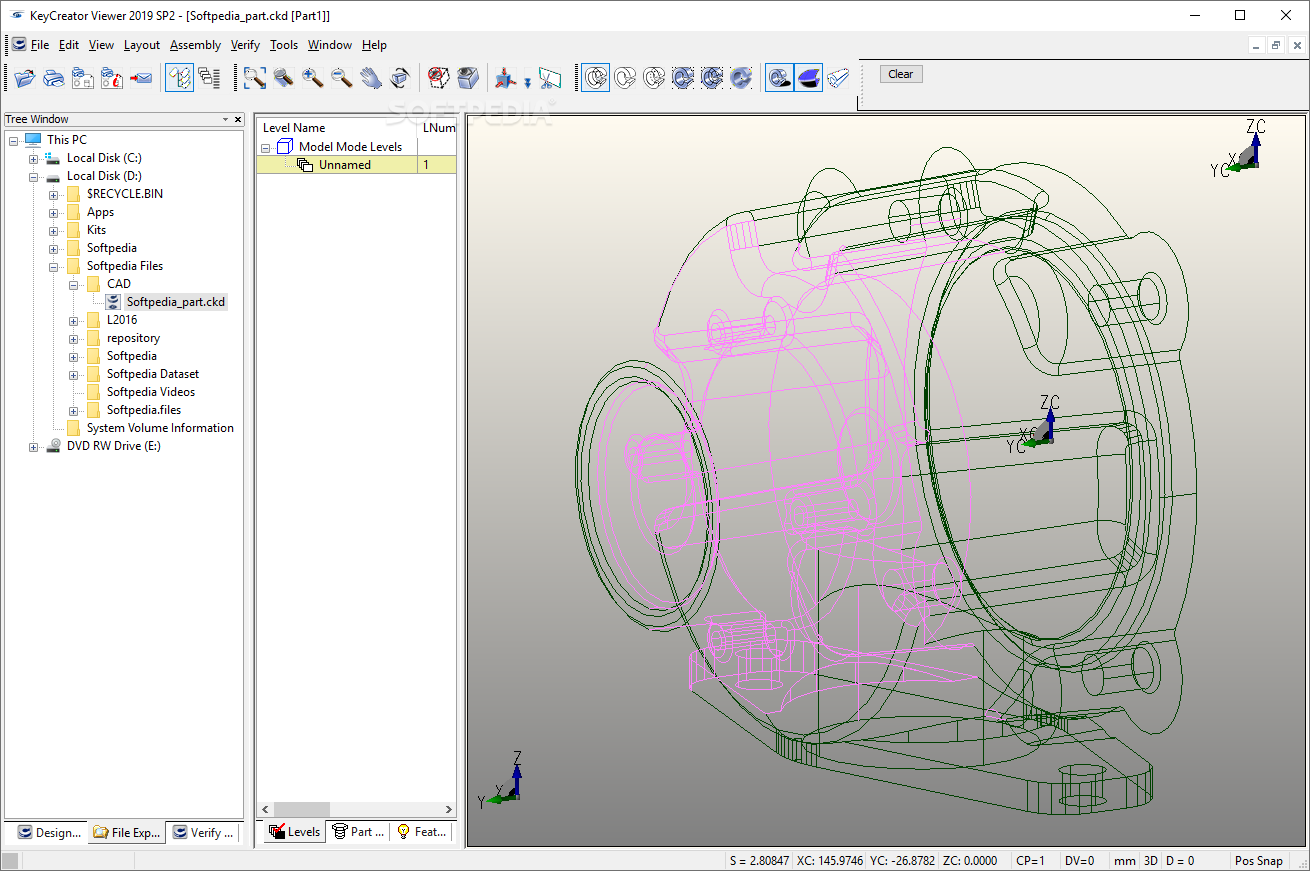

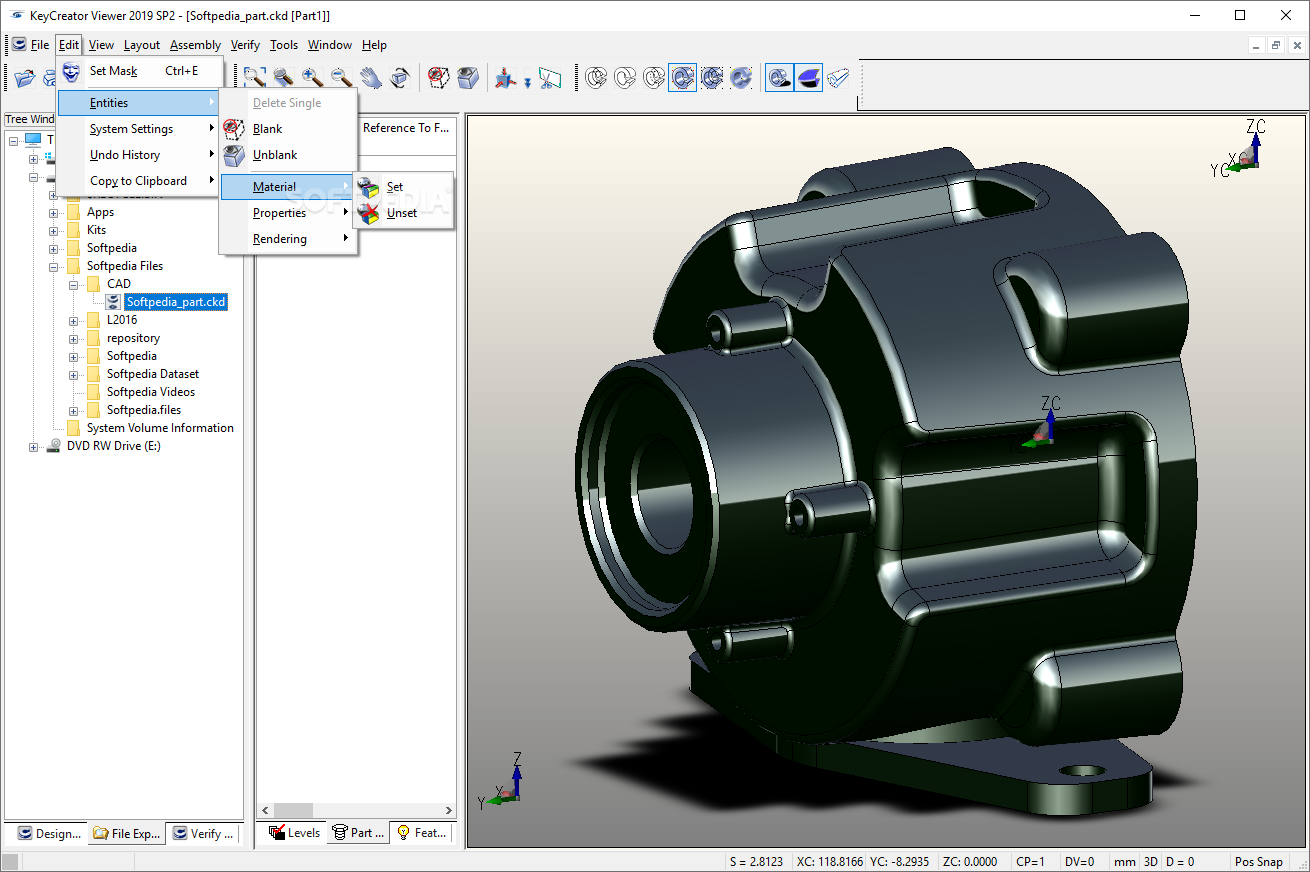

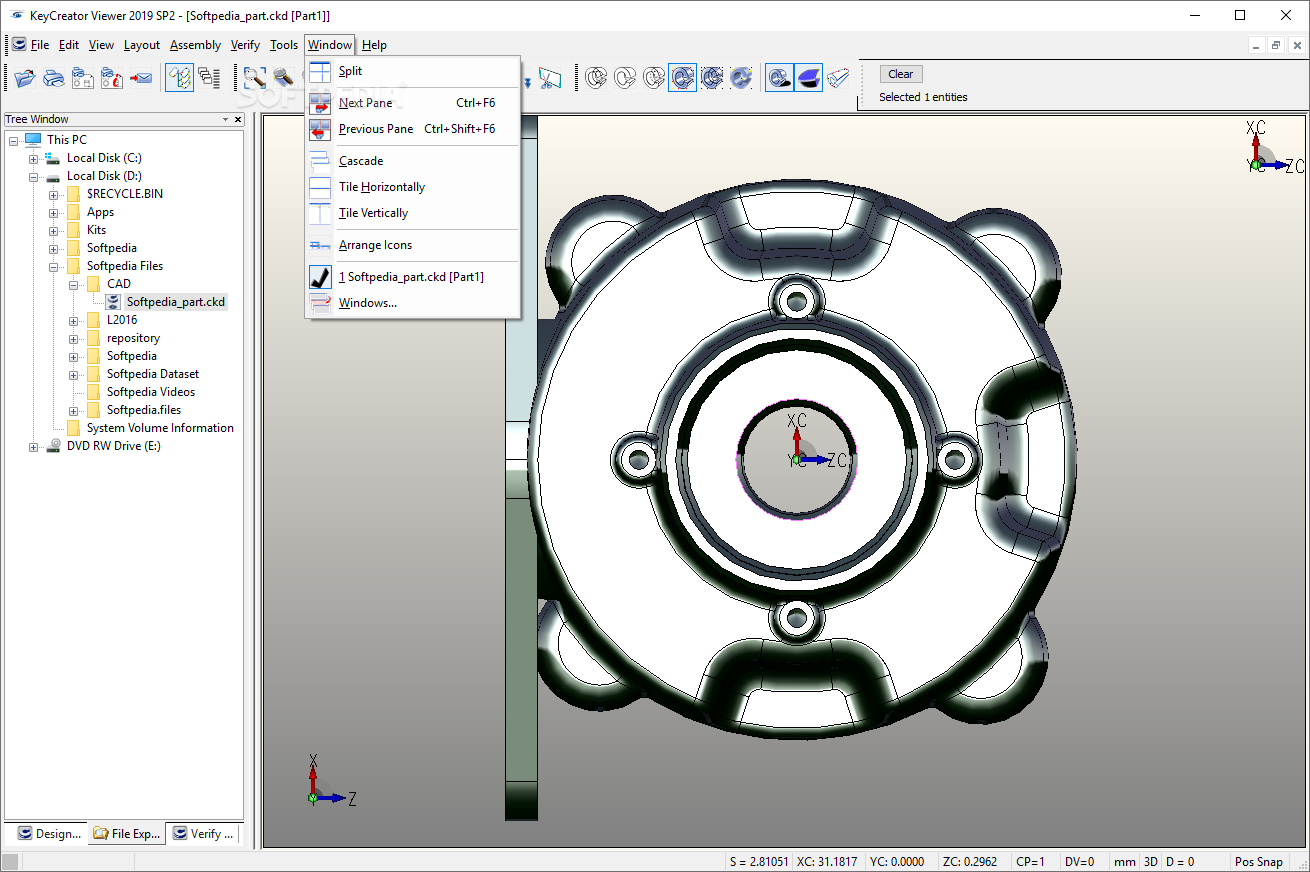

Right away, after the quick setup process, the app will greet users with a well-structured interface that beside the main viewing area offers two useful panels. One panel is used for file browsing and the other one for viewing the internal model structure.

So far, upon inspection there aren’t much differences when compared to similar CAD viewing apps, but where KeyCreator Viewer excels is at the amazing processing speed. Basically all operations take place instantaneously and during our tests we were pleased to experience flawless performance from the app.

Since this is a viewer app, users will not be able to induce any changes to the CAD files but there are exporting capabilities present, just in case one wishes to detach a certain model part of save a screenshot for a particular element.

The measuring features alone are impressive and offer options such as two positions, position to entity, minimum distance or thickness to name a few.

If you are looking for a nimble CAD file viewer as a sidekick for your KeyCreator CAD suite, this might very well be the ideal candidate. Thanks to a very lightweight package that boasts a fast, lag-free handling, this program makes CAD file analysis much easier.
