Moxon Rectangle Generator

Moxon Rectangle Generator is a small, handy app that helps you create and print models for 50-ohm Moxon Rectangle antennas based on your settings. Pretty cool, right?

Easy to Use and Portable

One of the best things about this software is that you don’t need to install it! Just grab the program files and put them anywhere on your hard drive. When you want to use it, just click the .exe file, and boom, you're in! You can even save it to a USB drive so you can run it on any computer without any hassle. Plus, it doesn’t mess with your Windows registry.

User-Friendly Interface

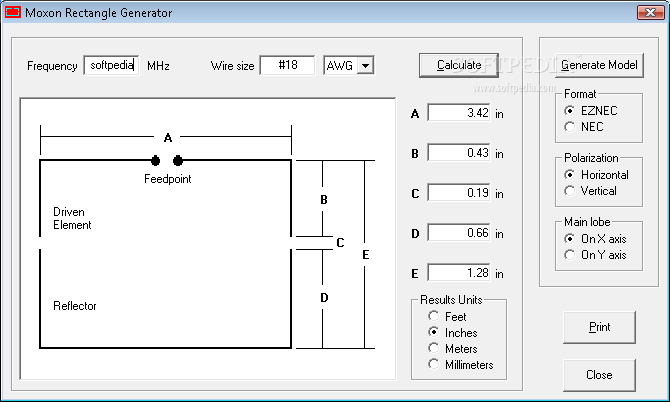

The interface looks pretty basic but is super easy to navigate. You’ll see a simple window where you can check out the default rectangle drawing right away. From there, you can adjust the size of each side and pick your measurement units – whether that’s feet, inches, meters, or millimeters.

Customize Your Settings

You have options! You can set the frequency, wire size, output file format (like EZNEC or NEC), and choose between horizontal or vertical polarization. You also get to decide where the main lobe will be located—on either the x or y axis.

Quick Model Generation

After setting everything up, generating your model is super quick! Just pick a name for your output file and choose where to save it. If you're in a hurry, you can even print directly without previewing it first. Just keep in mind that there aren’t many extra features here.

Stable Performance

In our tests, Moxon Rectangle Generator performed really well! It didn’t freeze up or crash at all. The models were generated quickly and it was light on system resources too!

Final Thoughts

To wrap things up, this little utility has all the basics needed for generating and printing antenna models. While it might not have tons of fancy features—especially since it hasn’t been updated in a while—it gets the job done!
