ProfiLab Expert

 ProfiLab Expert is an advanced software application designed to help you create and design digital or analog measuring technology projects.

The installation procedure is a fast and simple job that shouldn't impose any difficulties. The tool is wrapped in a professional-grade interface represented by a large window with a clear-cut structure, where you can immediately start working on a new project.

You can explore all available categories with components that you can easily insert into your design via drag-and-drop support, such as control elements (display, analog and digital controls, plots, clocks), logic modules (e.g. arithmetic, decoder, flip flops), analog components (e.g. calculation, multiplexer, sources, controllers), hardware (e.g. MIDI, data translation), macros, and others (e.g. file access, hotkeys, strings).

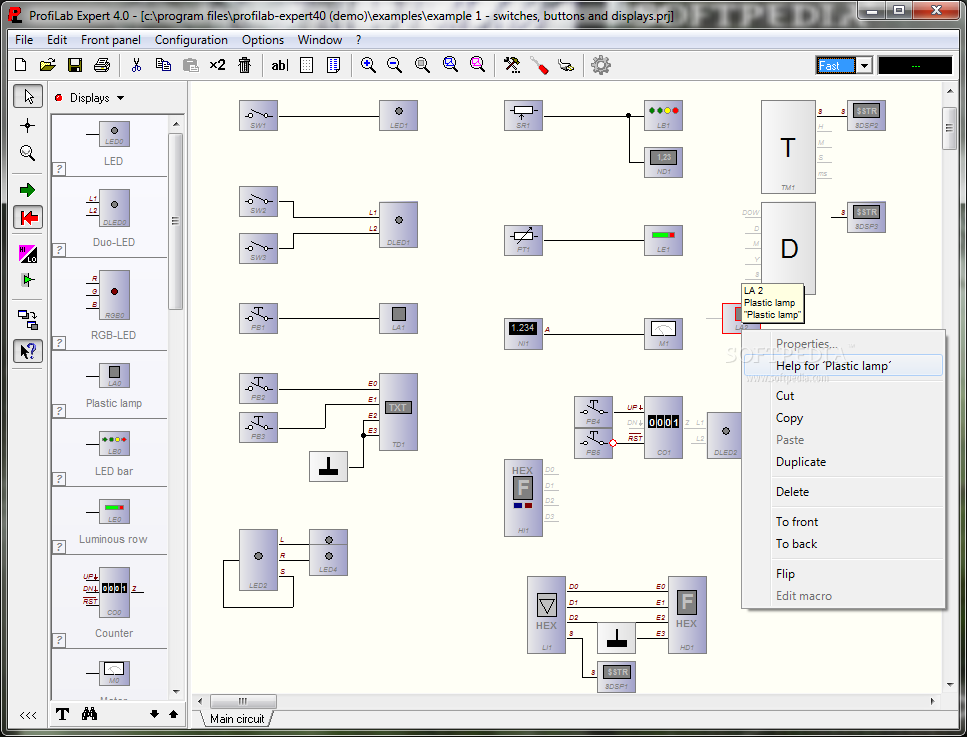

It's possible to edit the properties of components and macros, cut, copy, paste, duplicate and flip objects in the design, bring them to the front or send them to the back, establish connections between the modules, zoom in and out, start and stop the simulation, as well as show the wire and pin status.

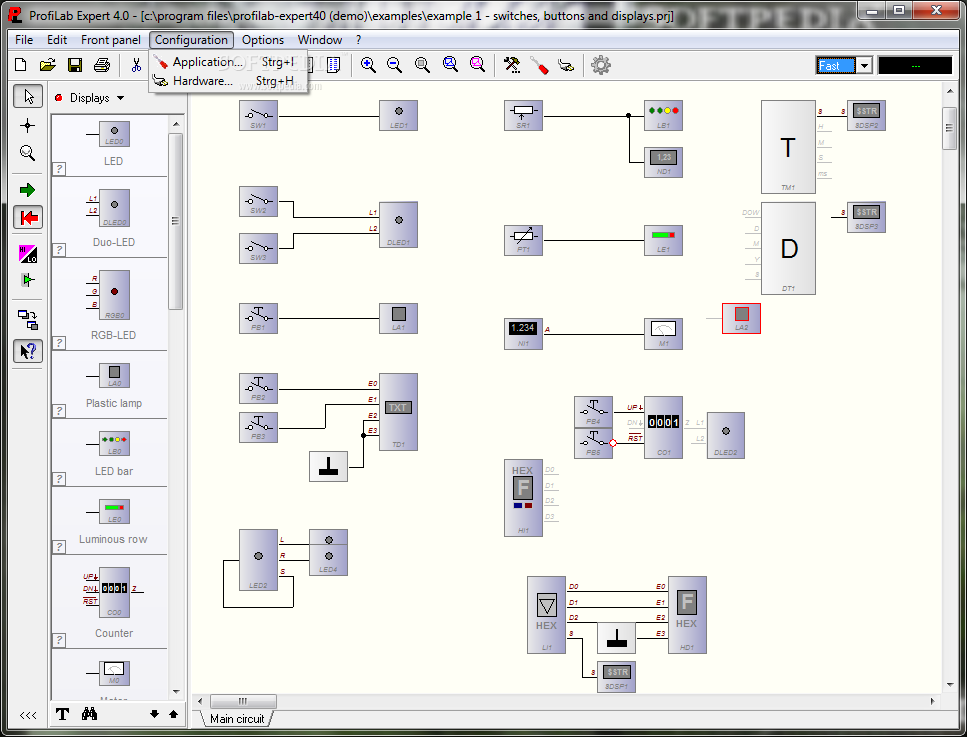

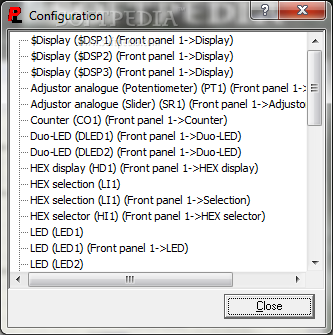

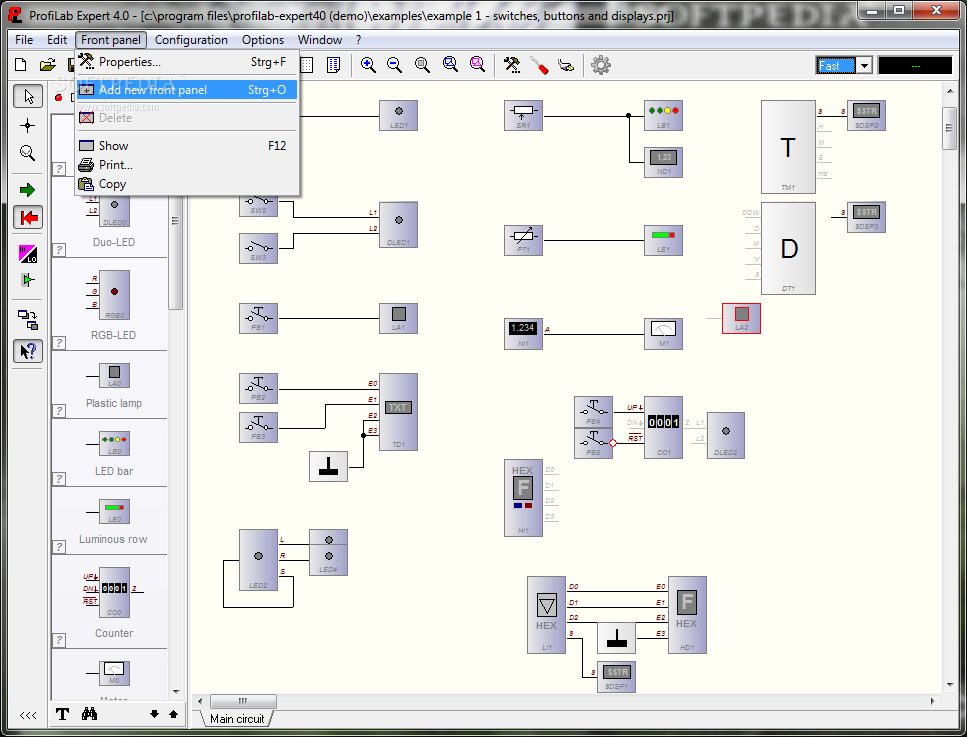

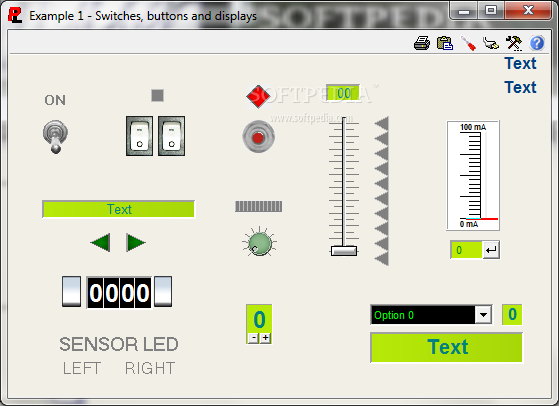

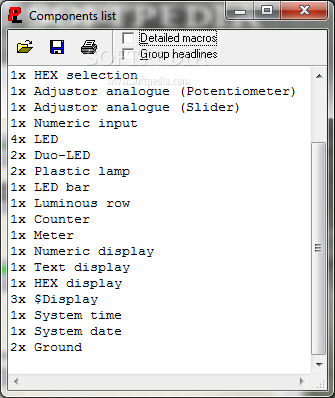

You can view the front panel, customize its frame and background, and add labels, shapes, frames, bitmaps or scales. It can be copied to the Clipboard as an image or directly printed. Moreover,  ProfiLab Expert lets you edit each macro pin, view and modify hardware devices, show a grid for the design, and check out a list with all components, including detailed macros and grouped headlines.

We haven't encountered any unpleasant surprises in our tests as far as stability goes, thanks to the fact that the app didn't hang, crash or display error messages. It used a decent amount of CPU and RAM.

To sum it up,  ProfiLab Expert provides experienced users with intuitive and approachable tools for designing digital and analog measuring technology projects.
