Smith Chart

Smith Chart is a lightweight Windows application that's perfect for anyone looking to edit Smith charts. Whether you're a student or a professional, this tool is made just for you!

Java-Based Tool

Since it's built on Java, you'll need to have the right environment set up on your computer before using it. If you haven't installed that yet, no worries! Just grab it first so you can run this cool tool.

Portable and Easy to Use

This program is portable, which means it won't leave any traces behind in your Windows Registry. You can easily copy Smith Chart onto a USB flash drive or any other device. Take it with you anywhere! This way, you can modify those Smith charts without having to go through any lengthy installation steps.

Straightforward Layout

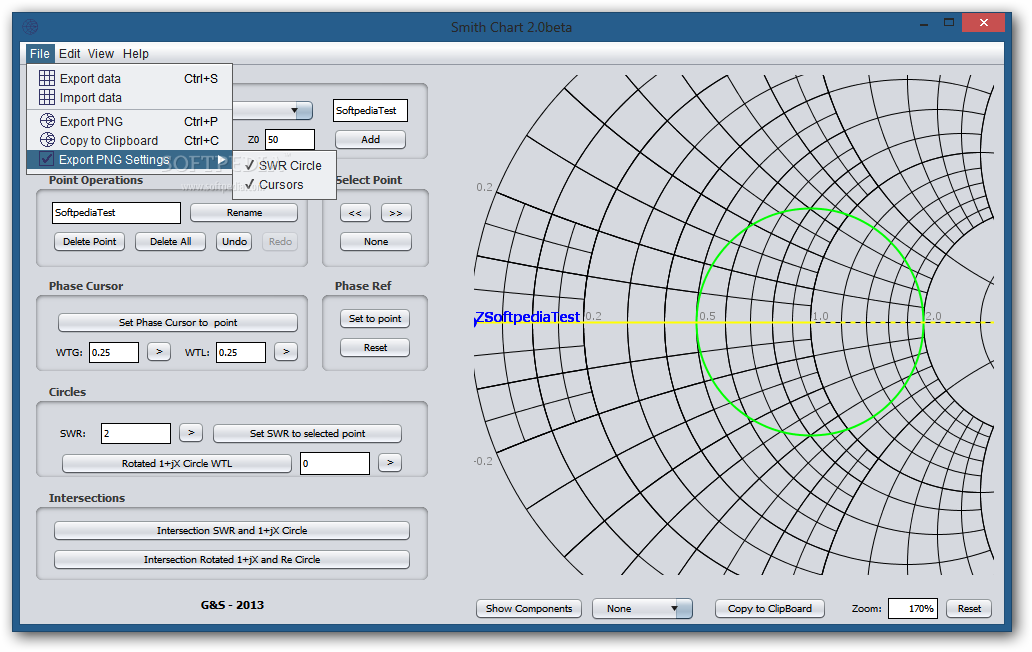

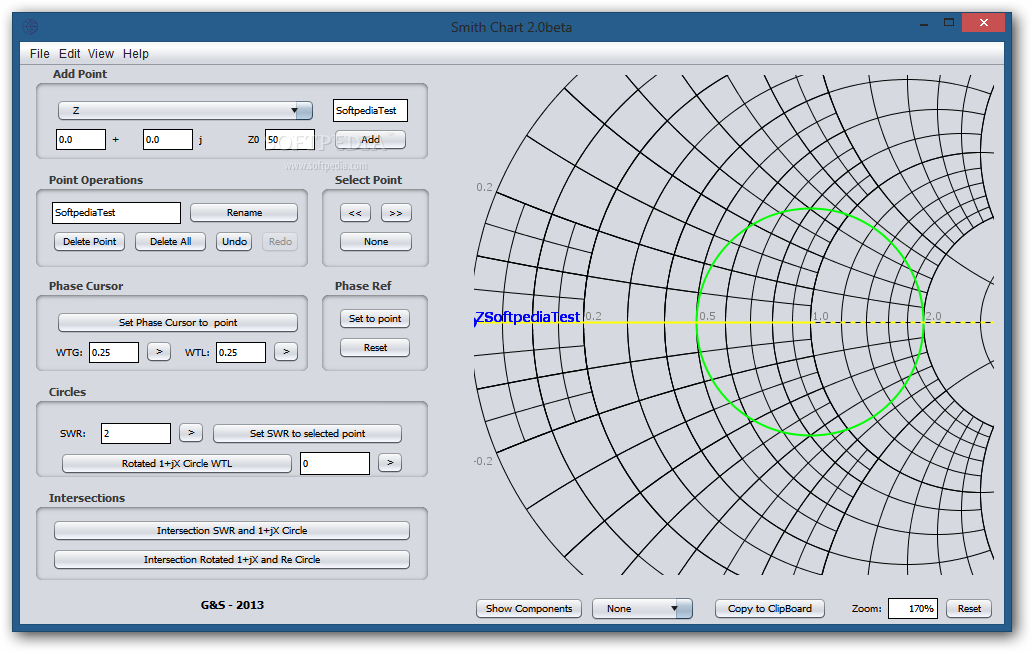

The layout of Smith Chart is super clean and simple. It allows you to configure settings with minimal effort. You'll see the Smith chart displayed prominently on the main panel. From there, you can insert points, rename them, or even delete all of them with just one click!

User-Friendly Features

You can also undo or redo actions and select specific points easily. Plus, setting up parameters related to SWR circles is a breeze! Other handy features include showing or hiding components, copying charts to your clipboard, exporting them as PNG files, and zooming in or out as needed.

Performance Review

During our tests, we found that this tool works quickly and provides high-quality images without any errors popping up during use. However, like many Java tools out there, keep in mind that it might use up some CPU and memory resources. So your system performance could take a bit of a hit while it's running.

Your Go-To Tool!

In conclusion, Smith Chart offers a solid set of features for modifying Smith charts easily and effectively. It's suitable for everyone—no matter how experienced you are!
